SGM4516.pdf
No.11145
● Dual Supply Range: ±2.7V to ±12V
● Single Supply Range: 2.7V to 24V
● Low On-Resistance for Dual NO to COM Switches: 1Ω (TYP)
● On-Resistance for Dual NC to COM Switches: 11Ω (TYP)
● VEE to VCC Rail-to-Rail Low Distortion Signal Passing
● VEE Can be Connected to Negative Power Supply or GND
● Fast Switching Times
● High Off-Isolation
● Very Low Crosstalk
● 1.8V Logic Compatible Control Pin
● Break-Before-Make Switching
● -40℃ to +85℃ Operating Temperature Range

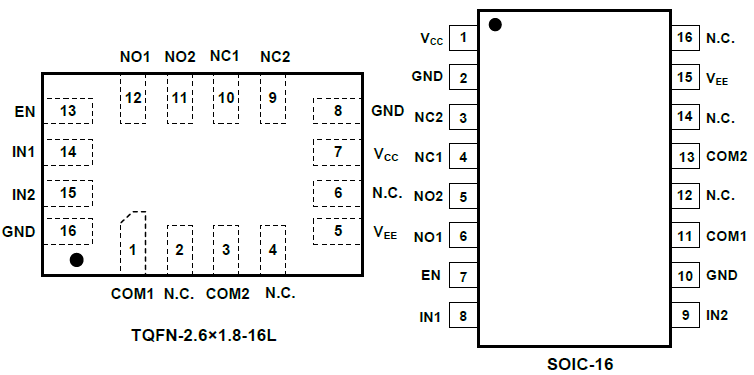

● Available in Green TQFN-2.6×1.8-16L and SOIC-16 Packages
The SGM4515 is a high voltage, rail-to-rail signal passing, dual single-pole/double-throw (SPDT) analog switch that is designed to operate for single power supply or dual power supply. Targeted applications include battery powered equipment that benefit from the SGM4515’s low 1Ω (TYP) on-resistance for dual NO to COM switches, and 11Ω (TYP) on-resistance for dual NC to COM switches.

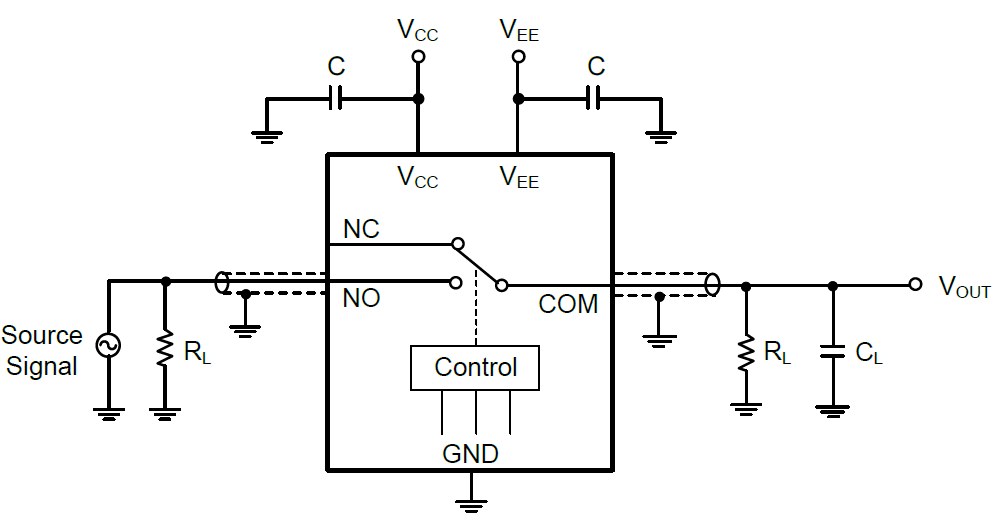

The SGM4515 is a committed dual single-pole/double- throw (SPDT) switches that consist of two normally open (NO) and two normally closed (NC) switches. This configuration can be used as a dual 2-to-1 multiplexer.
The SGM4515 can pass VEE to VCC wide range rail-to-rail signals with very low distortion.
The SGM4515 is available in Green TQFN-2.6×1.8-16L and SOIC-16 packages. It operates over an ambient temperature range of -40℃ to +85℃.
