SGM4512.pdf
No.11146
● ±20V Supply Voltage Rating
● 1.8V Control Logic
● Low On-Resistance: 22Ω
● Single Supply Operation Possible
● Fast Switching Time tON 40ns
● Low Charge Injection: 15pC
● Simple Logic Interface
● High Accuracy
● Minimum Transients
● Reduced Power Consumption
● -40℃ to +85℃ Operating Temperature Range

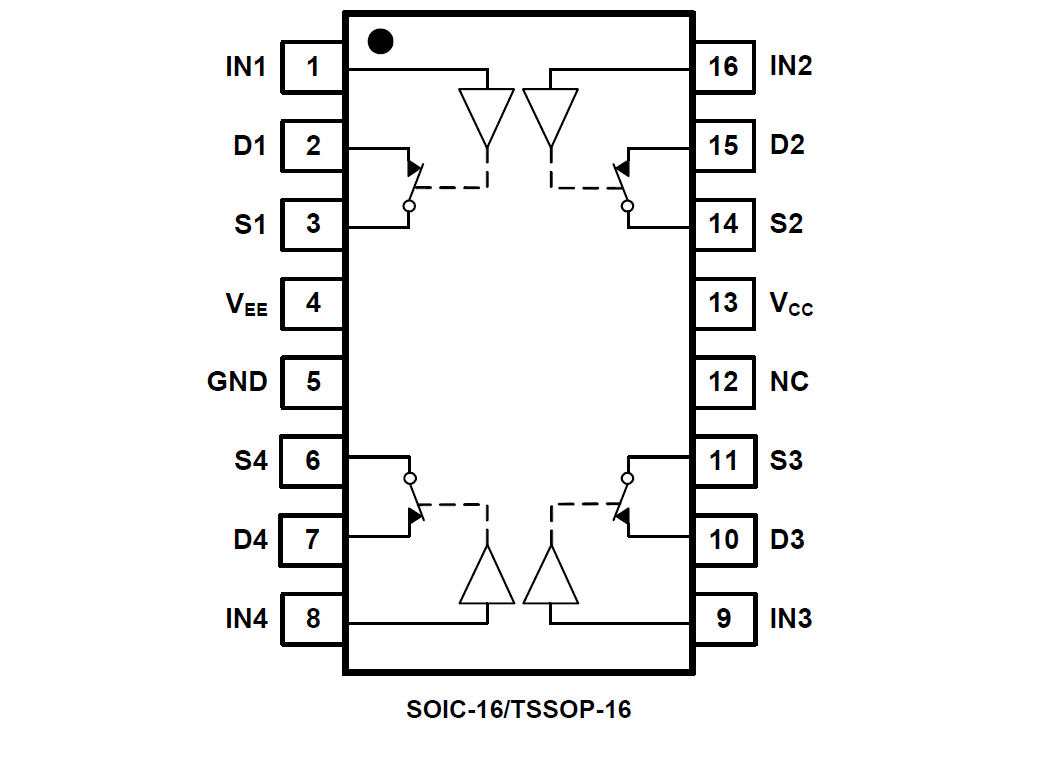

● Available in Green SOIC-16 and TSSOP-16 Packages

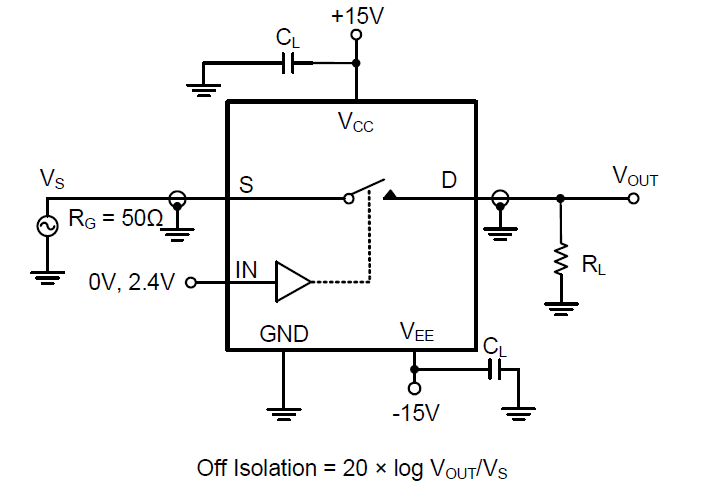

The SGM4511 and SGM4512 are low cost, CMOS monolithic, quad single-pole single-throw (SPST) analog switches. These can be used in general purpose switching applications for telecommunications, instrumentation, process control, computer peripheral equipment and etc. An improved charge injection compensation design minimizes switching transients. The SGM4511 is a normally closed switch and the SGM4512 is a normally open switch.
The SGM4511 and SGM4512 can be continuously operated with power supplies ranging from ±4.5V to ±20V, and have an improved continuous current rating of 30mA. Both devices provide true bidirectional performance in the ON condition and will block signals to the supply levels in the OFF condition.
SGM4511 and SGM4512 are available in Green SOIC-16 and TSSOP-16 packages. They are specified -40℃ to +85℃ temperature range.
