SGM44602.pdf
No.11149
● Low Voltage Operation: 1.8V to 5.5V
● Low On-Resistance: 4Ω (TYP)
● Low On-Resistance Flatness
● -3dB Bandwidth: 300MHz
● High Off-Isolation: -75dB at 1MHz
● Low Crosstalk: -100dB at 1MHz
● Rail-to-Rail Input and Output Operation
● Typical Power Consumption (< 0.01μW)
● TTL/CMOS Compatible

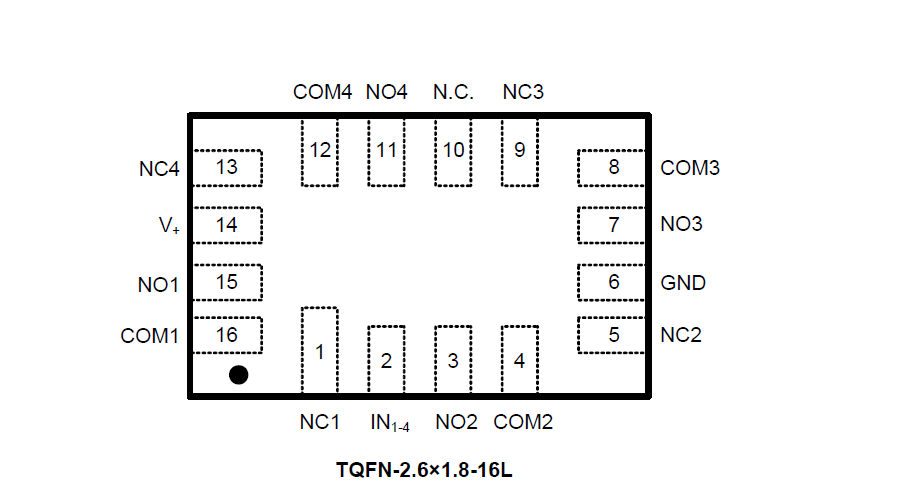

● Available in Green TQFN-2.6×1.8-16L Package
● Extended Industrial Temperature Range: -40℃ to +85℃

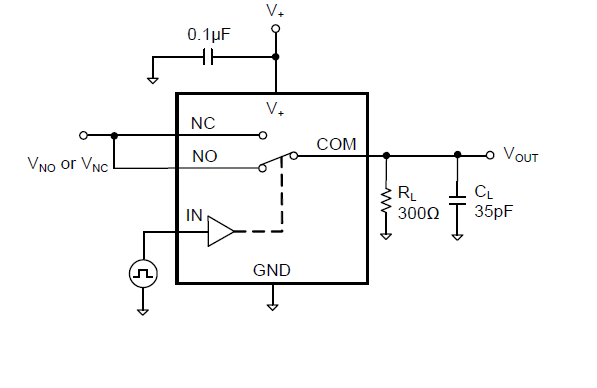

The SGM44602 is a dual, high-speed, low-voltage, double-pole/double-throw (DPDT) CMOS analog switch that is designed to operate from a single 1.8V to 5.5V power supply. It features high-bandwidth (300MHz) and low on-resistance (4Ω TYP), targeted applications for audio switching.
The SGM44602 consists of four SPDT switches. The configuration can be used as a bidirectional quad 2-channel multiplexer/demultiplexer with a single switchenable (IN1-4) input.
SGM44602 can handle rail-to-rail analog signals and is available in Green TQFN-2.6×1.8-16L package.
