SGM44601.pdf
No.11150
● Low Voltage Operation: 1.8V to 5.5V
● Low On-Resistance: 4Ω (TYP)
● Low On-Resistance Flatness
● -3dB Bandwidth: 300MHz
● Rail-to-Rail Input and Output Operation
● High Off-Isolation: -75dB at 1MHz
● Low Crosstalk: -100dB at 1MHz
● Typical Power Consumption (< 0.01μW)
● TTL/CMOS Compatible

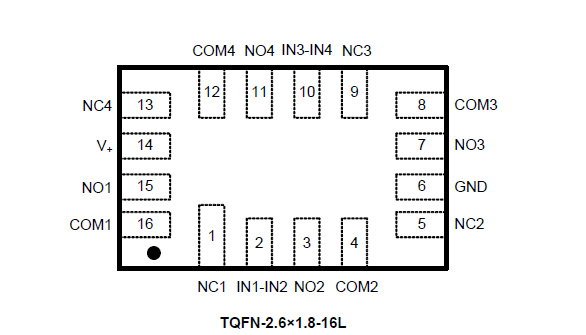

● Available in Green TQFN-2.6×1.8-16L Package
● Extended Industrial Temperature Range: -40℃ to +85℃
The SGM44601 is a high-speed, low-voltage, advanced dual-independent double-pole/double-throw (DPDT) CMOS analog switch that is designed to operate from a single +1.8V to +5.5V power supply. It features high-bandwidth (300MHz) and low on-resistance (4Ω TYP), targeted applications for audio switching. The SGM44601 is configured as a dual double-pole /double-throw (DPDT) device with two logic control inputs that control two multiplexer/demultiplexers each.
The configuration can also be used as a dual differential 2-to-1 multiplexer/ demultiplexer. SGM44601 is available in Green TQFN-2.6×1.8-16L package.
