SGM42507.pdf
No.10851
● Compact Size and Smart Protection
● Support Fast Decay and Slow Decay Modes
● Internal OC/UV/OT Protections
Over-Current Threshold Options: 0.45A/0.9A/1.5A
Under-Voltage Protection Threshold Options: 1.75V/2.8V/3.6V
● Up to 7.5V Supply Range for Applications Powered by:
1 Li+/Poly Cell
2/3/4 Dry Cells
1/2 LiSOCl2 Cell(s)
● -40℃ to +125℃ Operating Temperature Range

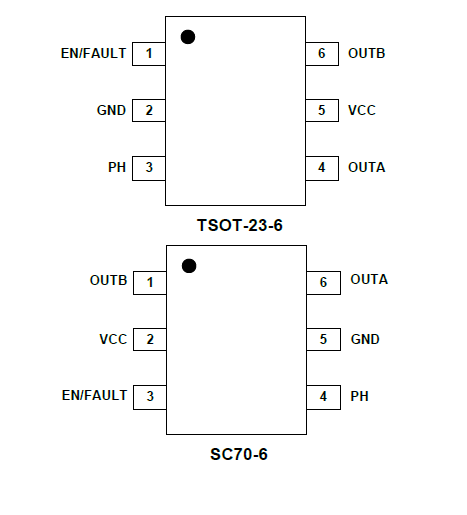

● SGM42507A is Available in a Green TSOT-23-6 Package
SGM42507B/C are Available in both Green SC70-6 and
TSOT-23-6 Packages

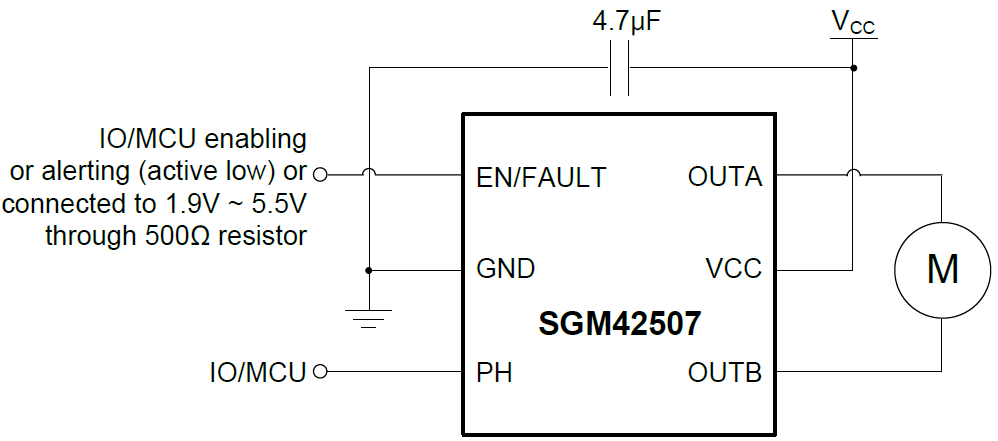

The SGM42507 is an H-bridge driver designed for actuating motors and coils bi-directionally turning. It translates logic level input to power driving outputs to motors or coils, for different spinning or moving directions by PH-EN/FAULT interface. Internal over- current (OC) and under-voltage (UV) protection circuits, together with over-temperature (OT) circuit prevent the device from being in over-stress condition, while an alert output simplifies stalling sensing, which is a useful feature for most applications.
The SGM42507A is available in a Green TSOT-23-6 package. The SGM42507B/C are available in both Green SC70-6 and TSOT-23-6 packages. They operate over an ambient temperature range of -40℃ to +125℃.
