High-Current Over-Voltage Protector
SGM40666B SGM40666B.pdf

No.10948

FEATURES

● 2.5V to 28V Operating Input Voltage Protection

● Input Voltage up to 40V with 50mA Current Limit for 10s Duration

● Integrated 28mΩ (TYP) N-Channel MOSFET

● Adjustable Over-Voltage Protection Trip Level

● 4V to 22V Adjustable OVLO Threshold Range

● 6.83V (TYP) Internal Preset OVLO Threshold

● SGM40666A: Up to +90V/-400V Surge Immunity

● SGM40666B: Up to +80V/-400V Surge Immunity

● 32.3V Clamping Circuit Trigger Threshold when Rising

   Slope > 4.5V/μs (SGM40666A)

● 45V Clamping Circuit Trigger Threshold (SGM40666B)

● 50ns (TYP) Over-Voltage Shutdown Response

● Soft-Start Function

● 15ms Start-up Debounce Time

● Thermal Shutdown Protection

● Enable Function

● Power Good Flag

● Available in a Green WLCSP-1.17×1.63-12B Package

DESCRIPTION

The SGM40666A and SGM40666B are over-voltage protection devices designed to protect low voltage systems from damage with a high voltage supply up to +31VDC and +40VPEAK (10s with 50mA current limit). The SGM40666A withstands +90V/-400V while SGM40666B can also withstand surges up to +80V/-400V without damage.

The integrated 28mΩ (TYP) RON FET allows it to pass through 4.5A continuous current. The FET is turned off when the input voltage exceeds the over-voltage threshold which can be adjusted between 4V and 22V with optional external resistors.

When the OVLO input is set below the external OVLO select threshold (0.27V TYP), the SGM40666A and SGM40666B automatically choose the internal trip thresholds that are preset to 6.83V typically. SGMICRO provides customized OVP threshold options for 22.2V/15.3V/10.5V/6.35V/5.95V. Please contact us if necessary.

The open-drain nACOK output indicates a stable power supply between minimum supply voltage and VOVLO.

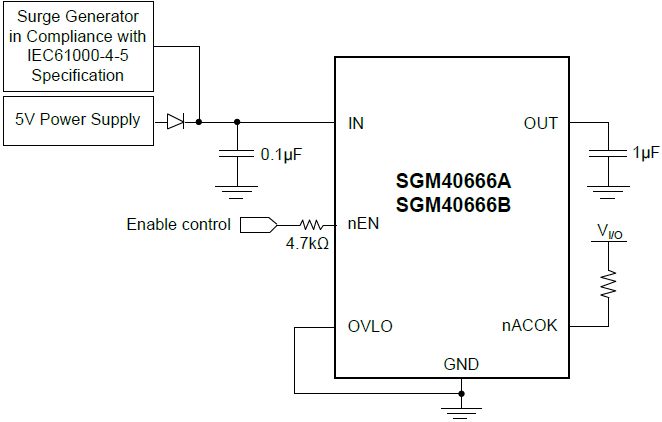

APPLICATION CIRCUIT
PIN CONFIGUTION
