Dual-Channel Screen Flash LED Driver
SGM3760 SGM3760.pdf

No.10806

FEATURES

? 2.7V to 5.5V Input Voltage Range

? Integrated 3.6A/40V MOSFET
? 1.15MHz Switching Frequency
? Optimized Rise Time and Fall Time to Control
  EMI for SW Pin
? Dual Current Sinks
     Up to 30mA Current Each in Backlight Mode
     4× Output Current in Screen Flash Mode for
     up to 330ms (SGM3760)
     3× Output Current in Screen Flash Mode for
     up to 330ms (SGM3760A)
? 1% Typical Current Matching and Accuracy
? Adaptive Boost Output to WLED Voltages
? Very Low Voltage Headroom Control (150mV)
? PWM Dimming Control Interface
? Up to 90% Efficiency
? Built-In Soft-Start Function
? 41.5V Over-Voltage Protection
? Built-In WLED Open/Short Protection
? Dimming Stable in More than 1:500 PWM Range
? PFM Mode at Light Load
? Thermal Shutdown
? -40℃ to +85℃ Operating Temperature Range
? Available in Green WLCSP-1.32×1.32-9B Package
DESCRIPTION

The SGM3760 and SGM3760A are dual-channel screen flash WLED drivers which provide highly integrated solutions for single-cell Li-Ion battery powered smart phone backlight. The SGM3760/A have a built-in high efficiency boost regulator with integrated 3.6A/40V power MOSFET and support as low as 2.7V input voltage. With two high current-matching capability current sink regulators, the devices can drive up to 10S2P WLEDs. The SGM3760/A are quite suitable for smart phone image capture using display device as screen flash light sources, as they can output up to 80mA/60mA current per channel at 32V for 330ms when the strobe signal is active.

The backlight mode default white LED current is set with the external sensor resistor, as shown in the typical application. During the operation, the LED current can be controlled by a pulse width modulation (PWM) signal applied to the PWM pin.

When the device is working, if the STRB pin is pulled high, it will turn on flash mode within 50μs. And the output current is regulated to 4× for SGM3760 and 3× for SGM3760A of the backlight mode that is determined by the PWM signal duty cycle. And it will turn to backlight mode within 50μs when the STRB is pulled low or the strobe signal keeps high over the 330ms timer. The SGM3760/A integrate built-in soft-start, over- voltage, over-current protection, and thermal shutdown protection.

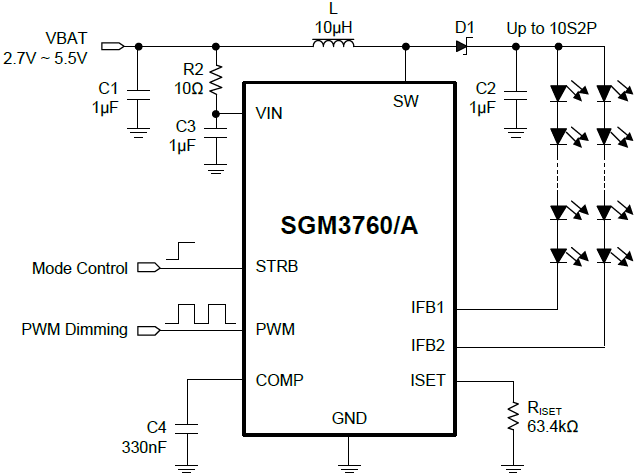

APPLICATION CIRCUIT

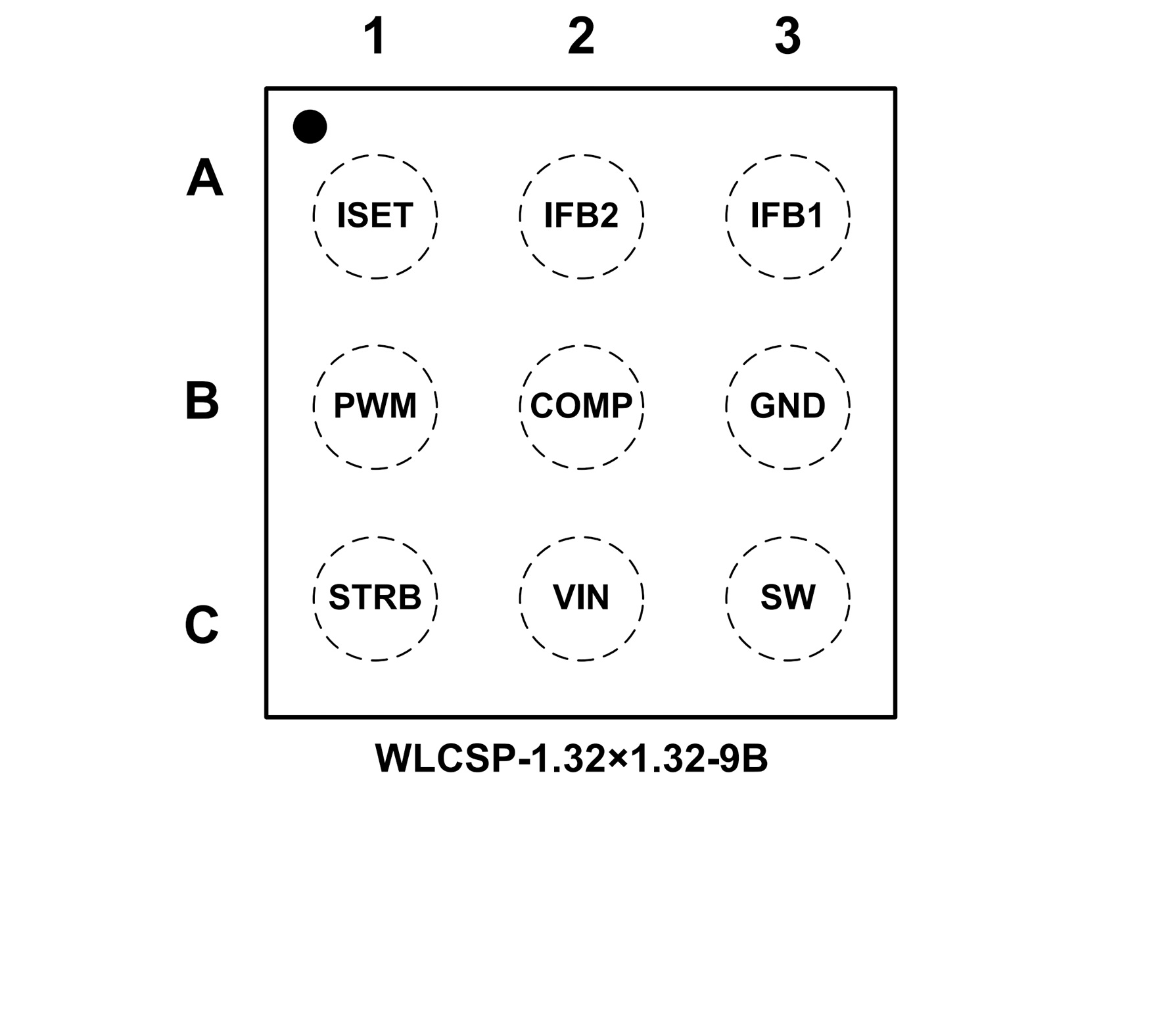

PIN CONFIGUTION
