SGM3167.pdf
No.11166
● Voltage Operation: 1.8V to 5.5V
● On-Resistance: 9Ω (TYP) at 5.0V
● Fast Switching Times
tON 20ns
tOFF 15ns
● High Bandwidth: 600MHz
● High Off-Isolation: -63dB at 10MHz
● Rail-to-Rail Operation
● TTL/CMOS Compatible
● Break-Before-Make Switching
● Extended Industrial Temperature Range: –40℃ to +85℃

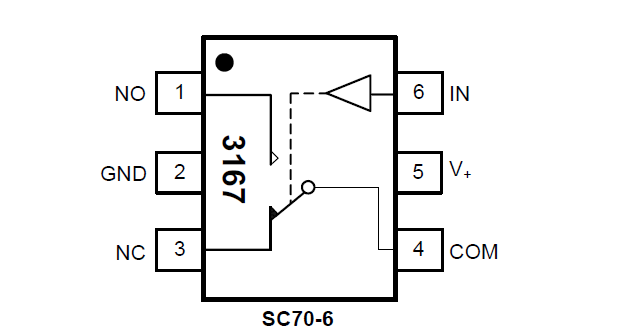

● Lead (Pb) Free SC70-6 Package

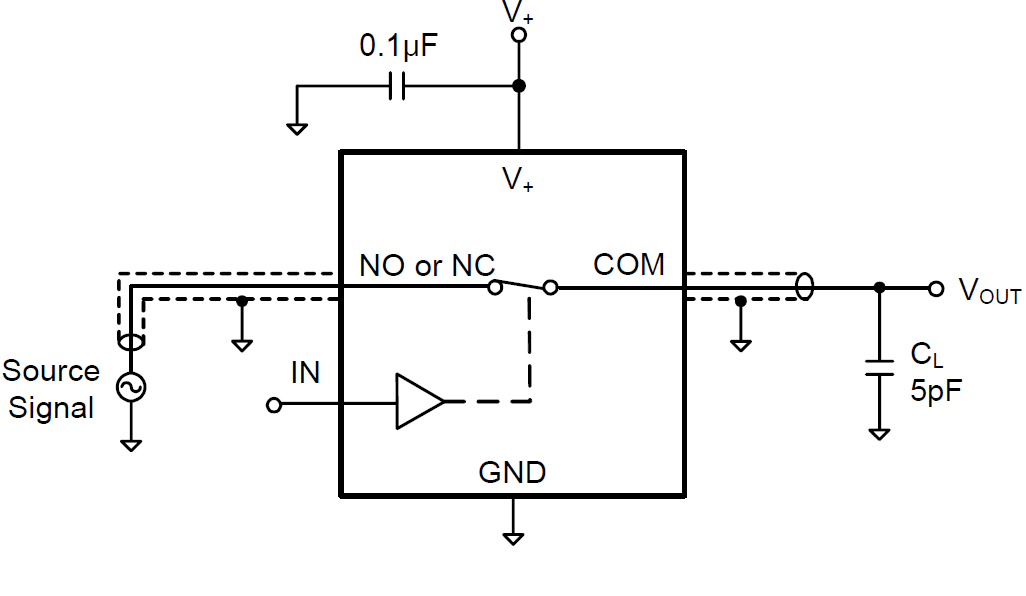

The SGM3167 is a single, bidirectional, single-pole/double-throw (SPDT) CMOS analog switches designed to operate from a single 1.8V to 5.5V supply. It features high-bandwidth (600MHz) and low on-resistance (9Ω TYP), targeted applications for audio switching. SGM3167 features guaranteed on-resistance matching (0.3Ω max) between switches and guaranteed on-resistance flatness over the signal range (2.5Ω TYP).
This ensures excellent linearity and low distortion when switching audio signals. SGM3167 is available in a SC70-6 package.
