5A, 5V Electronic Fuse (eFuse) with Thermal Shutdown
SGM2526 SGM2526.pdf

No.10946

FEATURES

● Wide Input Voltage Range from 4.5V to 22V with Surge up to 30V

● Extremely Low RDS(ON) for the Integrated Protection Switch: 23mΩ

● Programmable Soft-Start Time

● Programmable Current Limit: 5A (MAX)

● Thermal Shutdown Protection & Auto-Recovery

● Selectable Input Range and Clamping Output Voltage Threshold

● Enable Interface Pin

● -40℃ to +85℃ Operating Temperature Range

● Available in Green TDFN-3×3-10L Package

DESCRIPTION

SGM2526 is a programmable current limit switch with input voltage range selection and output voltage clamping. Extremely low RDS(ON) of the integrated protection N-channel MOSFET helps to reduce power loss during the normal operation. Programmable soft-start time controls the slew rate of the output voltage during the start-up time. Independent enable control allows the complicated system sequencing control. It integrates the over-temperature protection shutdown and auto-recovery with hysteresis.

The SGM2526 is available in a Green TDFN-3×3-10L package and operates over a temperature range of -40℃ to +85℃.

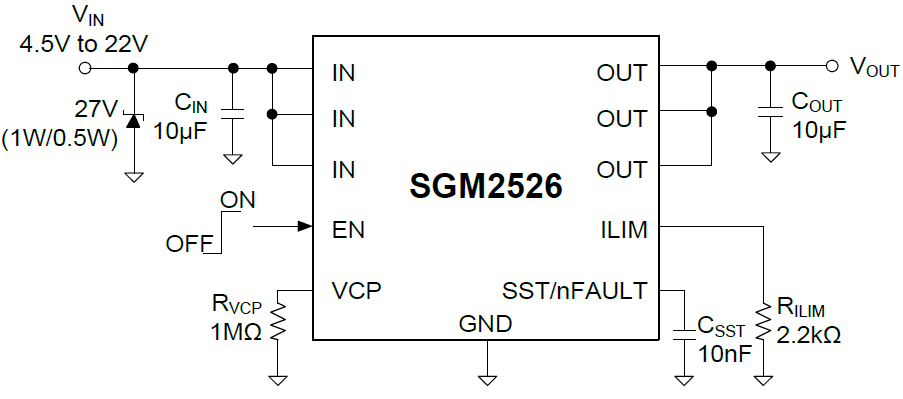

APPLICATION CIRCUIT

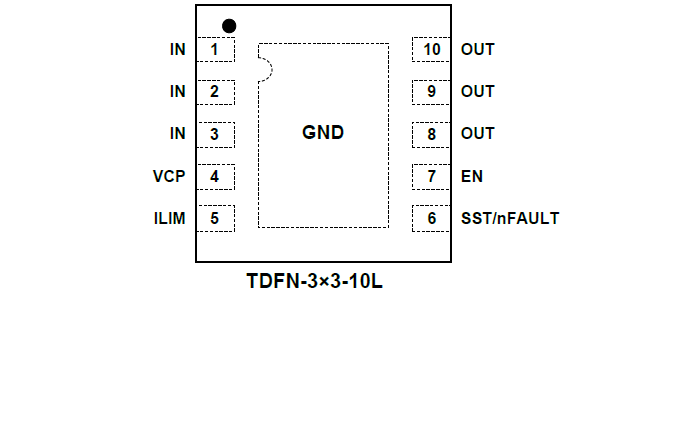

PIN CONFIGUTION
