Programmable Current Limit Switch
SGM2523 SGM2523.pdf

No.10947

FEATURES

● Wide Input Voltage Range from 2.6V to 22V with Surge up to 30V

● Low RDS(ON) for the Integrated Protection Switch: 75mΩ

● Programmable Soft-Start Time

● Programmable Current Limit from 100mA to 1.6A

● ±10% Current Limit Accuracy at TJ = +25℃

● Short-Circuit Protection

● OCP Hiccup Protections:

   SGM2523A: Limited Current Mode

   SGM2523B: Shutdown Mode

● Thermal Shutdown Options:

   SGM2523A: Auto-Retry

   SGM2523B: Latch-Off

● Enable Interface Pin

● -40℃ to +125℃ Operating Temperature Range

● Available in a Green SOT-23-6 Package

DESCRIPTION

SGM2523 is a compact electronic fuse (eFuse) with a complete set of protection functions. The wide operating voltage range is specifically designed for many popular DC buses. The precision ±10% current limit, at room temperature, provides excellent accuracy and makes the SGM2523 well suited for many system protection applications. The programmable soft-start time controls the slew rate of the output voltage during the power-up procedure.

The SGM2523 protects input from undesired shorts and transients coming from the output.

The SGM2523 is available in a Green SOT-23-6 package and operates over a temperature range of -40℃ to +125℃.

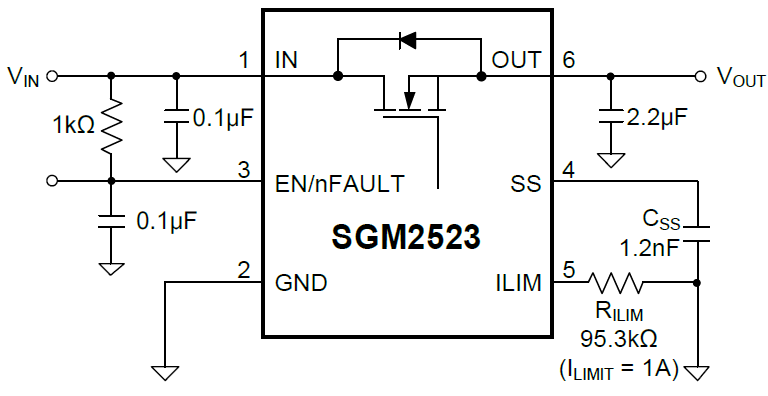

APPLICATION CIRCUIT

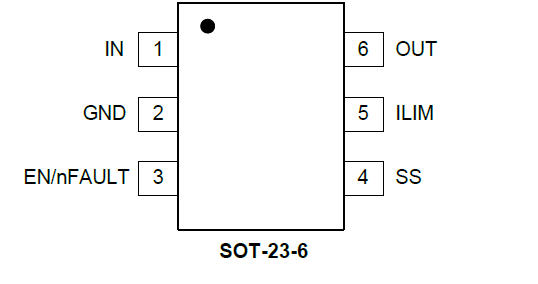

PIN CONFIGUTION
