SGM2268.pdf
No.11174
● Voltage Operation : +1.8V to +4.2V
● Ultra Low On-Resistance: 0.4Ω (TYP) at +4.2V
● On-Resistance Matching : 0.04Ω (TYP)
● On-Resistance Flatness: 0.08Ω (TYP)
● -3 dB Bandwidth: 40MHz
● High Off-Isolation: -78dB at 100KHz
● Low Crosstalk: -103dB at 100KHz
● Rail-to-Rail Input and Output Operation
● TTL/CMOS Compatible
● Break-Before-Make Switching
● Extended Industrial Temperature Range: –40°C to +85°C

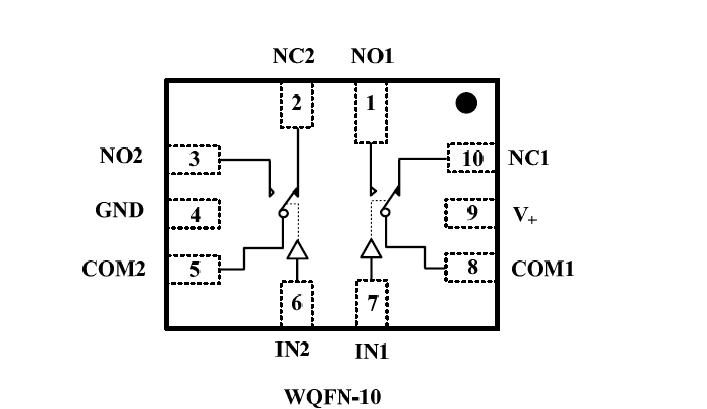

● Lead (Pb) Free WQFN-10 Package

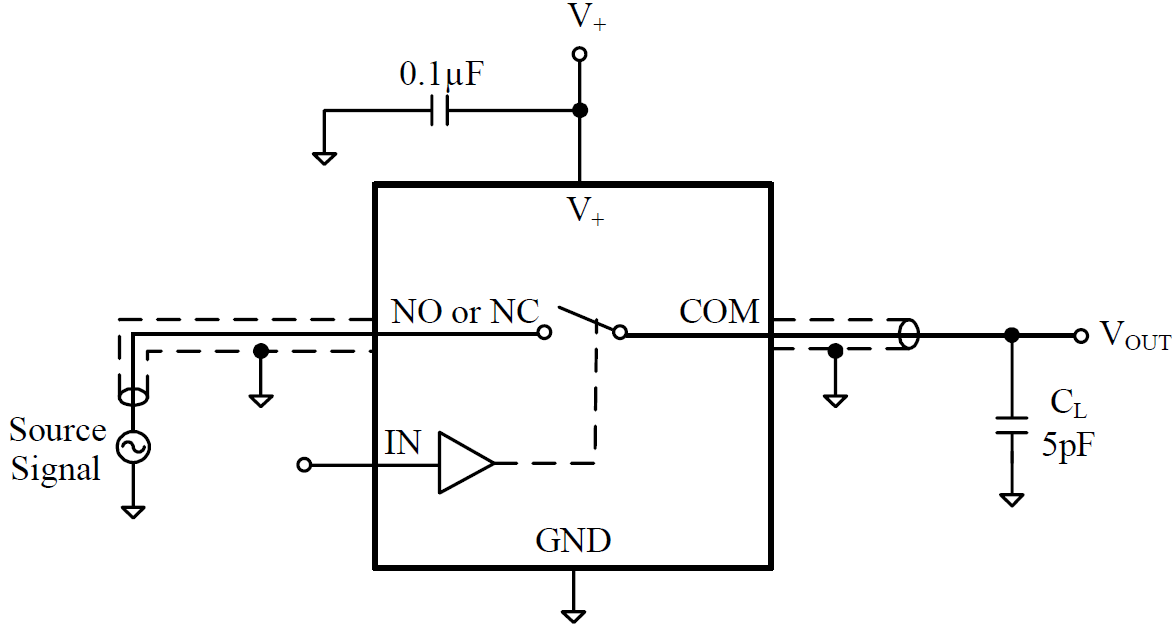

The SGM2268 is a dual single-pole/double-throw (SPDT) analog switch that designed to operate from a single +1.8V to +4.2V power supply. Targeted applications include battery powered equipment that benefit from ultra low ON-resistance (0.4Ω) and fast switching speeds. SGM2268 features guaranteed on-resistance matching (0.04Ω TYP) between switches and guaranteed onresistance flatness over the signal range (0.08Ω TYP), as well as high Off-Isolation and low crosstalk. This ensures excellent linearity and low distortion when switching audio signals.
The SGM2268 is a committed dual single-pole/double -throw (SPDT) that consist of two normally open (NO) and two normally close (NC) switches. This configuration can be used as a dual 2-to-1 multiplexer.
SGM2268 is available in Pb-free WQFN-10 package.
