Automotive 40V, 300mA, Low Quiescent Current and Low Dropout Voltage Linear Regulator.
SGM2249Q SGM2249Q.pdf

No.14167

FEATURES
? AEC-Q100 Qualified for Automotive Applications
  Device Temperature Grade 1
  TA = -40℃ to +125℃
? Operating Input Voltage Range: 2.5V to 40V
? Enable Pin Accept Voltages Higher than the
  Supply Voltage and up to 40V
? Adjustable Output from 0.6V to 24V
? 300mA Output Current
? Output Voltage Accuracy: ±1% at +25℃
? Low Quiescent Current: 3.2μA (TYP)
? Low Dropout Voltage:
  740mV (TYP) at 300mA, VOUT = 24V
? Current Limiting and Thermal Protection
With Output Automatic Discharge
? Stable with Small Case Size Ceramic Capacitors
? -40℃ to +125℃ Operating Temperature Range
? Available in a Green MSOP-8 (Exposed Pad)
  Package
DESCRIPTION

The SGM2249xQ is a high voltage, low quiescent current and low dropout voltage linear regulator. It is capable of supplying 300mA output current with typical dropout voltage of 740mV. The operating input voltage range is from 2.5V to 40V and output voltage range is from 0.6V to 24V.
Other features include current limit and thermal shutdown protection. The SGM2249xQ is suitable for various automotive applications.
This device is AEC-Q100 qualified (Automotive Electronics Council (AEC) standard Q100 Grade 1) and it is suitable for automotive applications.
The SGM2249xQ is available in a Green MSOP-8 (Exposed Pad) package. It operates over an operating temperature range of -40to +125.

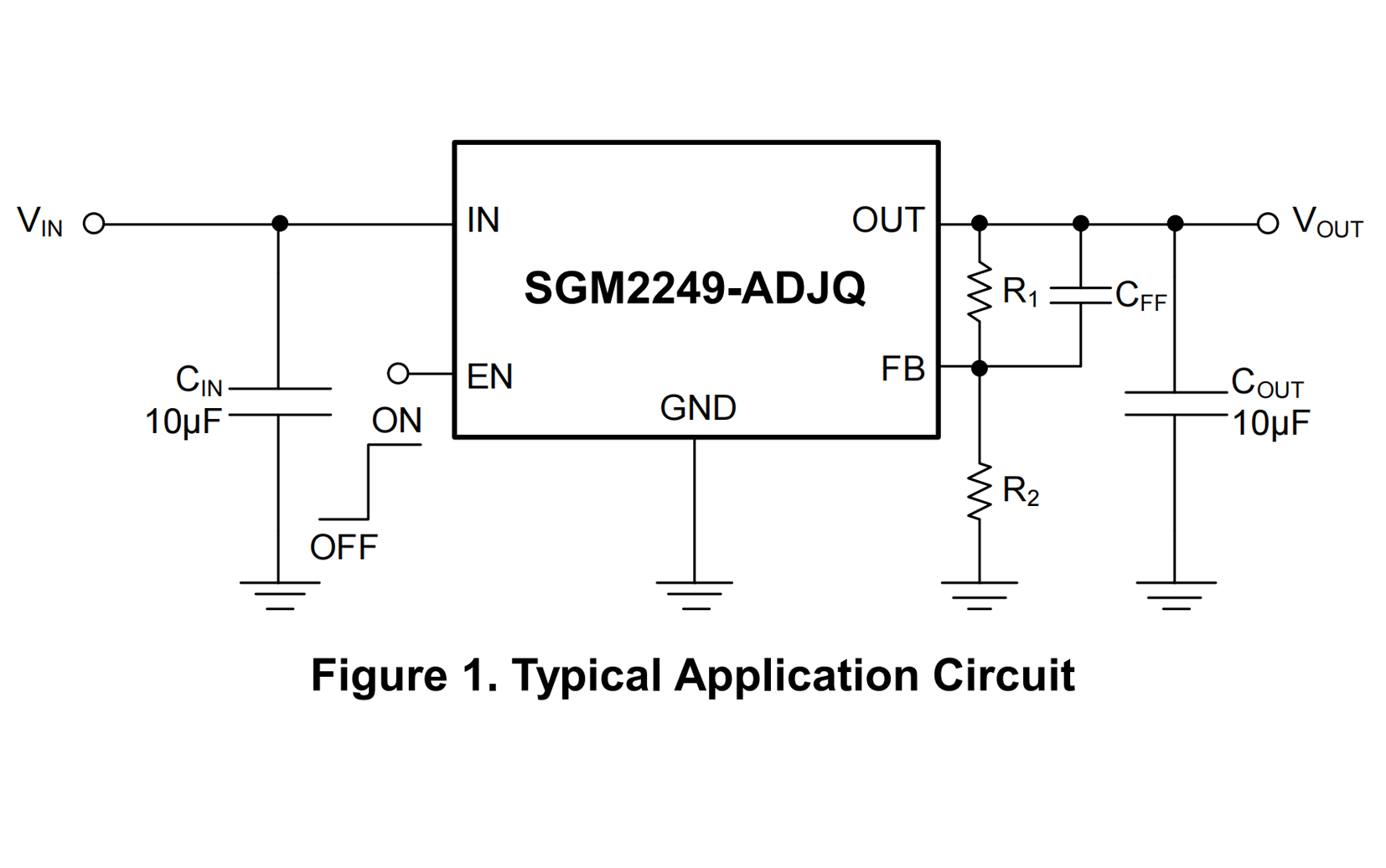

APPLICATION CIRCUIT

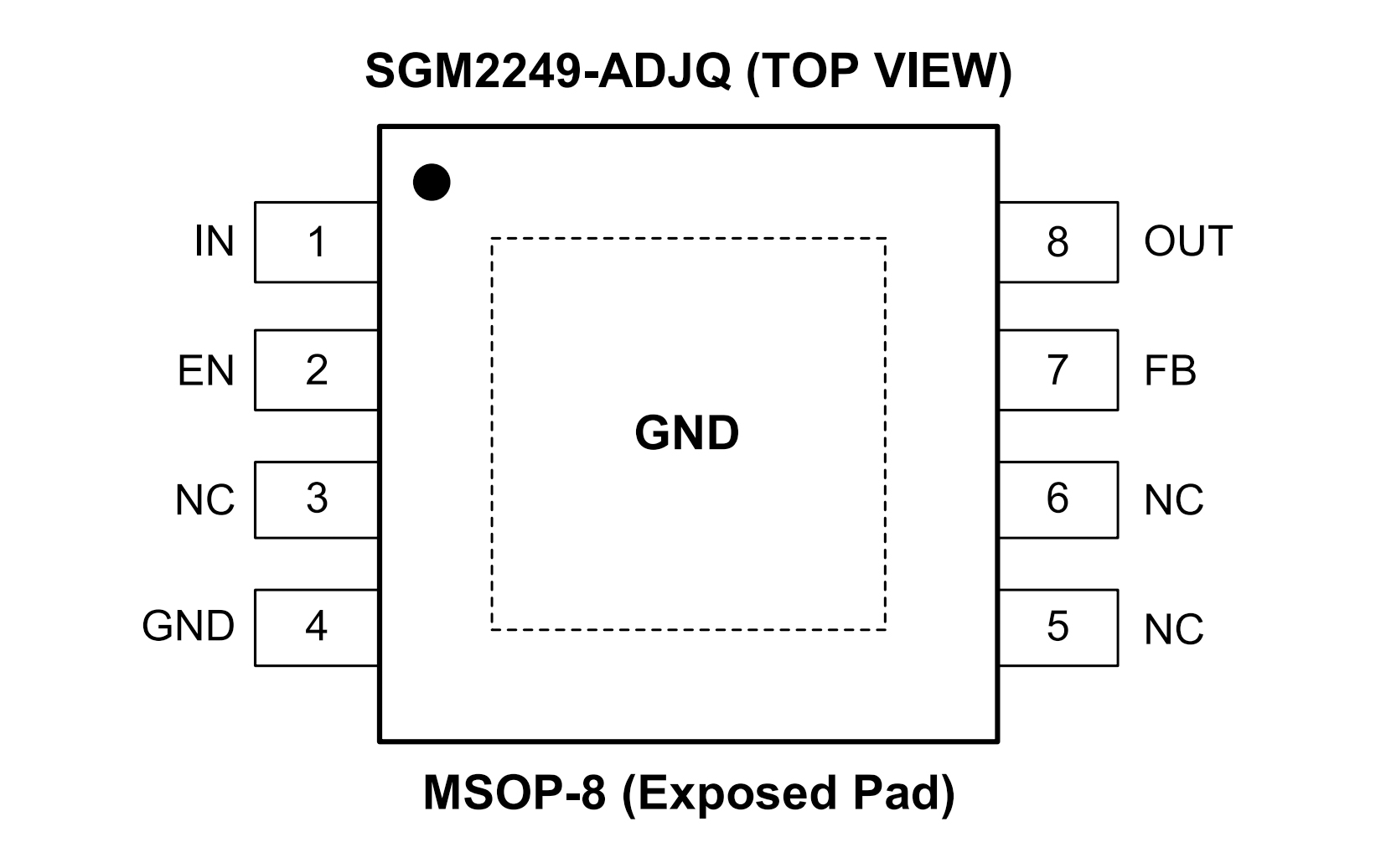

PIN CONFIGUTION
