Automotive 40V, 200mA, Low Quiescent Current and Low Dropout Voltage Linear Regulator.
SGM2236Q SGM2236Q.pdf

No.14161

FEATURES

? AEC-Q100 Qualified for Automotive Applications

  Device Temperature Grade 1
  TA = -40℃ to +125℃
? Operating Input Voltage Range: 2.5V to 40V
? Enable Pin Accept Voltages Higher than the
  Supply Voltage and up to 40V
? Fixed Output from 1.8V to 12V
? Adjustable Output from 1.215V to 35V
? 200mA Output Current
? Output Voltage Accuracy: ±1% at +25℃
? Low Quiescent Current: 3.2μA (TYP)
? Low Dropout Voltage:
  500mV (TYP) at 200mA, VOUT = 5.0V
? Current Limiting and Thermal Protection
? With Output Automatic Discharge
? Stable with Small Case Size Ceramic Capacitors
-40℃ to +125℃ Operating Temperature Range
? Available in Green TDFN-2×2-6AL and

  TDFN-3×3-8JL Packages

DESCRIPTION

The SGM2236xQ is a high voltage, low quiescent current and low dropout voltage linear regulator. It is capable of supplying 200mA output current with typical dropout voltage of 500mV. The operating input voltage range is from 2.5V to 40V and output voltage range is from 1.215V to 35V.
Other features include current limit and thermal shutdown protection. The SGM2236xQ is suitable for various automotive applications.
This device is AEC-Q100 qualified (Automotive Electronics Council (AEC) standard Q100 Grade 1) and it is suitable for automotive applications.
The SGM2236xQ is available in Green TDFN-2×2-6AL and TDFN-3×3-8JL packages. It operates over an operating temperature range of -40to +125.

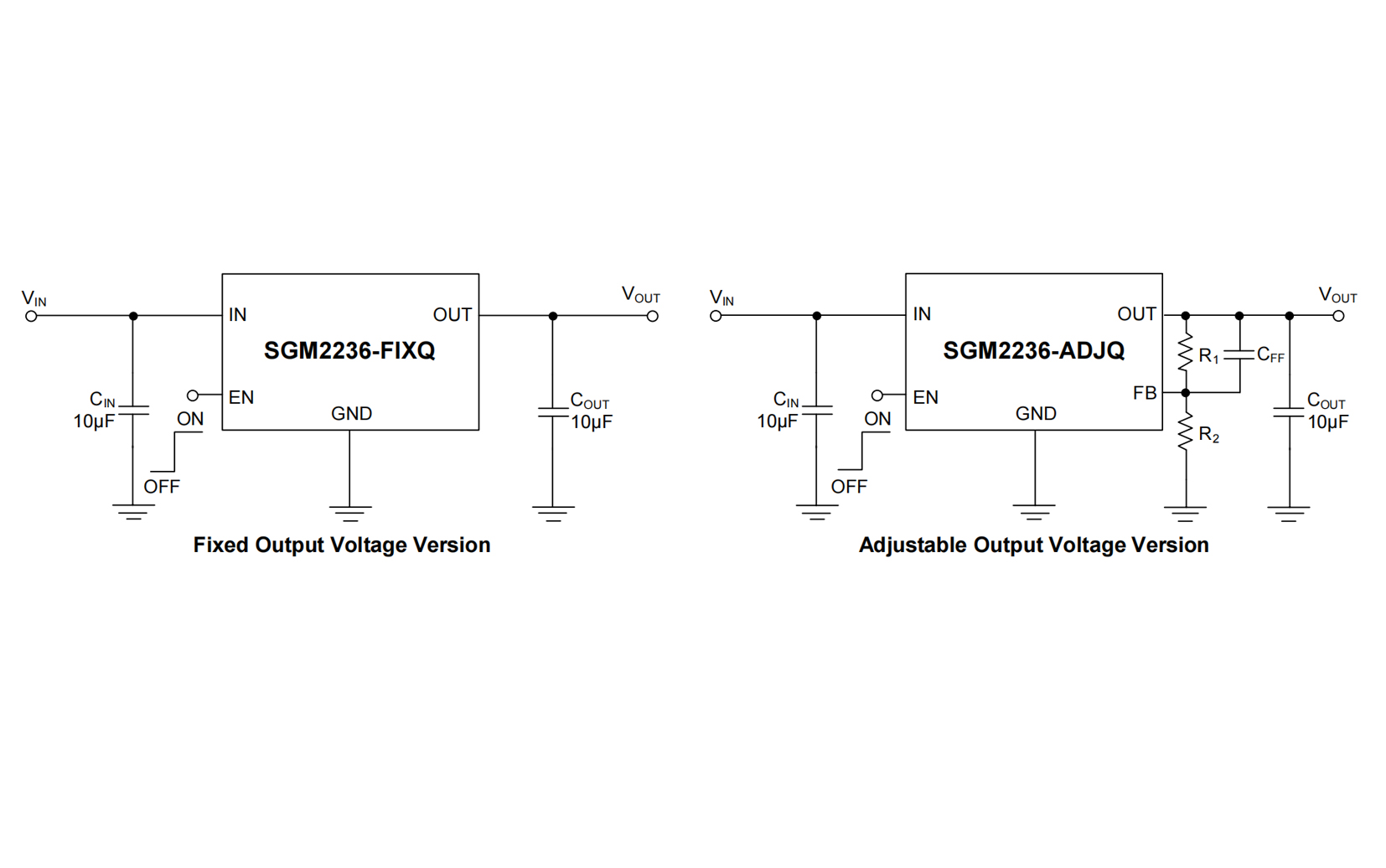

APPLICATION CIRCUIT

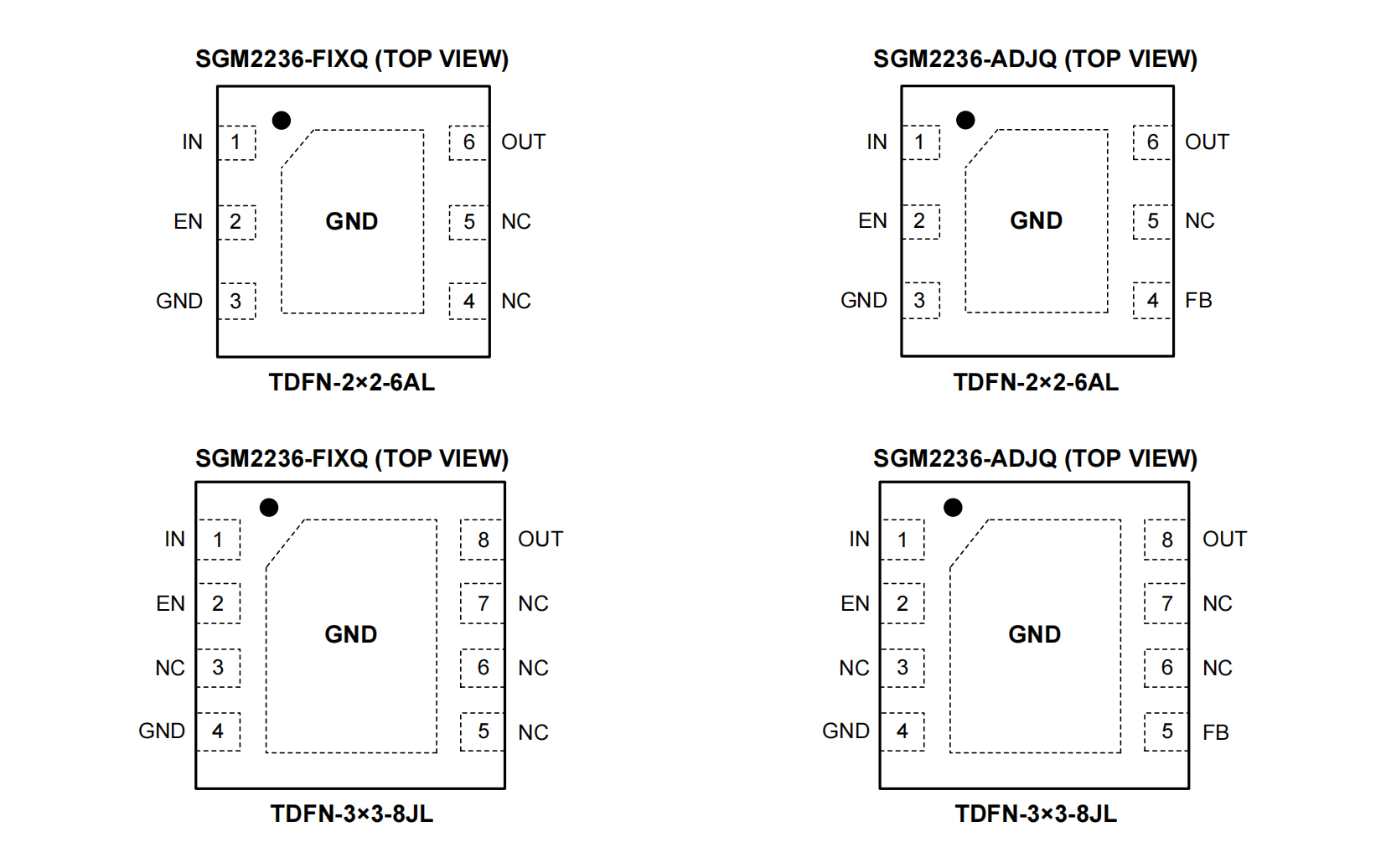

PIN CONFIGUTION
