150mA, High PSRR, High Voltage Regulators.
SGM2202
SGM2202.pdf
SGM2202.pdf
No.10809
FEATURES
? Low Power Consumption
? 150mA Nominal Output Current
? Low Dropout Voltage
? High PSRR
? Low Temperature Coefficient
? High Input Voltage (up to 36V)
? Output Voltage Accuracy: ±1%
? Fixed Outputs of 3.0V, 3.3V and 5.0V
? -40℃ to +85℃ Operating Temperature Range
? Available in Green SOT-23-5 Package
DESCRIPTION
The SGM2202 series is a set of low power high voltage regulators implemented in CMOS technology which can provide 150mA output current. The device allows input voltage as high as 36V. The SGM2202 series is available in adjustable and several fixed output voltages. CMOS technology ensures low dropout voltage and low quiescent current.
Although designed primarily as fixed voltage regulators, the device can be used with external components to obtain variable output voltages.
The SGM2202 series is available in Green SOT-23-5 and SOT-23-6 packages. It operates over an ambient temperature range of -40℃ to +85℃.

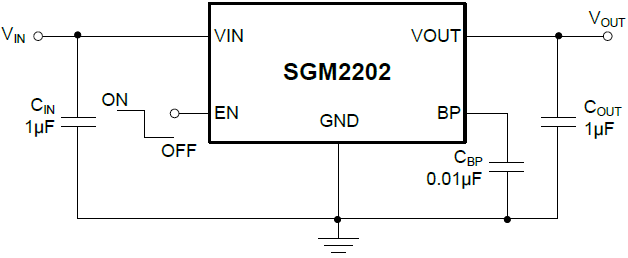

APPLICATION CIRCUIT

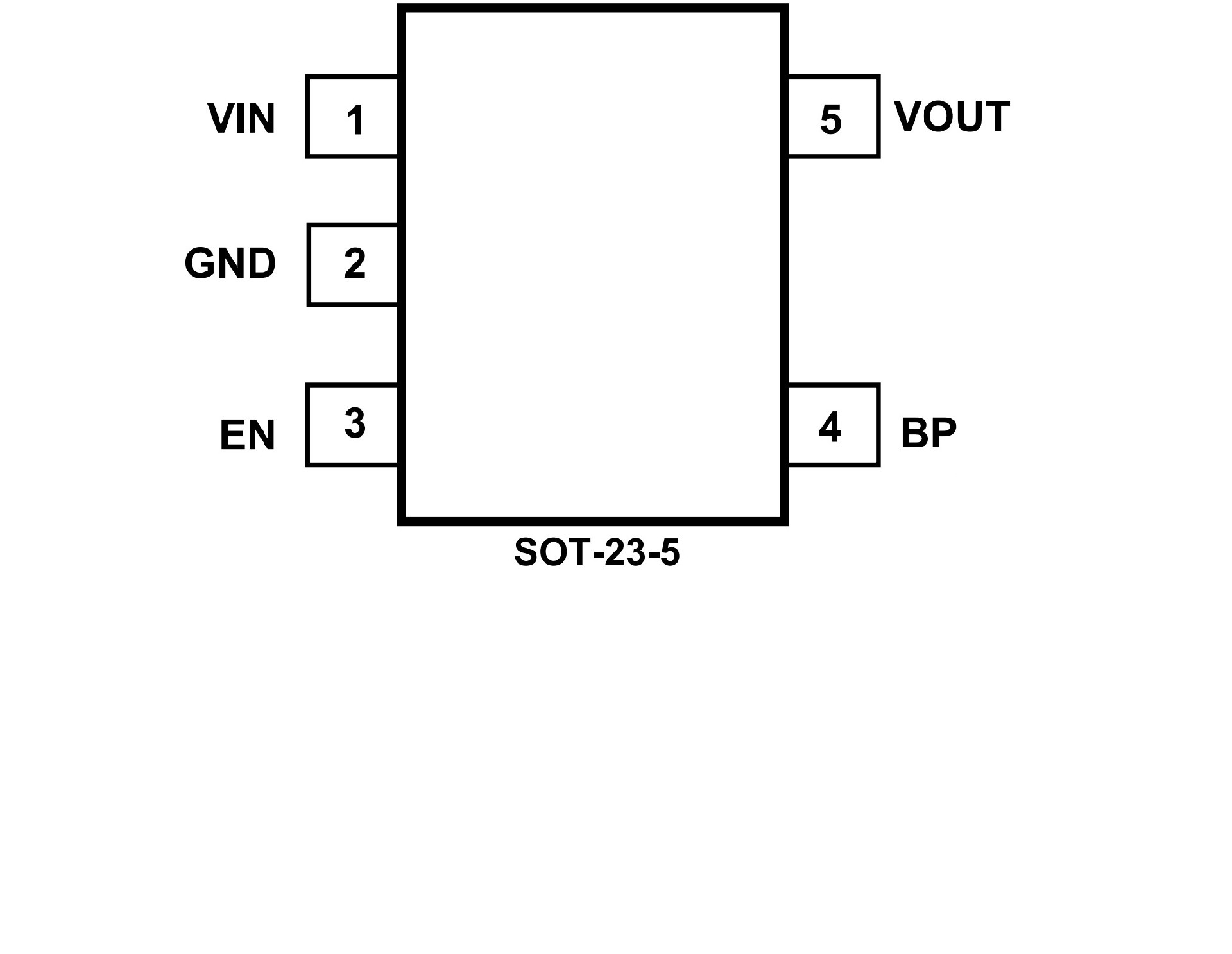

PIN CONFIGUTION
