? Operating Input Voltage Range: 1.8V to 5.5V
? Fixed Output Voltage Range: 1.2V to 4.2V
? Output Short to GND Protection
? Output Current Limit: 500mA (TYP)
? Over-Temperature Protection: +165℃
? Fast Load and Line Transient Responses
? Ultra-Low Quiescent Current: 13.5μA (TYP)
? Shutdown Current: 0.1μA (TYP)
? Stable with 1μF Small Case Size Ceramic Capacitors
? -40℃ to +125℃ Operating Temperature Range

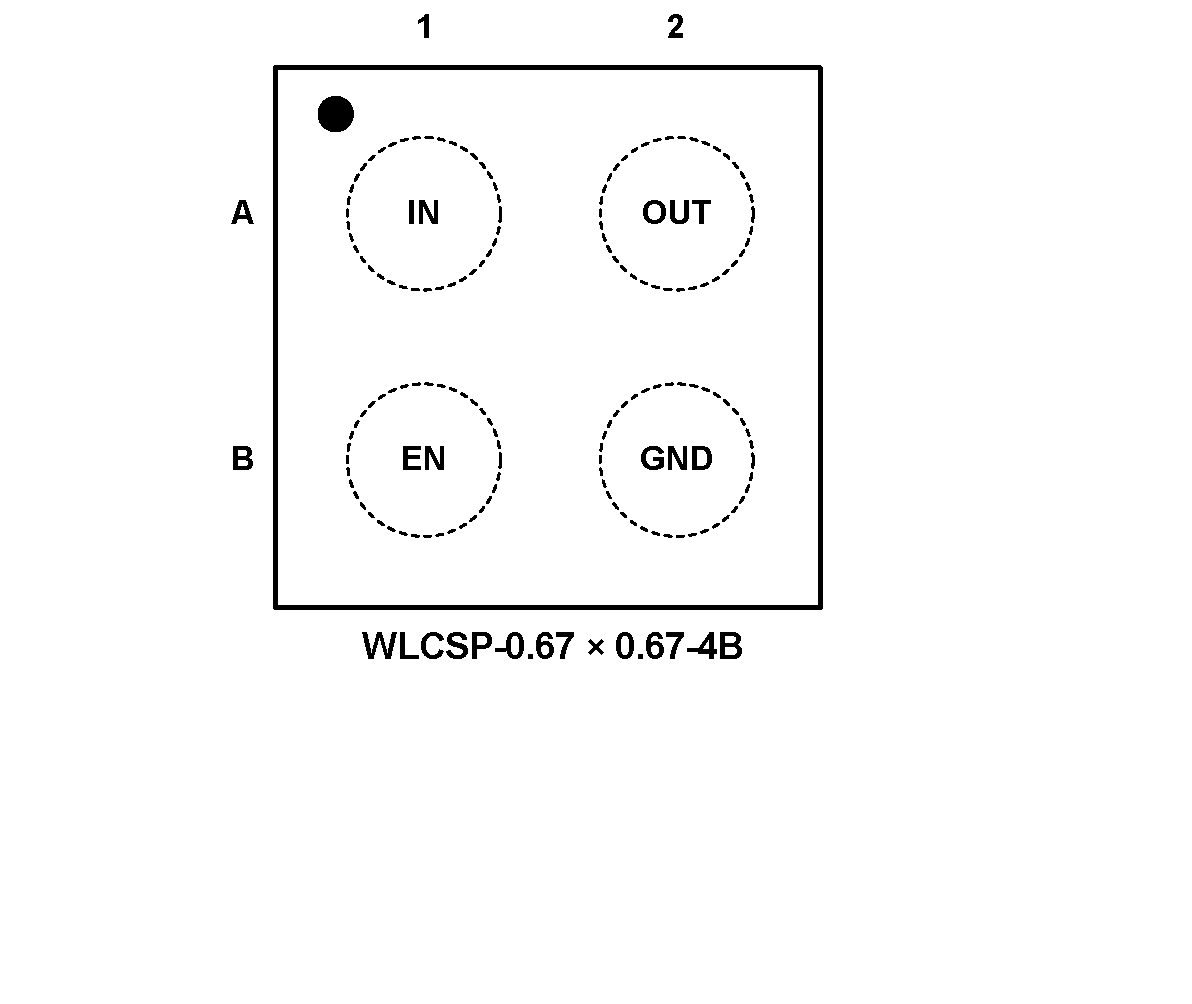

? Available in a Green WLCSP-0.67 × 0.67-4B package
The SGM2041 is an ultra-low noise linear regulator capable of supplying 250mA output current. Designed to meet the requirements of RF and analog circuits, the SGM2041 device provides ultra-low noise, high PSRR, low quiescent current and very good load/line transient responses. The device is designed to work with a 1μF input and a 1μF output ceramic capacitors.
The SGM2041 is available in a Green WLCSP-0.67 ×0.67-4B package. It operates over an operating temperature range of -40℃ to +125℃.
