SGM2034.pdf
No.10965
● Output Voltage: 1.2V to 5.2V with 0.05V per Step
● Input Voltage: 1.7V to 5.5V
● High Output Voltage Accuracy
● Low Dropout Voltage
● Low Current Consumption
● 250mA Nominal Output Current
● Input and Output Capacitors:
Ceramic Capacitors of 0.1μF or Higher can be Used
● Low Reverse Leakage Current when VOUT > VIN
● Built-In Over-Temperature Protection
● Built-In Over-Current Protection Circuit
● -40℃ to +85℃ Operating Temperature Range

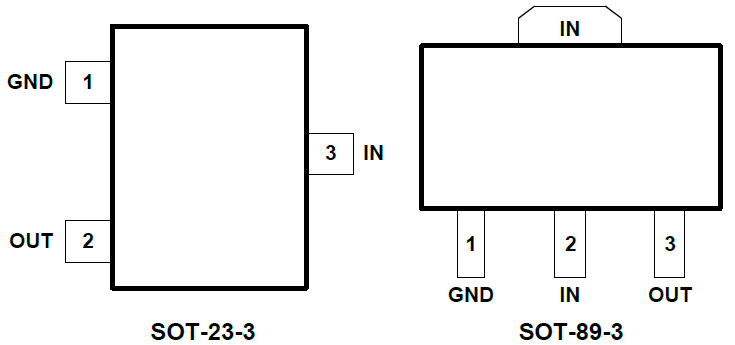

● Available in Green SOT-23-3 and SOT-89-3 Packages
The SGM2034 series are positive voltage regulators with ultra low current consumption, low dropout voltage, high-accuracy output voltage and 250mA output current, developed in CMOS technology.
Input and output capacitors as small as 0.1μF can be used. The SGM2034 series operate with an ultra low current consumption of 1.0μA (TYP).
The built-in low on-resistance transistor realizes low dropout voltage and a large output current. A built-in over-current protection circuit prevents the load current from exceeding the current capacity of the output transistor. Reverse current is less than 0.2μA (TYP) when VOUT > VIN.
Compared with voltage regulators using a conventional CMOS technology, more types of capacitors, including small input and output capacitors, can be used with the SGM2034 series. The SGM2034 series feature ultra low current consumption and come in small packages, making them most suitable for portable equipment.
