SGM2030.pdf
No.10969
● Low Dropout Voltage
● Thermal-Overload Protection
● Output Current Limit
● High PSRR (71dB at 1kHz)
● 10nA Logic-Controlled Shutdown
● Available in Multiple Output Voltage Versions
● Fixed Outputs of 1.2V, 1.5V, 1.8V, 2.5V, 2.6V, 2.8V, 2.85V, 3.0V and 3.3V
● -40℃ to +85℃ Operating Temperature Range

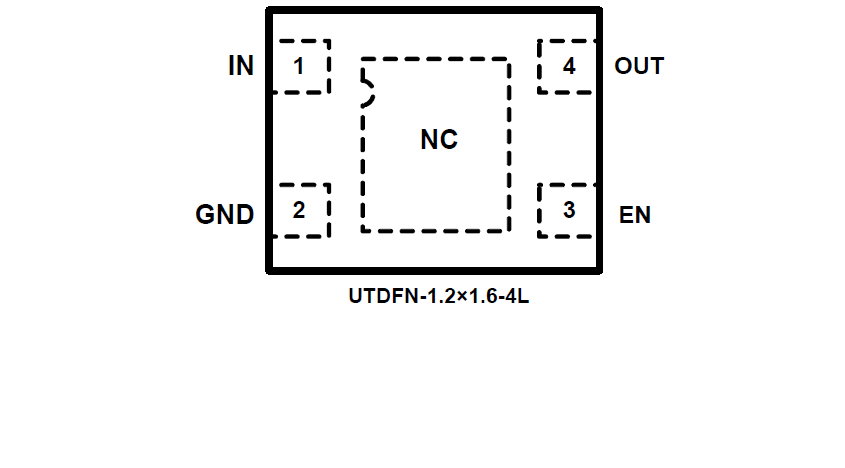

● Available in Green UTDFN-1.2×1.6-4L Package

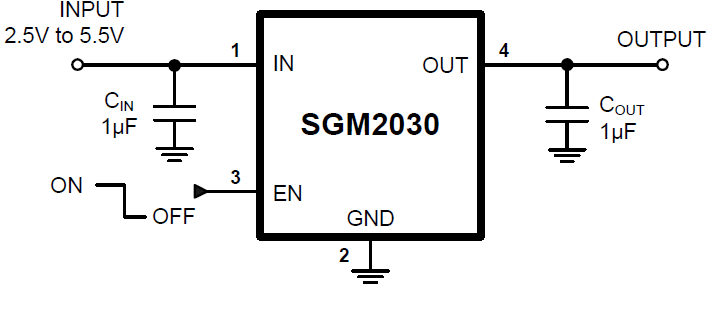

The SGM2030 series low-power, low-dropout, CMOS linear voltage regulators operate from a 2.5V to 5.5V input voltage in an ultra small package. They are the perfect choice for low voltage, low power applications. A low ground current makes this part attractive for battery operated power systems. The SGM2030 series also offer ultra low dropout voltage to prolong battery life in portable electronics. Systems requiring a quiet voltage source, such as RF applications, will benefit from the SGM2030 series’ low output noise and high PSRR. Other features include a 10nA logic-controlled shutdown mode, foldback current limit and thermal shut-down protection.
The SGM2030 is available in Green UTDFN-1.2×1.6-4L package. It operates over an ambient temperature range of -40°C to +85°C.
