SGM2018.pdf
No.11726
● Fixed Output Voltage Versions:
1.8V, 2.8V, 3.0V and 3.3V
● Input Voltage Range: 1.7V to 5V
? Output Voltage Accuracy: ±1.2% at +25℃
? Low Dropout Voltage: 70mV (TYP) at 100mA
? Ultra-Low Current Consumption: 1μA (TYP)
? 250mA Nominal Output Current
? Low Reverse Leakage Current:
0.4μA (TYP) when VOUT > VIN
? Built-In Over-Temperature Protection
? Built-In Over-Current Protection Circuit
? Supports 1.8V Logic for EN Pin
? -40℃ to +85℃ Operating Temperature Range

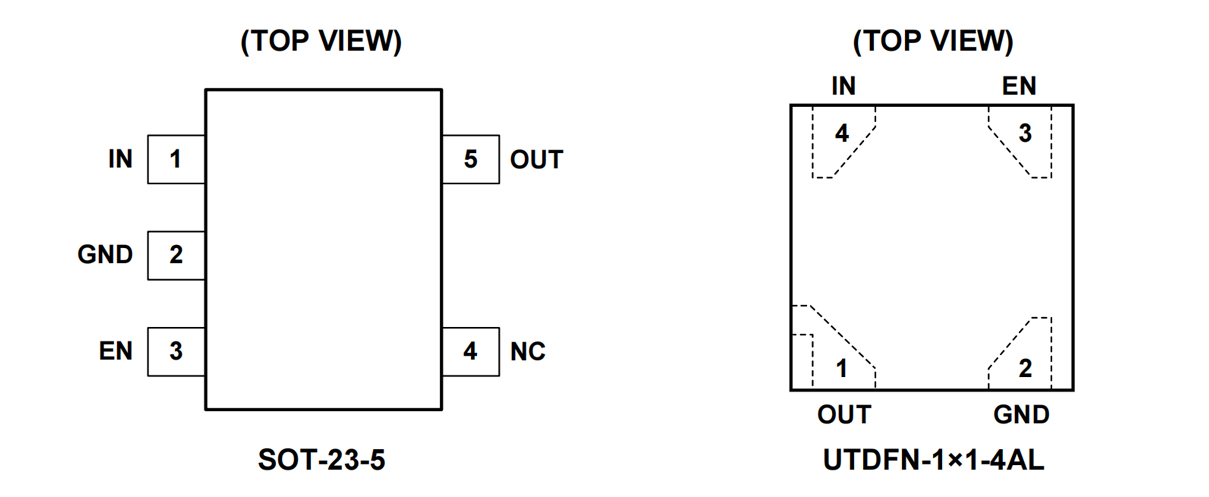

? Available in Green SOT-23-5 and UTDFN-1×1-4AL
Packages
The SGM2018 series are positive voltage regulators with ultra-low current consumption, low dropout voltage, high-accuracy output voltage and 250mA output current,developed in CMOS technology.
Output capacitor as small as 0.1μF can be used. The SGM2018 series operate with an ultra-low current consumption and only 1μA typical current is consumed to prolong the battery run-time.
The built-in low on-resistance transistor realizes low dropout voltage and a large output current. A built-in over-current protection circuit prevents the load current from exceeding the current capacity of the output transistor. Reverse leakage current is 0.4μA (TYP) when VOUT > VIN.
Compared with voltage regulators using a conventional CMOS technology, more types of capacitors, including small input and output capacitors, can be used with the SGM2018 series. The SGM2018 series feature ultra-low current consumption and come in small packages, making them most suitable for portable equipment.
The SGM2018 series is available in Green SOT-23-5 and UTDFN-1×1-4AL packages. It operates over an operating temperature range of -40℃ to +85℃.
