3.0A Surface Mount Schottky Barrier Rectifier.
B360B-13-F
B360B-13-F.pdf
B360B-13-F.pdf
No.13537
FEATURES
? Guard Ring Die Construction for Transient Protection
? Ideally Suited for Automated Assembly
? Low Power Loss, High Efficiency
? Surge Overload Rating to 125A Peak
? For Use in Low Voltage, High Frequency Inverters, Free
Wheeling, and Polarity Protection Applications
DESCRIPTION
Mechanical Data:

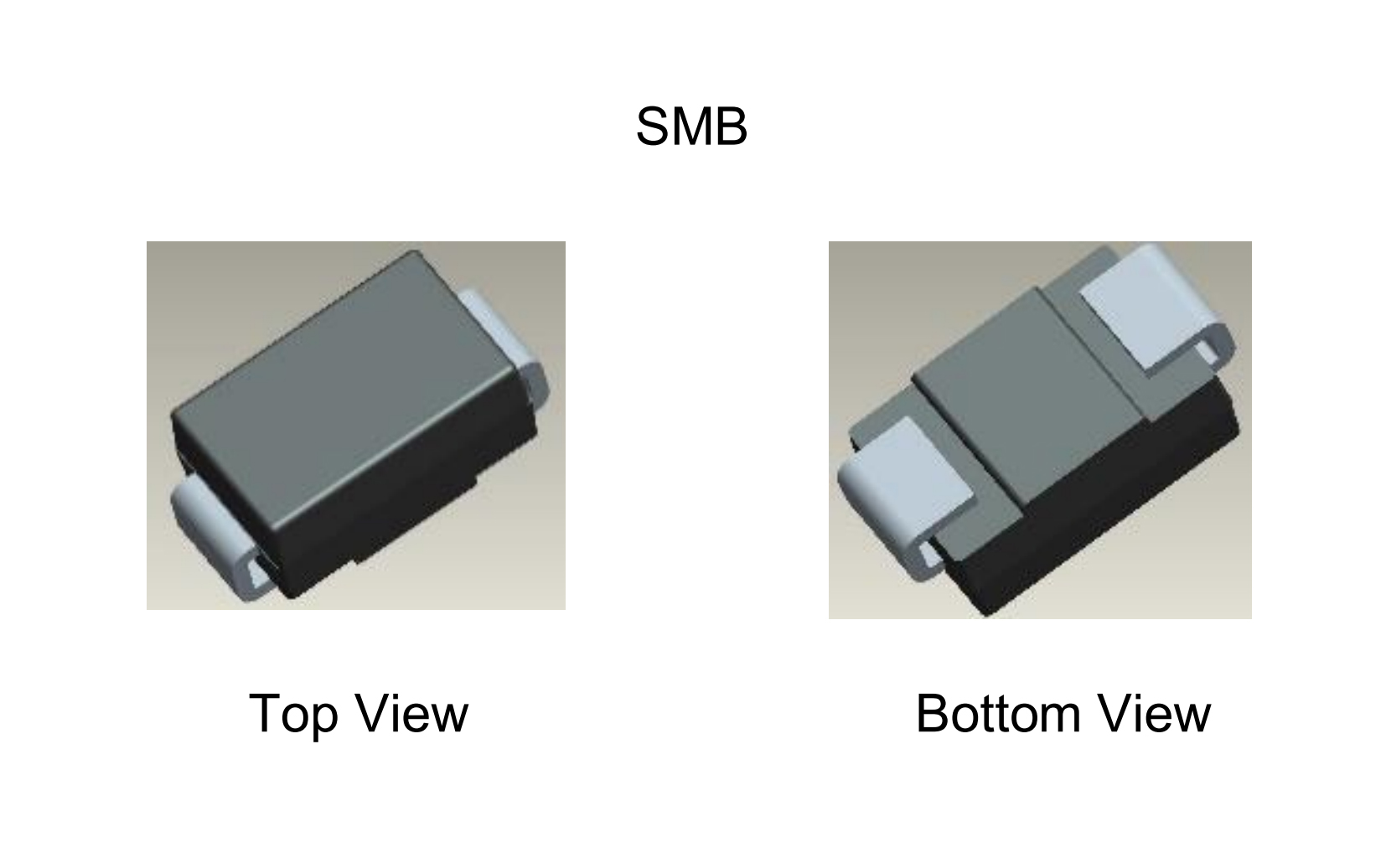

? Package: SMB
? Package Material: Molded Plastic. "Green" Molding Compound.
UL Flammability Classification Rating 94V-0
? Moisture Sensitivity: Level 1 per J-STD-020
? Terminals: Lead Free Plating (Matte Tin Finish). Solderable per
MIL-STD-202, Method 208
? Polarity: Cathode Band
? Weight: 0.093 grams (Approximate)
APPLICATION CIRCUIT

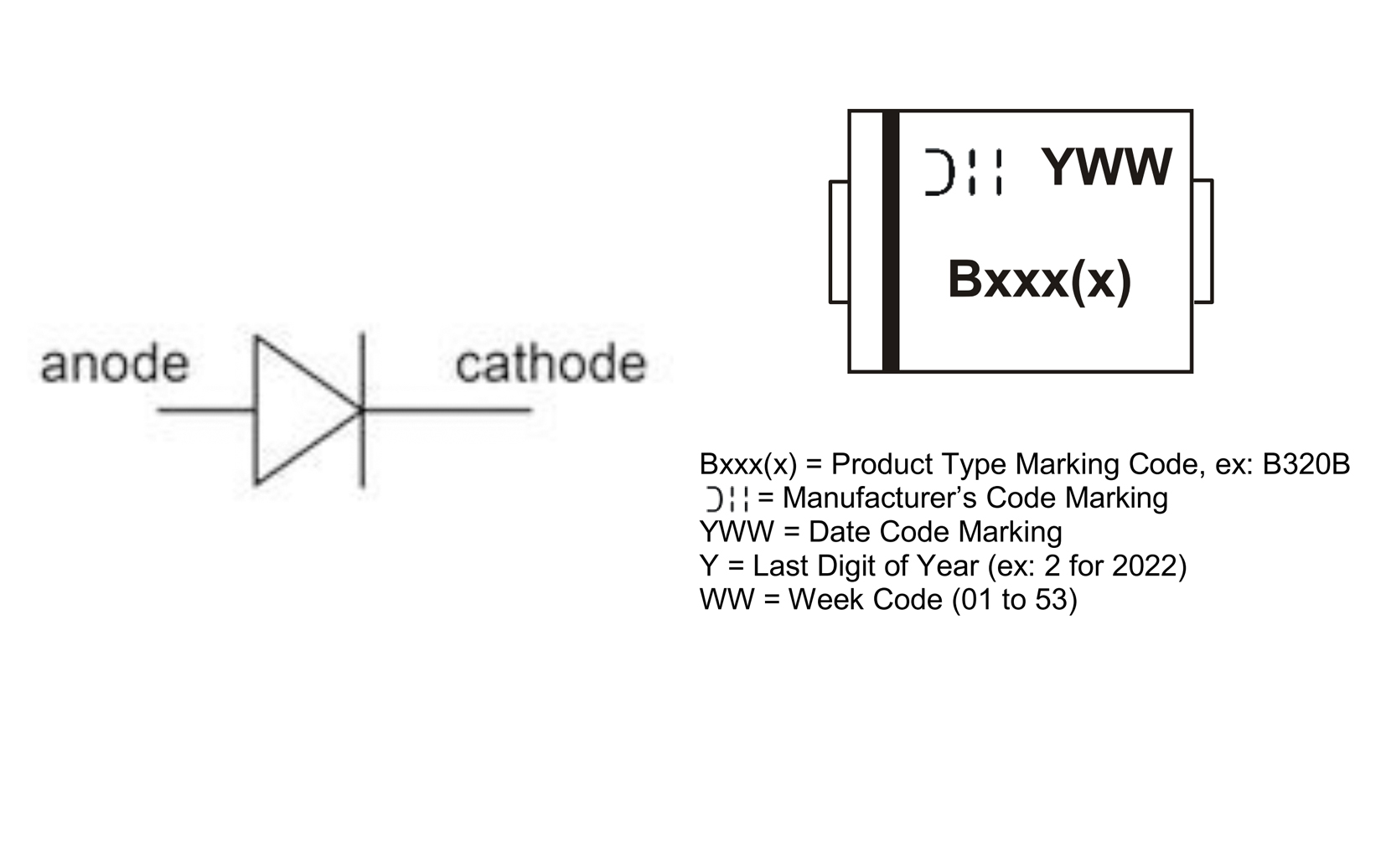

PIN CONFIGUTION
