ACP2816.pdf
No.13168
? Up to 95% Efficiency
? Wide input voltage: 6.5V ~ 30V
? Continuous 3A Current Load Capability
? Integrated 40V Power MOSFET Switches
? Fixed 300KHz Switching Frequency
? 0.9V Voltage Reference with ±2% Accuracy
? Maximum 10μA Shutdown Current
? Light Load Sleep Operation
? Programmable Soft-Start Limits
? Input Under-Voltage Lockout
? Input Over-Voltage protection
? Output Over Voltage Protection
? Output Short Protection
? Over Temperature Protection

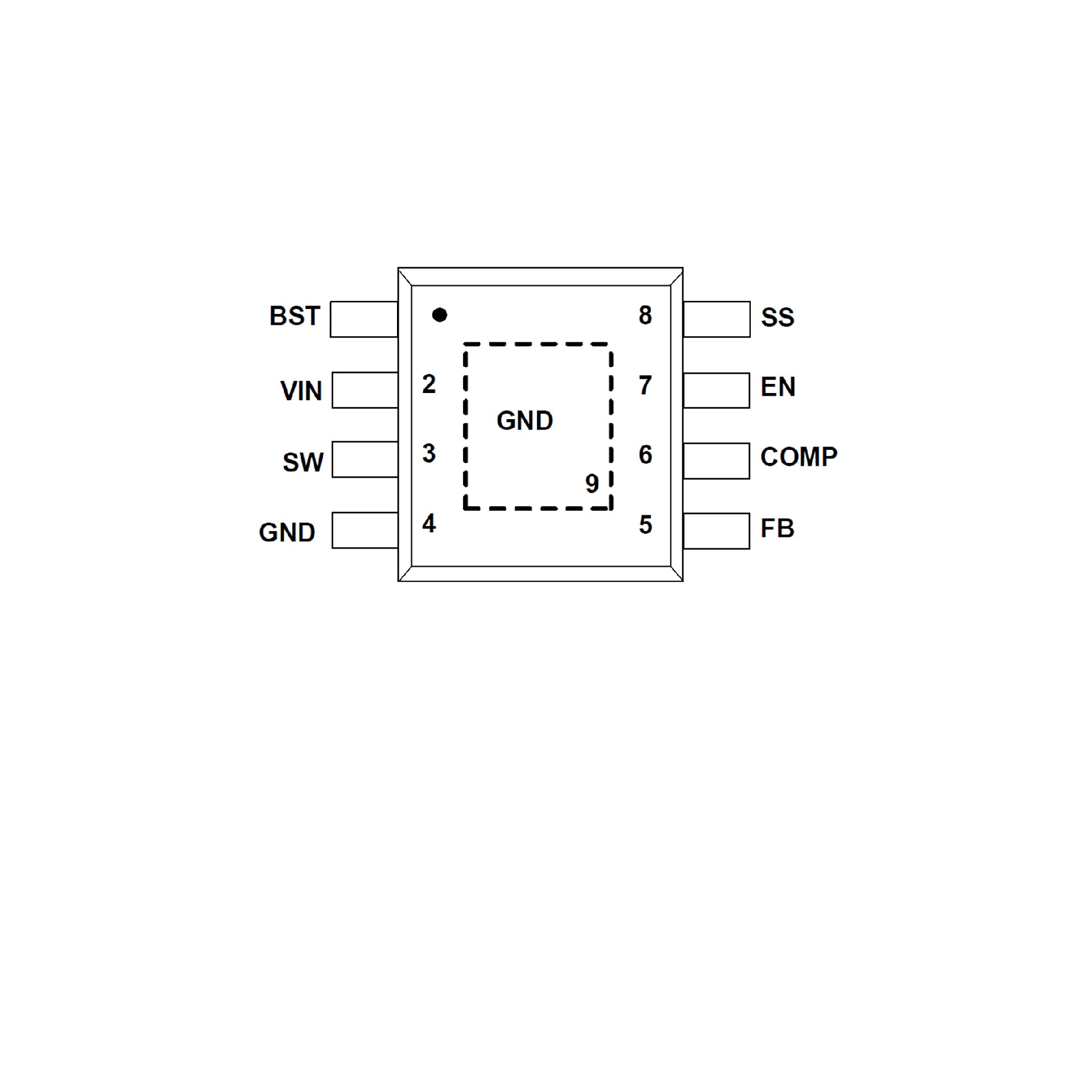

? General SOP8-EP package

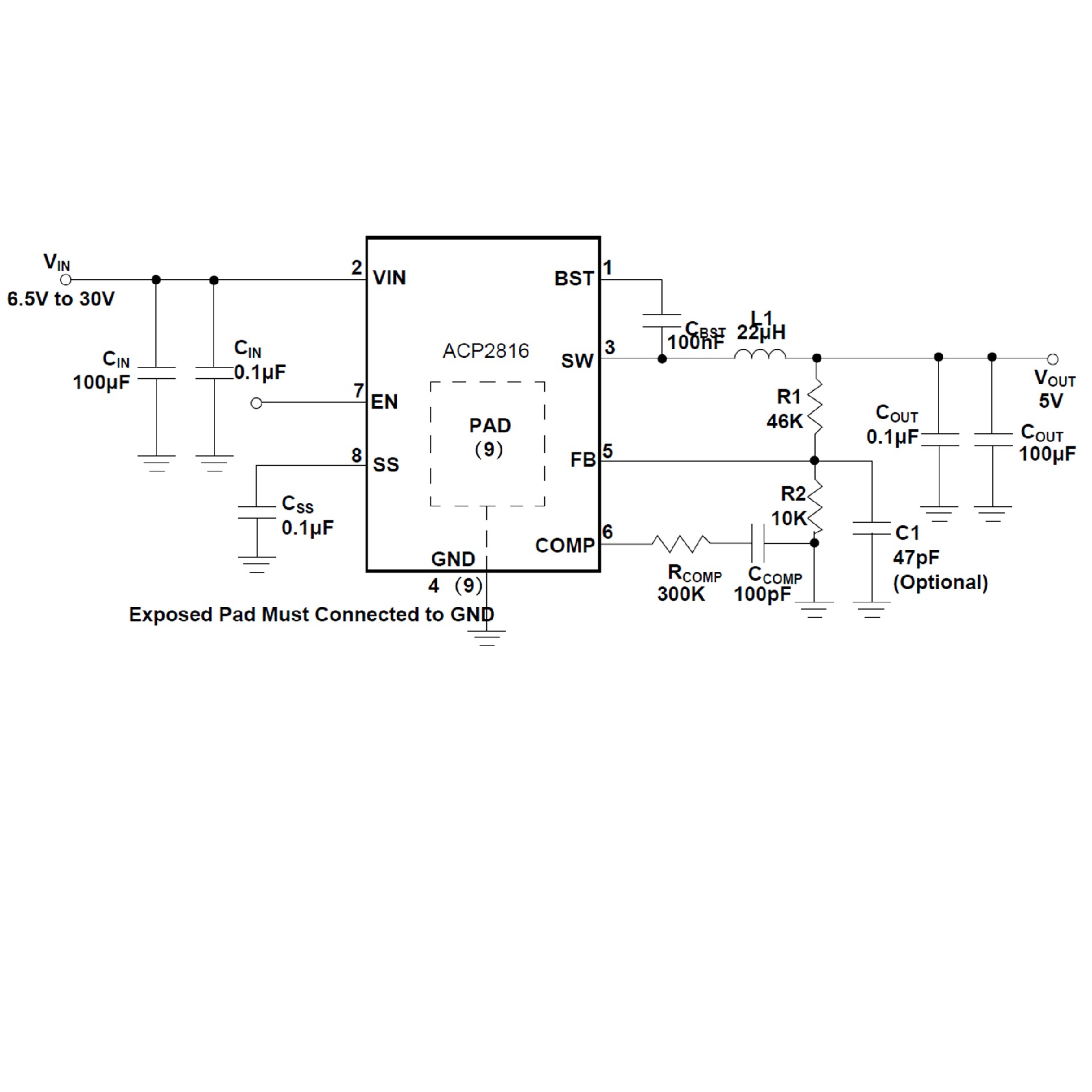

The ACP2816 are monolithic buck DC/DC converter which can provide 3A continuous load current over 6.5V to 30V wide input voltage range. The devices are set with 33V input over-voltage protection and 6.5V under-voltage Lockout protection. They have peak current mode control provides fast transient responses and cycle-by-cycle current limiting. Other features include programmable soft-start and over temperature protection. The device is available in general SOP8-EP package.
