ACP1252.pdf
No.13169
? 2.7V to 5.5V Input Voltage Range
? 2.1A Accurate Current Limiting Threshold
? Fast Transient Response:
? Max 1A quiescent current with shutdown
? Low 90m Typical RDS(ON)
? Reverse Current Blocking
? Thermal Shutdown and Over-current Protection
? Fault report with 8ms typical blanking time
? -40 to 85°C Operation Temperature range

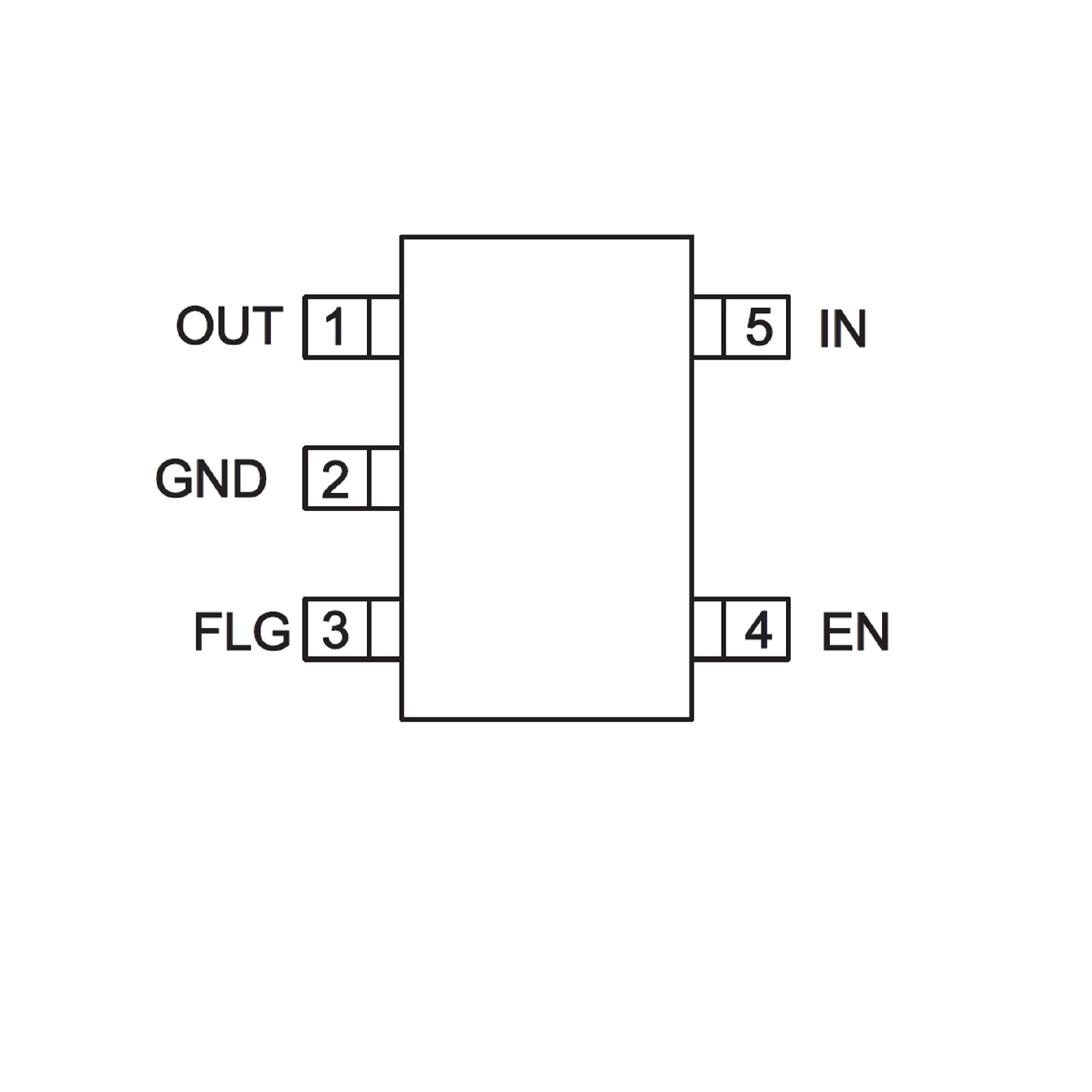

? Available in SOT23-5L and DFN2018-6L package

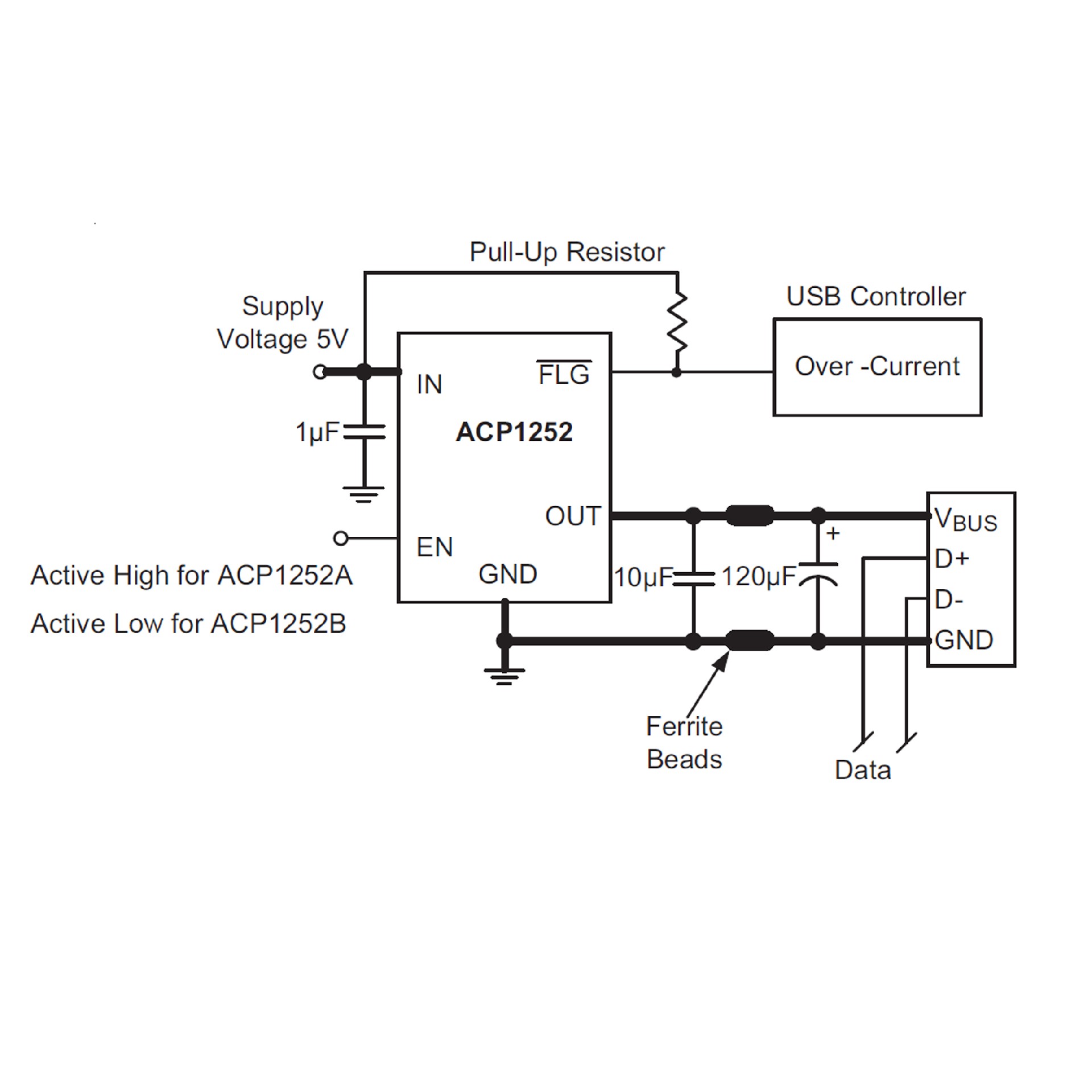

The ACP1252 is a current limit power switch designed for
load-switching applications. The current limit threshold be set
at an accurate 2.1A. The integrated current-limiting circuit
protects the input supply against large currents which may
cause the supply to fall out of regulation. They offer current
and thermal limiting and short circuit protection as well as
controlled rise time and under-voltage lockout functionality. A
8ms deglitch capability on the open-drain Flag output prevents
false over-current reporting and does not require any external
components.
