N-Channel Logic Level Enhancement Mode Field Effect Transistor
PW5D8EA
PW5D8EA.pdf
No.10594
FEATURES
? Pb?Free, Halogen Free and RoHS compliant.
? Low RDS(on) to Minimize Conduction Losses.
? Ohmic Region Good RDS(on) Ratio.
? Optimized Gate Charge to Minimize Switching Losses.
? ESD Protection - HBM Class : 1C
DESCRIPTION
? N-Channel Logic Level Enhancement Mode Field Effect Transistor

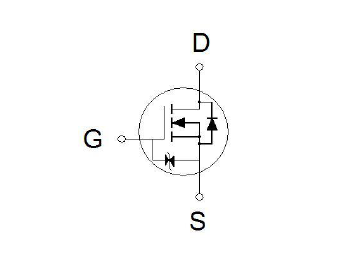

APPLICATION CIRCUIT

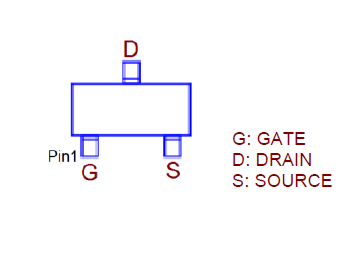

PIN CONFIGUTION
