2.5W Filterless Class-D Mono Audio Amplifier
PAM8302AASCR PAM8302AASCR.pdf

No.10587

FEATURES

? 2.5W Output at 10% THD with a 4Ω Load and 5V Power Supply

? Filterless, Low Quiescent Current and Low EMI

? High Efficiency up to 88%

? Superior Low Noise

? Short Circuit Protection

? Thermal Shutdown

? Few External Components to Save Space and Cost

? MSOP-8, SO-8 and U-DFN3030-8 Packages Available

DESCRIPTION

The PAM8302A is a 2.5W Class-D mono audio amplifier. Its low THD+N feature offers high-quality sound reproduction. The new filterless architecture allows the device to drive speakers directly instead of using low-pass output filters thus saving system cost and PCB area. With the same number of external components, the efficiency of the PAM8302A is much better than that of Class-AB cousins. It can optimize battery life thus is ideal for portable applications.

The PAM8302A is available in MSOP-8, SO-8, and U-DFN3030-8 packages.

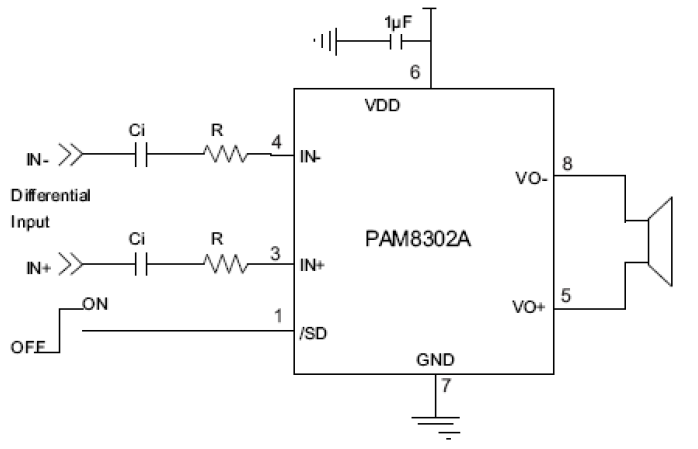

APPLICATION CIRCUIT

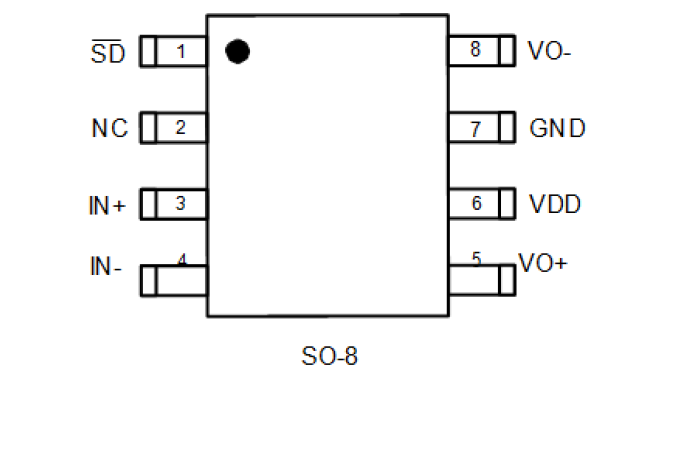

PIN CONFIGUTION
