N2576SG-5.pdf
No.11090
● Pin compatible with industry products of LM2576 Series
● Fixed 5V output version
● Wide output voltage range, 1.23V to 27V for adjustable
output version
● DC-to-DC buck converter requiring only 4 external parts
● 52 KHz fixed frequency internal oscillator
● TTL shutdown capability, low power stand -by mode
● High efficiency
● Uses readily available standard inductors
The N2576 Series switching voltage regulators (SVR) are monolithic integrated circuits that provide all the active functions for a step-down (buck) switching regulator, Both series are capable of driving 3 A load respectively with excellent line and load regulation.

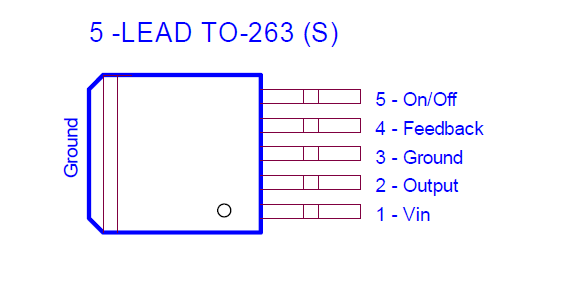

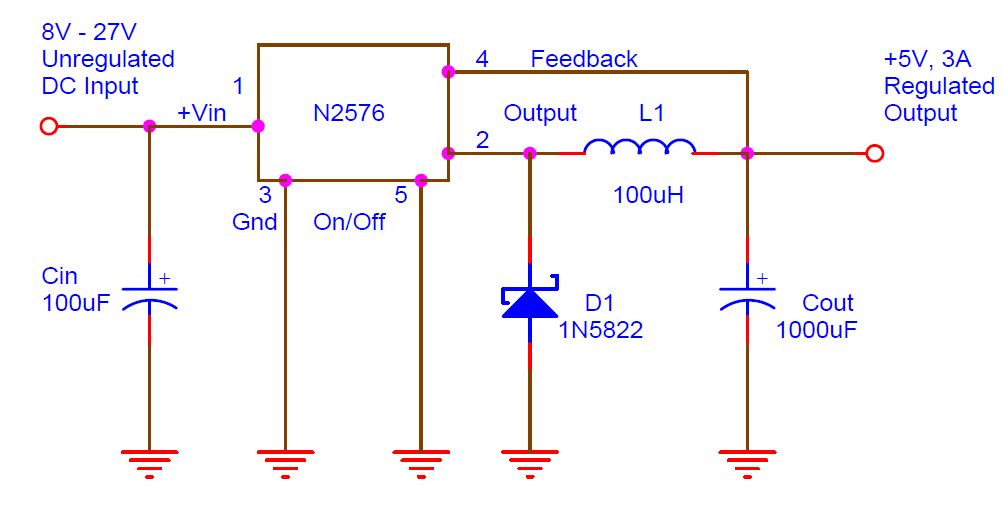

The N2576 Series SVR include a switching regulator and compensation network all within the same package. Just add a choke, catch diode and two capacitors to obtain an efficient DC-to-DC converter. The output switch includes cycle-by-cycle current limit -ing, as well as thermal shutdown for full protection under fault conditions.
The N2576 Series SVR offer replacement for popular 3 terminal linear regulators by providing higher efficiency with reduced heat sink size. In many applications a heat sink will not be required.
