Surface Mount Surface Mount Rectifiers
FB3100D
FB3100D.pdf
FB3100D.pdf
No.11091
FEATURES
? Very low profile package
? High efficiency
? Extremely fast switching
? Negligible switching losses
? Low forward voltage drop, low power loss
? Qualified to AEC-Q101 Rev_C
DESCRIPTION

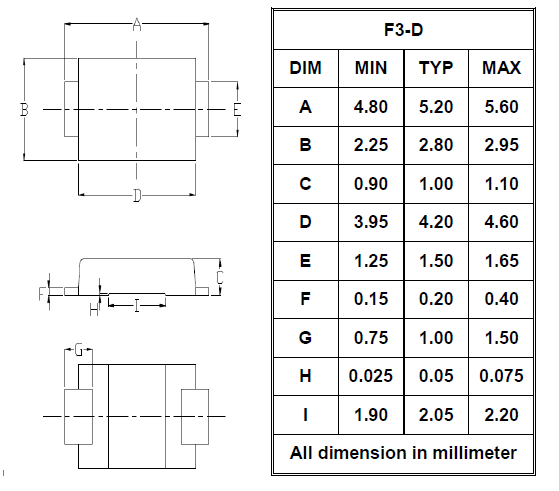

? Case: JEDEC DO-221AC
? Case Material: “Green” molding compound, UL Flammability
classification 94V-0,(No Br. SB. Cl.) “Halogen-free”.
? Moisture Sensitivity: Level 1 per J-STD-020
? Lead free finish, RoHS compliant
? Weight:0.0354 grams (Approximate)
? Marking code: B3100
APPLICATION CIRCUIT
PIN CONFIGUTION
