EUP7201-3.3/3.3VIR1.pdf
No.10560
? Up to 150mA Output Current (Each LDO)
? Dual Shutdown Pins Control Each Output
? 124μVRMS Low Noise Output
? Current Limiting and Thermal Protection
? Short Circuit Protection
? 100mV Dropout at 100mA Load
? Current Limiting Protection

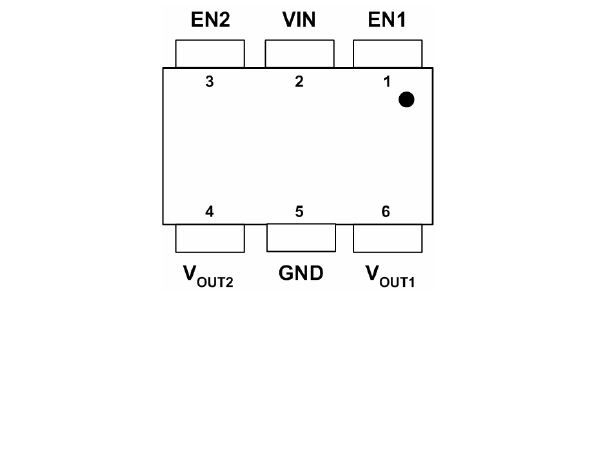

? Available in SOT23-6 ,TDFN-6 and USP-6 Package
? RoHS Compliant and 100% Lead (Pb)-Free
The EUP7201 is highly accurate, Dual, low noise, CMOS LDO voltage regulator. Performance features include low output noise, high ripple rejection ratio, low dropout and very fast turn-on times. The EUP7201 is also fully compatible with low ESR ceramic capacitors, reducing cost and improving output stability. This high level of output stability is maintained even during frequent load fluctuations, due to the excellent transient response performance and high PSRR achieved across a broad range of frequencies.
The EN function allows the output of each regulator to be turned off independently, resulting in greatly reduced power consumption. The EUP7201 is available in the SOT23-6 , TDFN-6 and USP-6 package.
