Surface Mount Fast Switching Diode
BAV70T-7-F
BAV70T-7-F.pdf
BAV70T-7-F.pdf
No.11108
FEATURES
? Ultra-Small Surface Mount Package
? Fast Switching Speed
? For General Purpose Switching Applications
? High Conductance
DESCRIPTION
? Case: SOT-523
? Case Material: Molded Plastic, “Green” Molding Compound;
UL Flammability Classification Rating 94V-0
? Moisture Sensitivity: Level 1 per J-STD-020

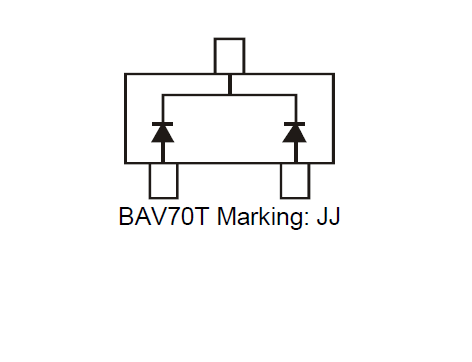

APPLICATION CIRCUIT

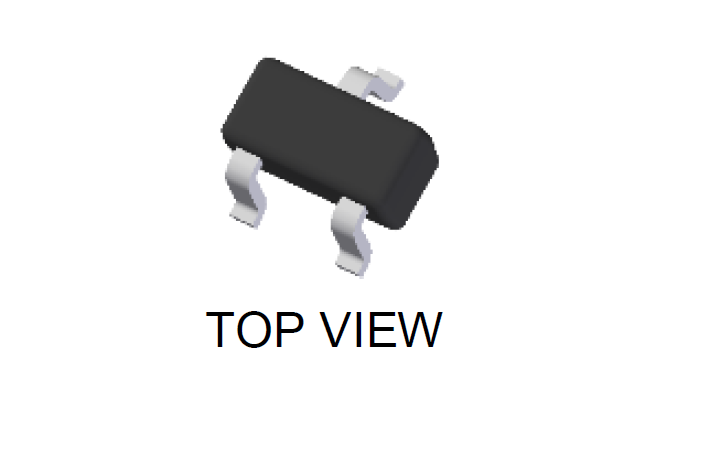

PIN CONFIGUTION
