AZ431AR-ATRE1.pdf
No.10539
? Programmable Precise Output Voltage from 2.5V to 36V
? High Stability under Capacitive Load
? Low Temperature Deviation: 4.5mV Typical
? Low Equivalent Full-range Temperature Coefficient
? Sink Current Capacity from 1mA to 100mA
? Low Output Noise
? Wide Operating Range of -40 to +125°C

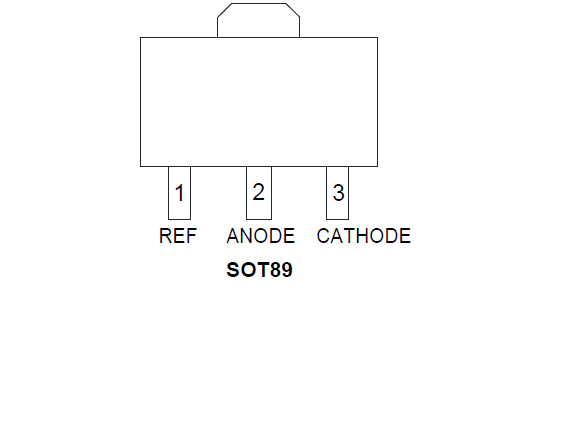

? Lead-Free Packages: TO92, SOT23, SOT89

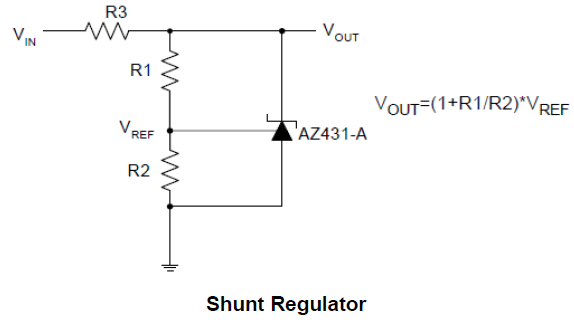

The AZ431-A is a three-terminal adjustable shunt regulator with guaranteed thermal stability over a full operation range. It features sharp turn-on characteristics, low temperature coefficient and low output impedance, which make it ideal substitute for Zener diode in applications such as switching power supply, charger and other adjustable regulators. The output voltage of AZ431-A can be set to any value between VREF (2.5V) and the corresponding maximum cathode voltage (36V).
The AZ431-A precision reference is offered in two voltage tolerance: 0.4% and 0.8%
