AP2301SG-13.pdf
No.11097
? Single channel current-limited power switch
? Output discharge function
? Fast short-circuit response time: 2μs
? 2.5A accurate current limiting
? Reverse current blocking
? 70mΩ on-resistance
? Input voltage range: 2.7V - 5.5V
? Built-in soft-start with 0.6ms typical rise time
? Over-current and thermal protection
? Fault report (FLG) with blanking time (7ms typ)
? ESD protection: 2kV HBM, 200V MM
? Ambient temperature range: -40°C to +85°C

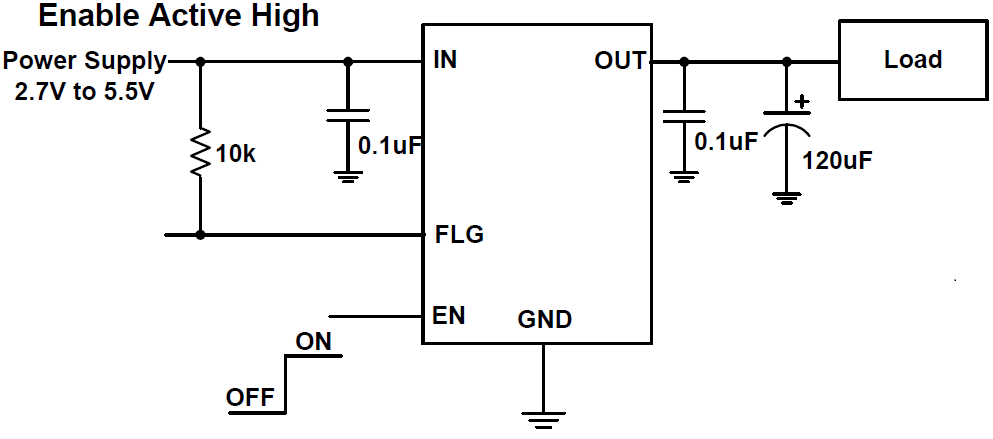

The AP2301 and AP2311 are single channel current-limited integrated high-side power switches optimized for Universal Serial Bus (USB) and other hot-swap applications. The family of devices complies with USB standards and is available with both polarities of Enable input. The devices have fast short-circuit response time for improved overall system robustness, and have integrated output discharge function to ensure completely controlled discharging of the output voltage capacitor. They provide a complete protection solution for applications subject to heavy capacitive loads and the prospect of short circuit, and offer reverse current blocking, over-current, over-temperature and short-circuit protection, as well as controlled rise time and undervoltage lockout functionality. A 7ms deglitch capability on the opendrain Flag output prevents false over-current reporting and does not require any external components.

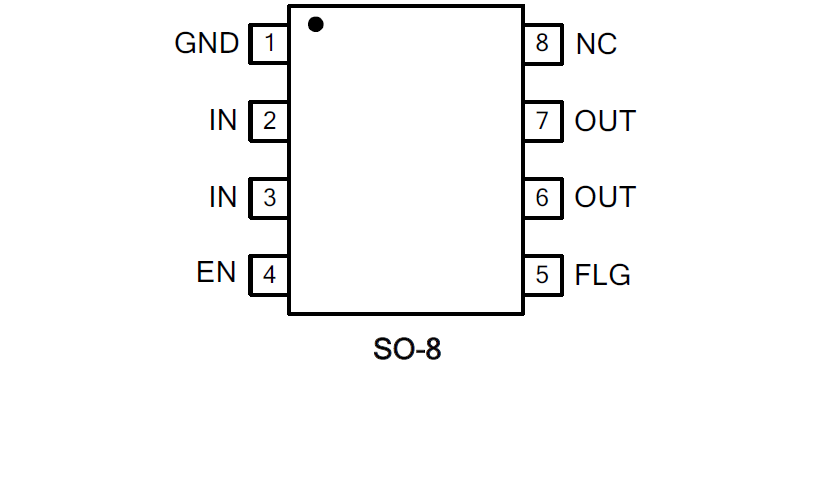

All devices are available in SO-8, MSOP-8, MSOP-8EP, U-DFN3030- 8 and U-DFN2020-6 packages.
