USB Dedicated Charging Port Controller, TMI9130C Replace TPS2513A.
TMI9130C
TMI9130C.pdf
TMI9130C.pdfFEATURES
? Supports USB DCP Shorting D+ Line to D–
Line per USB Battery Charging Specification,
Revision 1.2 (BC1.2)
? Supports Shorted Mode (Shorting D+ Line to
D-Line) per Chinese Telecommunication
Industry Standard YD/T 1591-2009
? Supports USB DCP Applying 2.7V on D+ Line
and 2 .7V on D-line
? Supports USB DCP Applying 1.2V on D+ and
D–Lines
? Automatically Switch D+ and D- Lines
Connections for an Attached Device
? Single USB Port Controller(TMI9130D)
? Dual USB Port Controller(TMI9130C)
? Operating Range: 4.5 V to 5.5 V
? Available in SOT23-6 Package

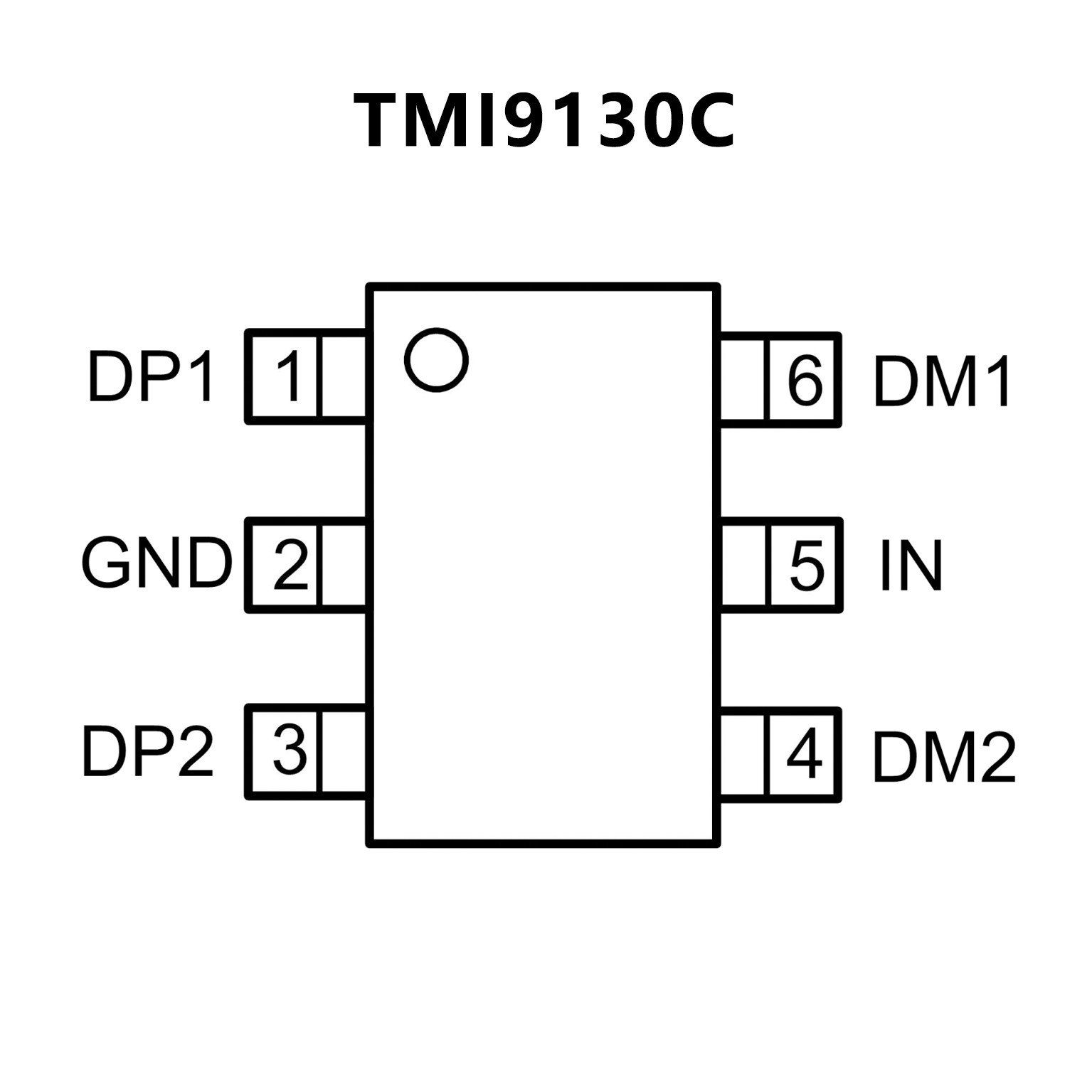

PIN CONFIGUTION
優(yōu)勢(shì)替代
FEATURES
? Supports USB DCP shorting D+ line to
D– line per USB battery charging specification,
revision 1.2 (BC1.2)
? Supports shorted mode (shorting D+ line to D–
line) per Chinese Telecommunication Industry
Standard YD/T 1591-2009
? Supports USB DCP applying 2.7V on D+ Line
and 2 V on D- line (or USB DCP applying 2V on
D+ line and 2.7 V on D– line) (TPS2513,TPS2514)
? Supports USB DCP applying 2.7V on D+ line and
2.7 V on D- line (TPS2513A, TPS2514A)
? Supports USB DCP applying 1.2V on D+ and D–Lines
? Automatically Switch D+ and D– Lines
Connections for an Attached Device
? Dual USB Port Controller (TPS2513, TPS2513A)
? Single USB port controller (TPS2514, TPS2514A)
? Operating range: 4.5 V to 5.5 V
? Available in SOT23-6 package

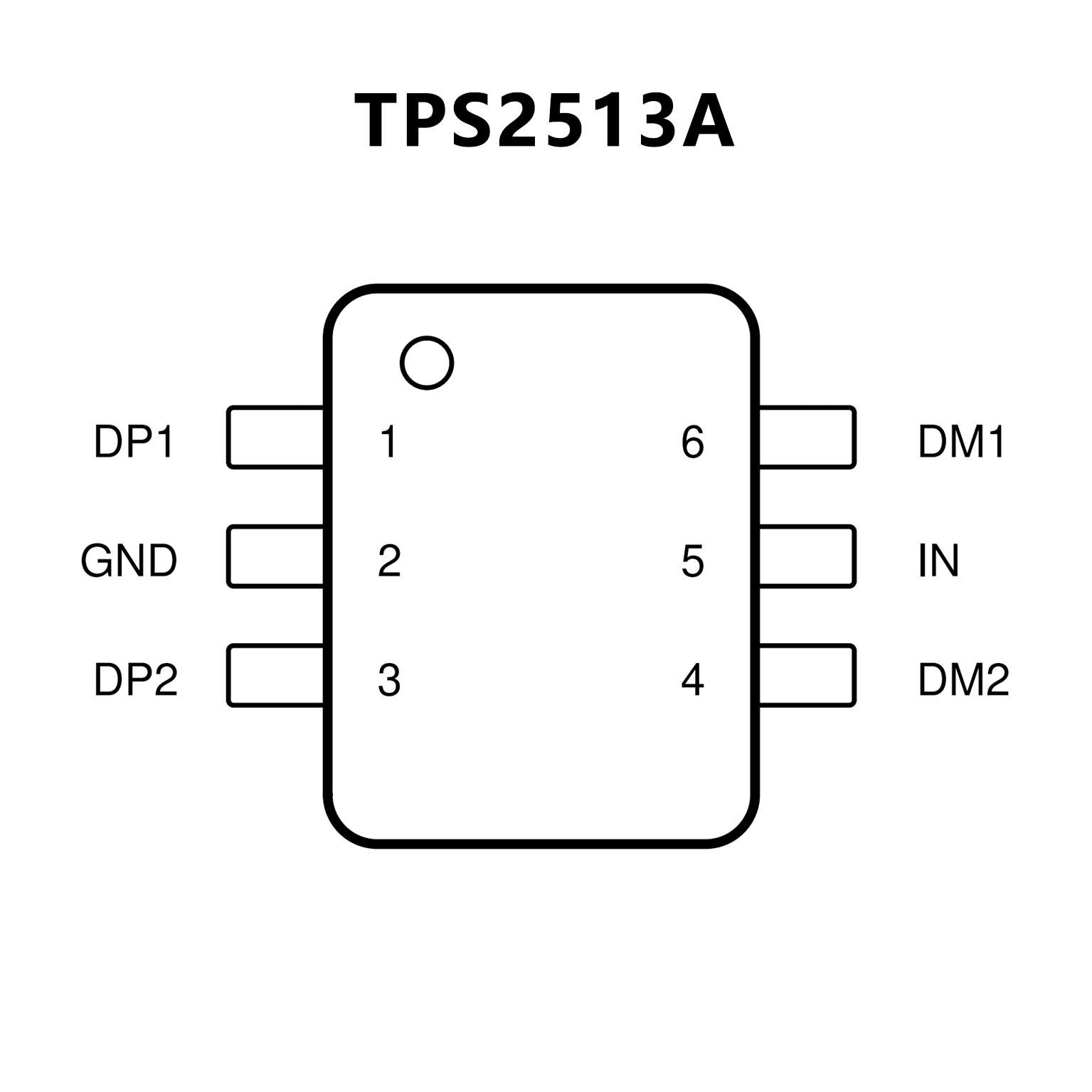

PIN CONFIGUTION
