Low Iq Supply Voltage Supervisory in SOT23-3, TMI6810 Replace TLV810.
TMI6810
TMI6810.pdf
TMI6810.pdfFEATURES
? Operating Supply Voltage: 1.0V to 5.5V
? ±2% Reset Threshold Accuracy
? Low Quiescent current: 5μA (typically)
? Push-Pull Active High RESET Output
? 240ms Power-On Reset Delay
? Reset Output Drive Current: 3mA
? 3-Pin SOT23-3 Package

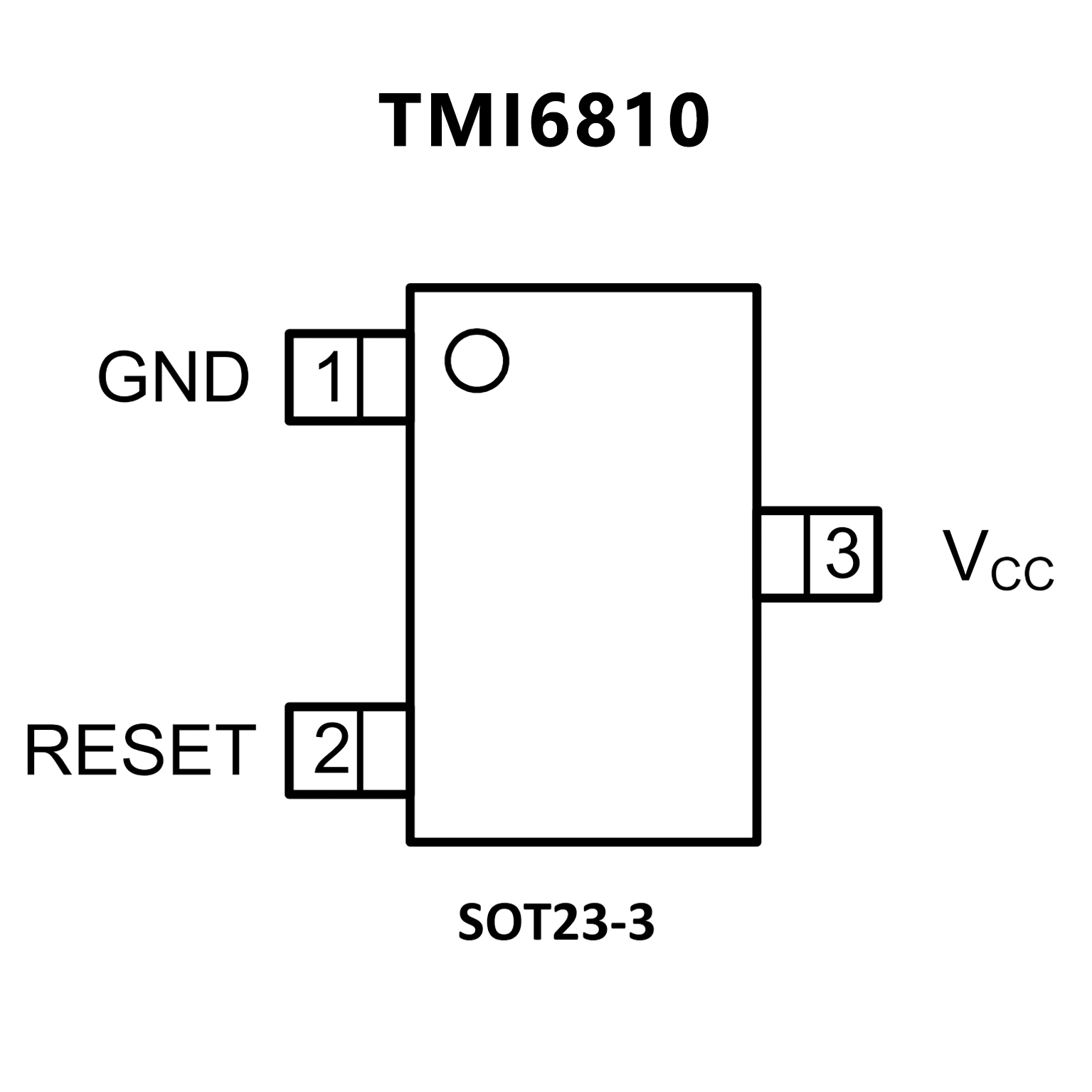

PIN CONFIGUTION
優勢替代
FEATURES
? 3-Pin SOT23 Package
? Supply Current: 9 μA (Typical)
? Precision Supply Voltage Monitor:
2.5 V, 3 V, 3.3 V, 5 V
? Power-On Reset Generator with
Fixed Delay Time of 200 ms
? Pin-for-Pin Compatible with MAX810
? Temperature Range: –40°C to +125°C
? Push-Pull, RESET Output

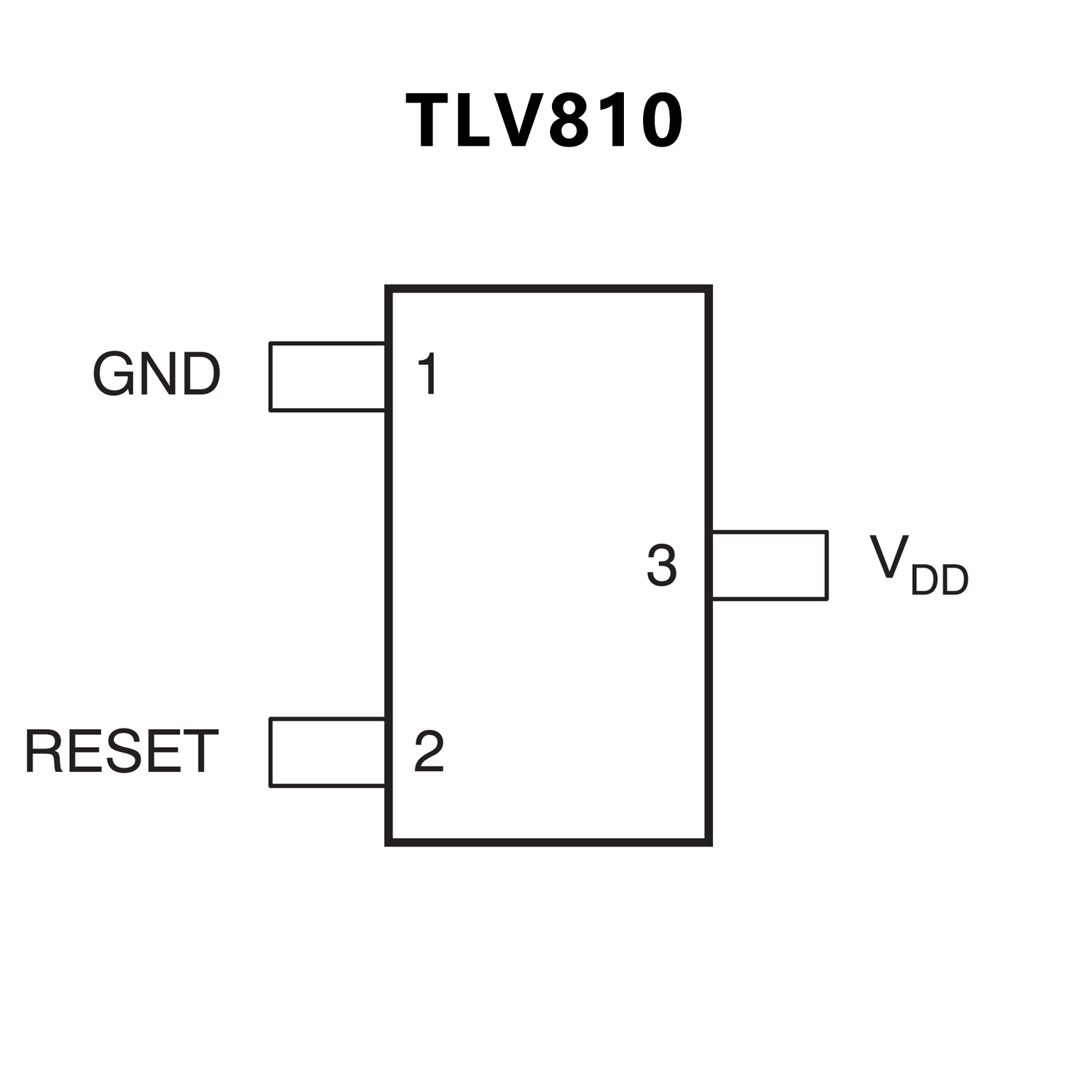

PIN CONFIGUTION
