300mA, Low noise, High PSRR, High speed, CMOS LDO Regulators with fixed Voltage, TMI6036 P2P TLV743P.
TMI6036/A/D
TMI6036/A/D.pdf
TMI6036/A/D.pdfFEATURES
? VIN Voltage Range: 1.4V to 5.5V
? Fixed Output Voltage Version: 0.9V, 1.0V,
1.2V, 1.3V, 1.5V, 1.8V, 2.5V, 2.8V, 3.0V, 3.3V
? Output Current: 300mA
? Quiescent Current: 50μA Type
? Shut-down Current: <1μA
? Low Dropout Voltage:
170mV@IOUT=0.3A, VOUT=3.3V
? PSRR: 85dB@1kHz, VOUT=2.8V
? Low Output Voltage Noise:
16μVRMS@IOUT=10mA, VOUT=0.9V
50μVRMS@IOUT=10mA, VOUT=2.8V
? Output Voltage Tolerance: ±1.5%
? Thermal-Overload and Short-Circuit Protection
? Package of TMI6036-XX: SOT23-5
? Package of TMI6036D-XX: DFN1x1-4

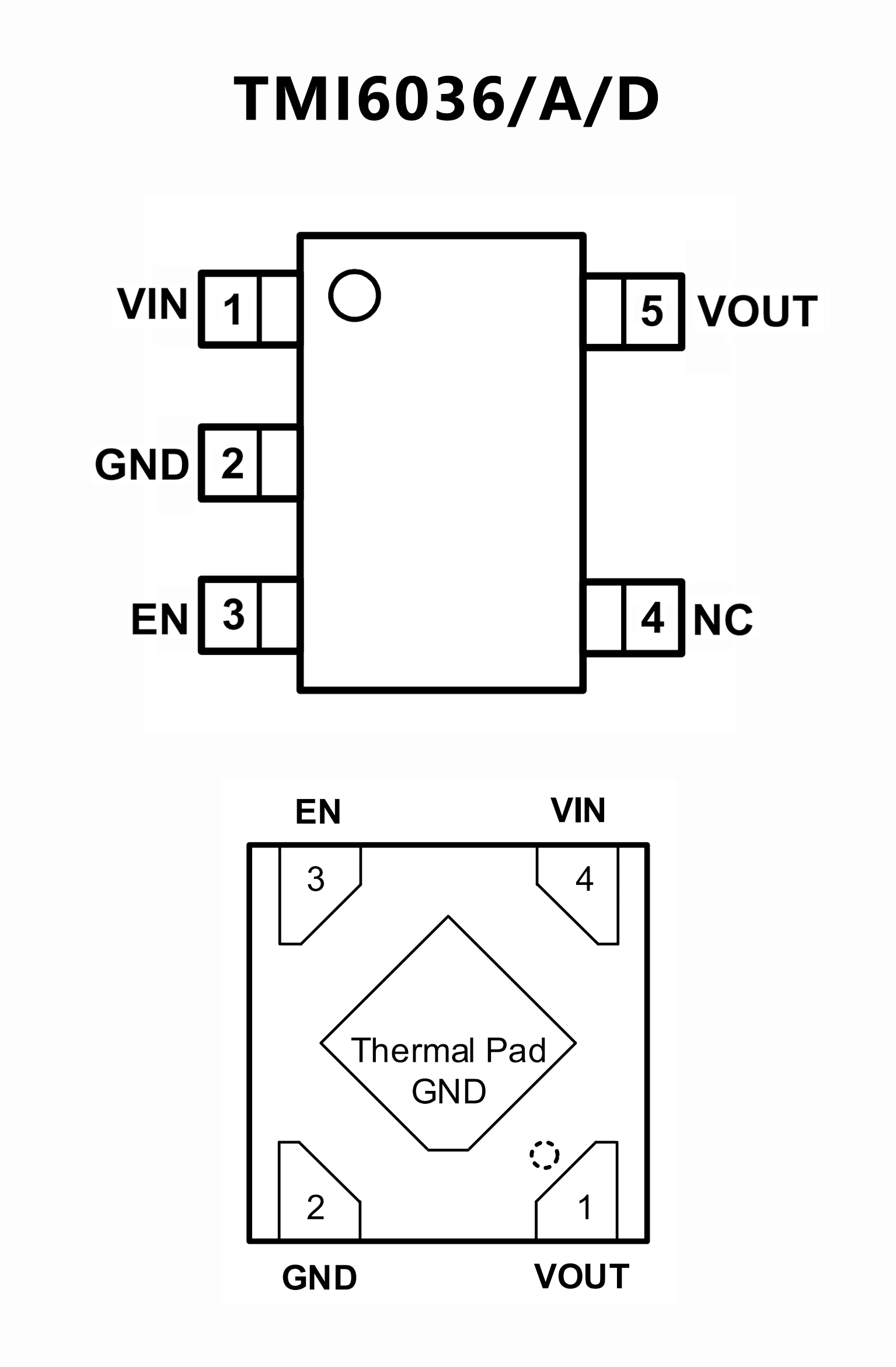

PIN CONFIGUTION
優(yōu)勢(shì)替代
FEATURES
? Input Voltage Range: 1.4 V to 5.5 V
? Stable Operation With 1-μF Ceramic Output
Capacitor
? Foldback Overcurrent Protection
? Packages:
– SOT-23 (5)
– X2SON (4)
? Very Low Dropout: 125 mV at 300 mA (3.3 VOUT)
? Accuracy: 1% (Typical), 1.4% (Maximum)
? Low IQ: 34 μA
? Available in Fixed-Output Voltages:
1 V to 3.3 V
? High PSRR: 50 dB at 1 kHz
? Active Output Discharge

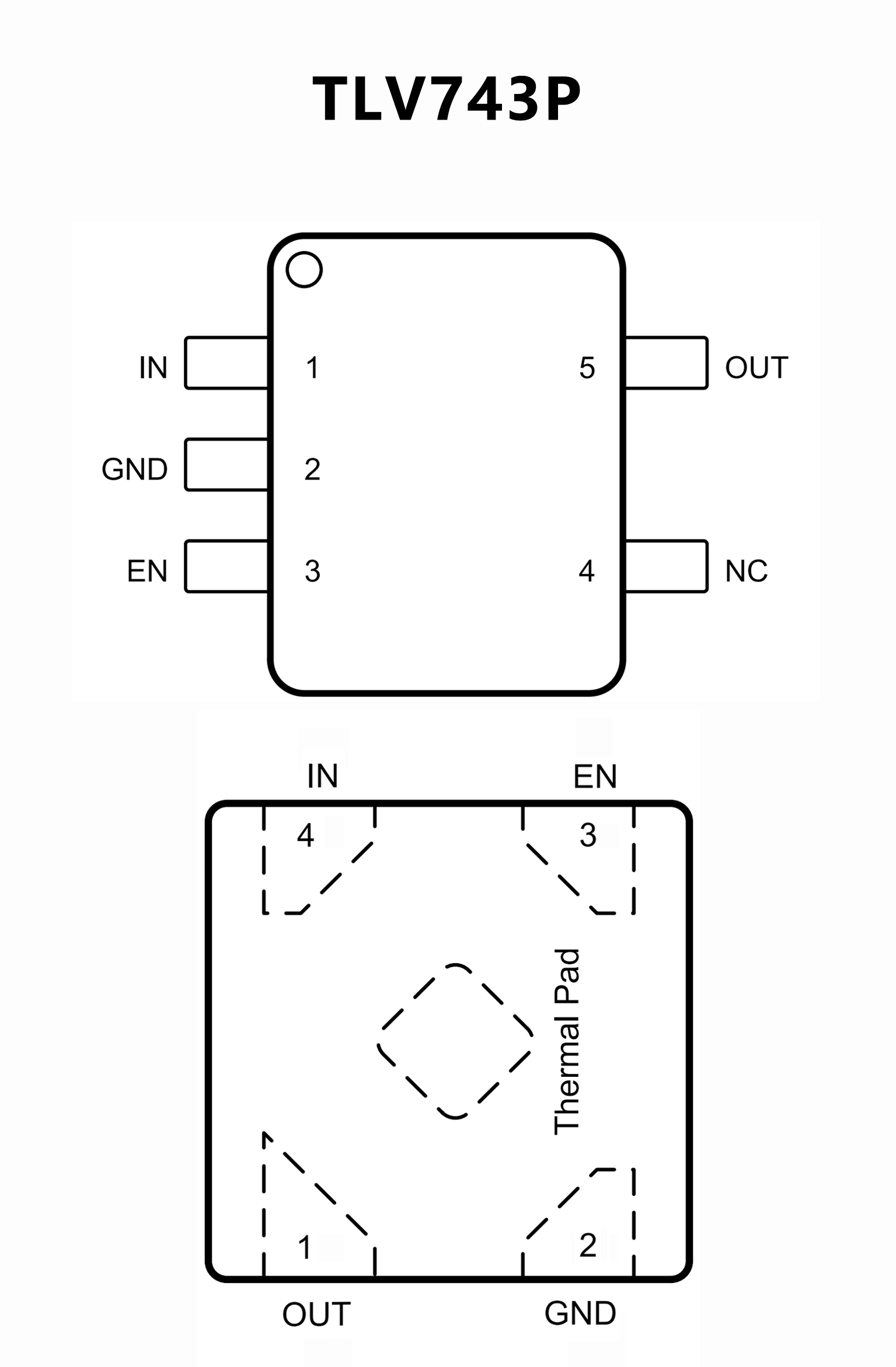

PIN CONFIGUTION
