Dual-Bridge Motor Controller IC, TMI8262 Replace DRV8812.
FEATURES

? 8-V to 40-V Operating Supply Voltage Range

1.6-A Maximum Drive Current at 24 V and

  TA=25℃

? Dual H-Bridge Current Control Motor

   Drive a Bipolar Stepper or Two DC Motors

   Four Level Winding Current Control

? Multiple Decay Modes

   Mixed Decay

   Slow Decay

   Fast Decay

? Industry Standard Parallel Digital Control

  Interface

? Low Current Sleep Mode

? Built In 3.3-V Reference Output Small Package

   and Footprint

? Protection Features

  Overcurrent Protection (OCP)

  Thermal Shutdown (TSD)

  VM Undervoltage Lockout (UVLO)

   Fault Condition Indication Pin (nFAULT)

? Small Packages

  TMI8262: HTSSOP28

  TMI8282Q: QFN5x5-28

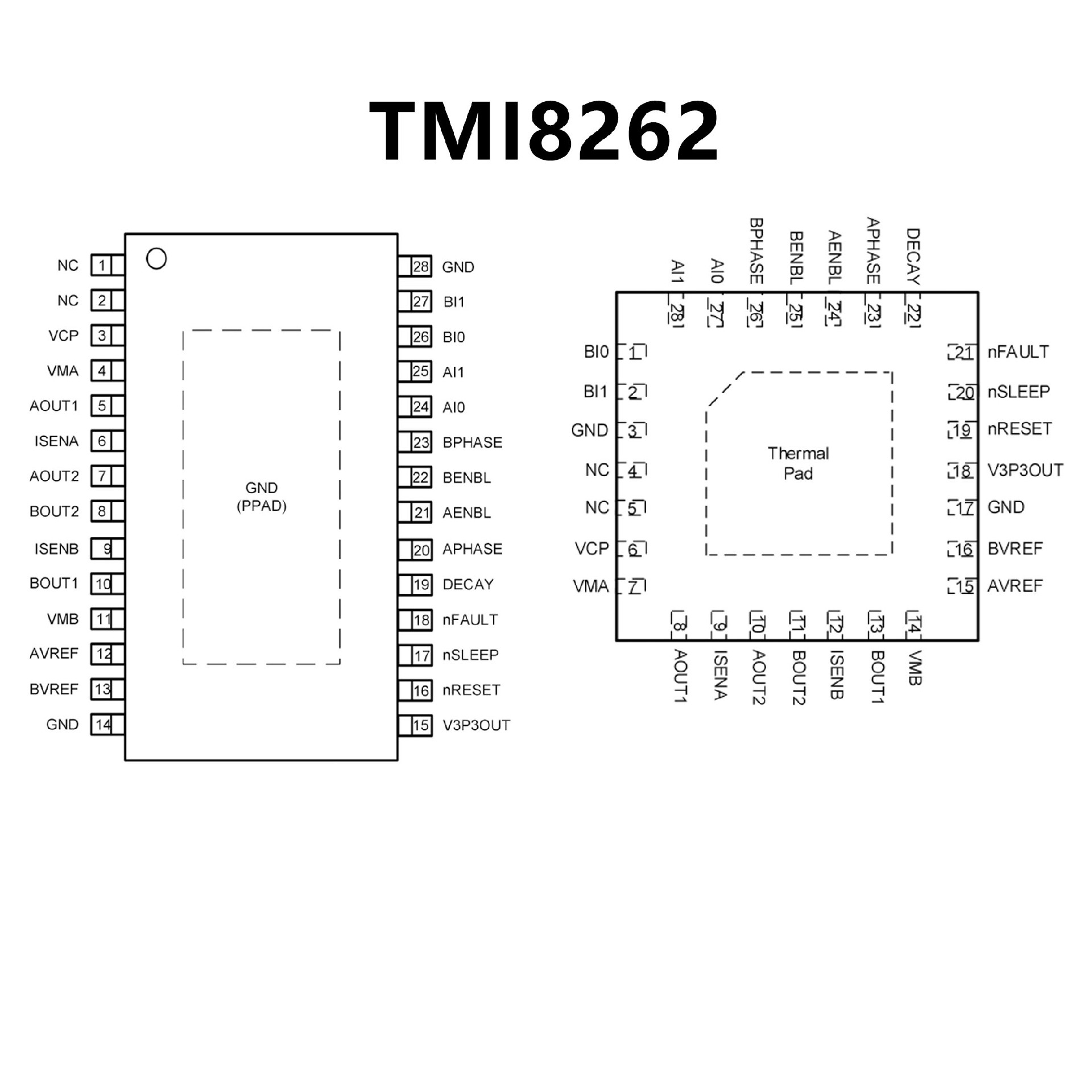

PIN CONFIGUTION
優勢替代
DRV8812 DRV8812.pdf

No.11566

FEATURES

? 8.2-V to 45-V Operating Supply Voltage Range

? 1.6-A Maximum Drive Current at 24 V and

   TA = 25°C

? Dual H-Bridge Current Control Motor Driver

   Drive a Bipolar Stepper or Two DC Motors

   Four Level Winding Current Control

? Multiple Decay Modes

   Mixed Decay

   Slow Decay

   Fast Decay

? Industry Standard Parallel Digital Control Interface

? Low Current Sleep Mode

? Built In 3.3-V Reference Output Small Package

   and Footprint

? Protection Features

   Overcurrent Protection (OCP)

   Thermal Shutdown (TSD)

   VM Undervoltage Lockout (UVLO)

   Fault Condition Indication Pin (nFAULT)

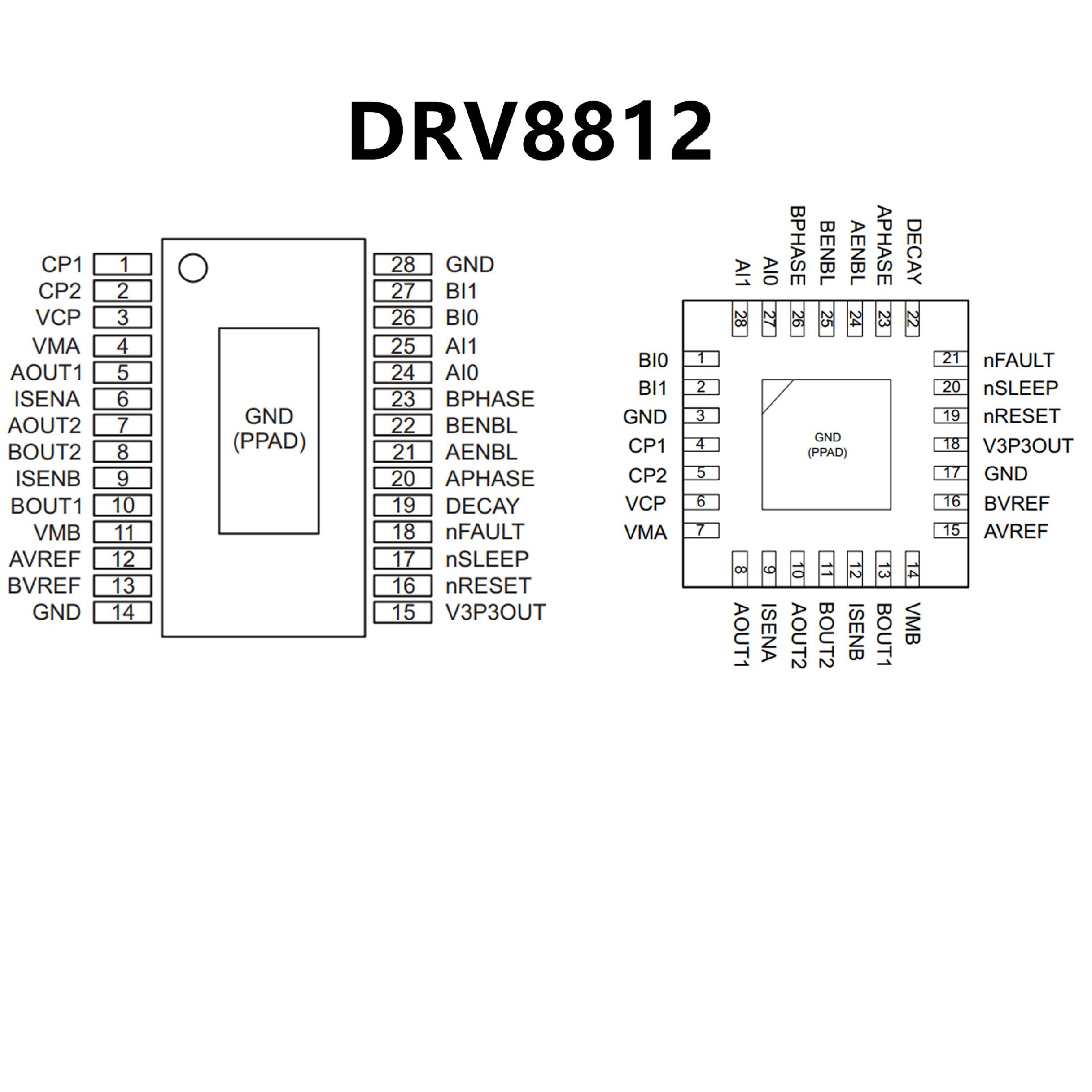

PIN CONFIGUTION
