600kHz, Low Noise,High Voltage, Precision Operational Amplifier, SGMOP07C Replace TLE214422.
SGMOP07C
SGMOP07C.pdf
SGMOP07C.pdfFEATURES
? Rail-to-Rail Output
? Low Bias Current: ±1nA (TYP)
? High Open-Loop Gain: 130dB at VS = ±15V
? High PSRR: 135dB
? Gain-Bandwidth Product: 600kHz
? Low Noise: 8.5nV/√Hz at 1kHz
? Supply Voltage Range:
3.6V to 36V or ±1.8V to ±18V
? Input Common Mode Voltage Range:
(-VS) + 1.5V to (+VS) - 2V
? Low Quiescent Current: 0.75mA (TYP)
? -40℃ to +125℃ Operating Temperature Range
? Available in a Green SOIC-8 Package

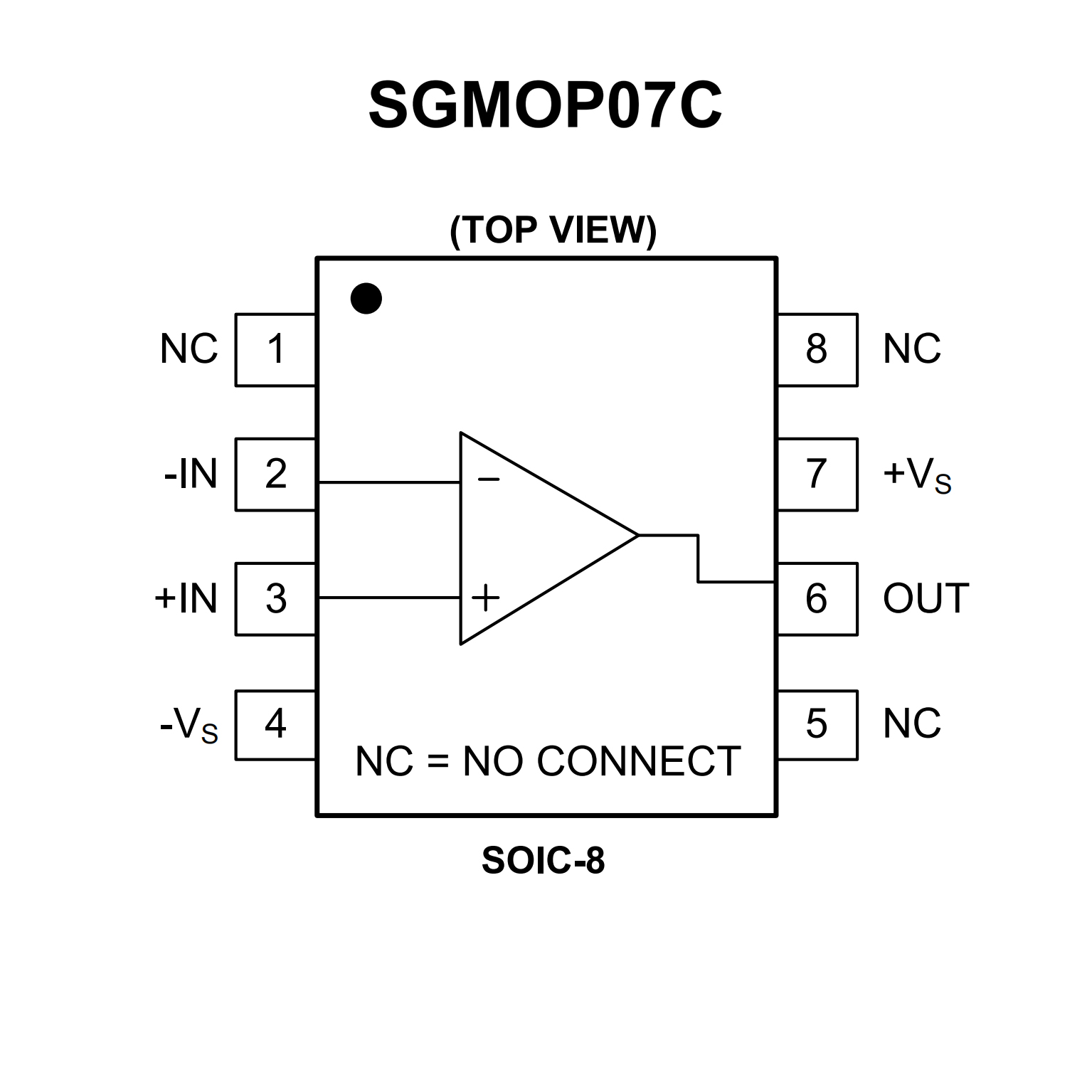

PIN CONFIGUTION
