8-Channel, 12-Bit, Configurable ADC/DAC with On-Chip Reference, SPI Interface, SGM90509 P2P AD5592.
SGM90509
SGM90509.pdf
SGM90509.pdfFEATURES
? Configurable 8 I/O Pins
8 Channels, 12-Bit DAC
8 Channels, 12-Bit ADC
8 Channels, GPIO
? On-Chip Temperature Sensor
? Supply Monitor
? SPI Interface
? Available in Green TSSOP-16, TQFN-3×3-16BL
and WLCSP-2.05×2.05-16B Packages

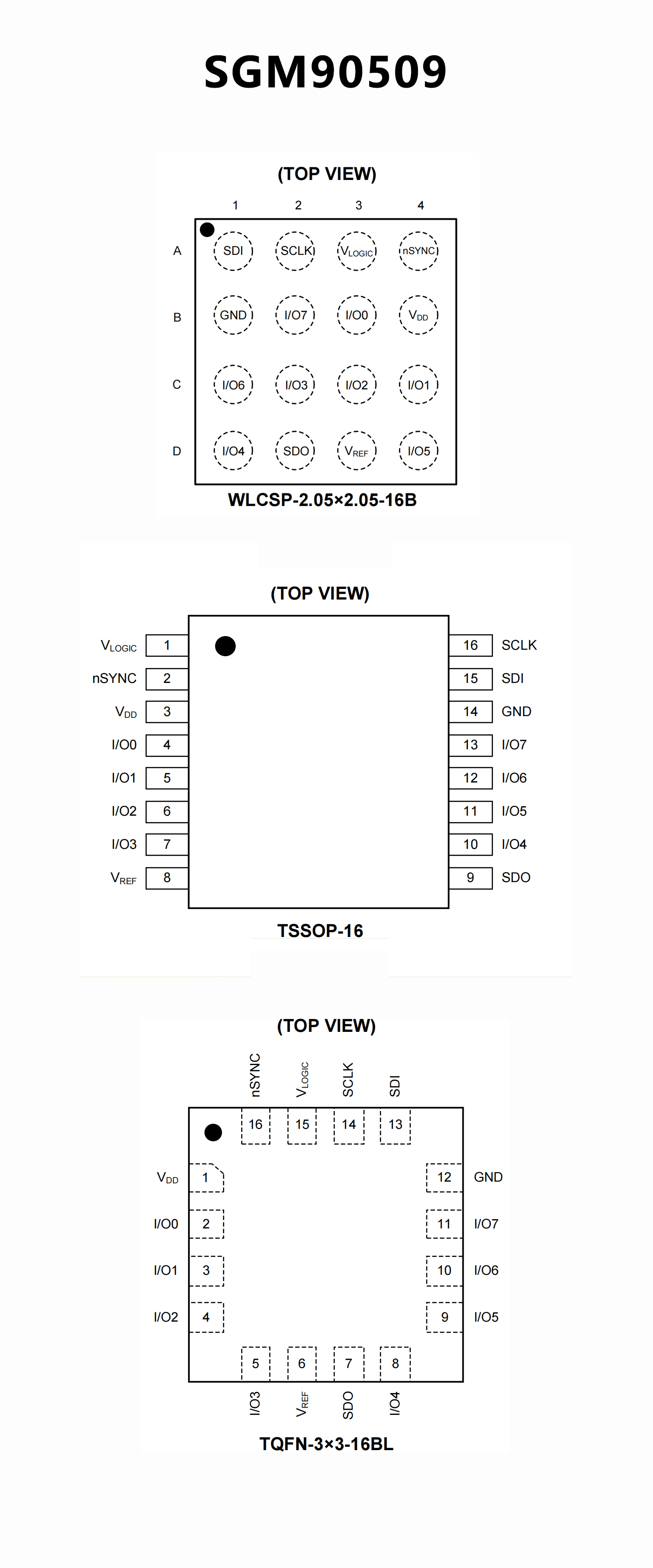

PIN CONFIGUTION
優(yōu)勢(shì)替代
FEATURES
? 8-channel, configurable ADC/DAC/GPIO
? Configurable as any combination of
8 × 12-bit DAC channels
8 × 12-bit ADC channels
8 × general-purpose digital input/output pins
? Integrated temperature sensor
? SPI interface
? 2.7 V to 5.5 V power supply
? 1.8 V logic compatibility (AD5592R-1)
? Available in
16-ball, 2 mm × 2 mm WLCSP
16-lead, 3 mm × 3 mm LFCSP
16-lead TSSOP
? AEC-Q100 qualified for automotive applications

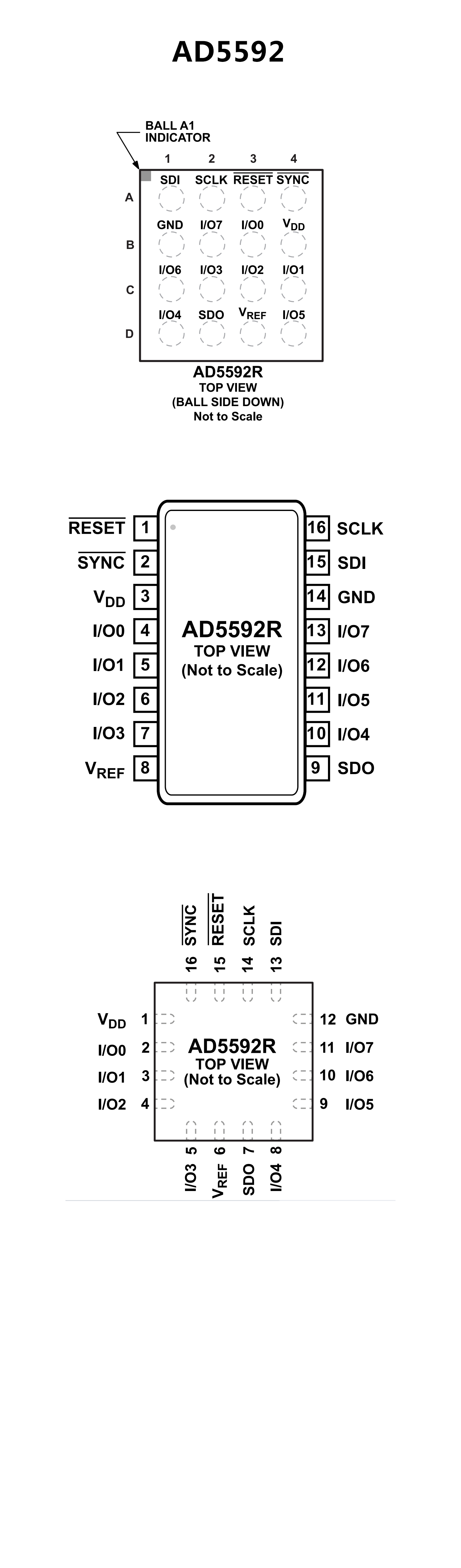

PIN CONFIGUTION
