SGM8968-4.pdf? Rail-to-Rail Input and Output
? Input Offset Voltage: 240μV (MAX)
? High Gain-Bandwidth Product: 10MHz
? High Slew Rate: 20V/μs
? Settling Time to 0.1% with 2V Step: 280ns
? Overload Recovery Time: 100ns
? Low Noise: 8nV/ Hz at 10kHz
? Supply Voltage Range: 1.8V to 5.5V
? Input Voltage Range: -0.1V
to 5.6V with VS = 5.5V
? Low Power:
Supply Current: 1.6mA/Amplifier (TYP)
? -40℃ to +125℃ Operating Temperature Range
? Small Packaging:
SGM8968-1 Available in Green SOT-23-5 and
SOIC-8 Packages
SGM8968-2 Available in Green SOIC-8 and
MSOP-8 Packages

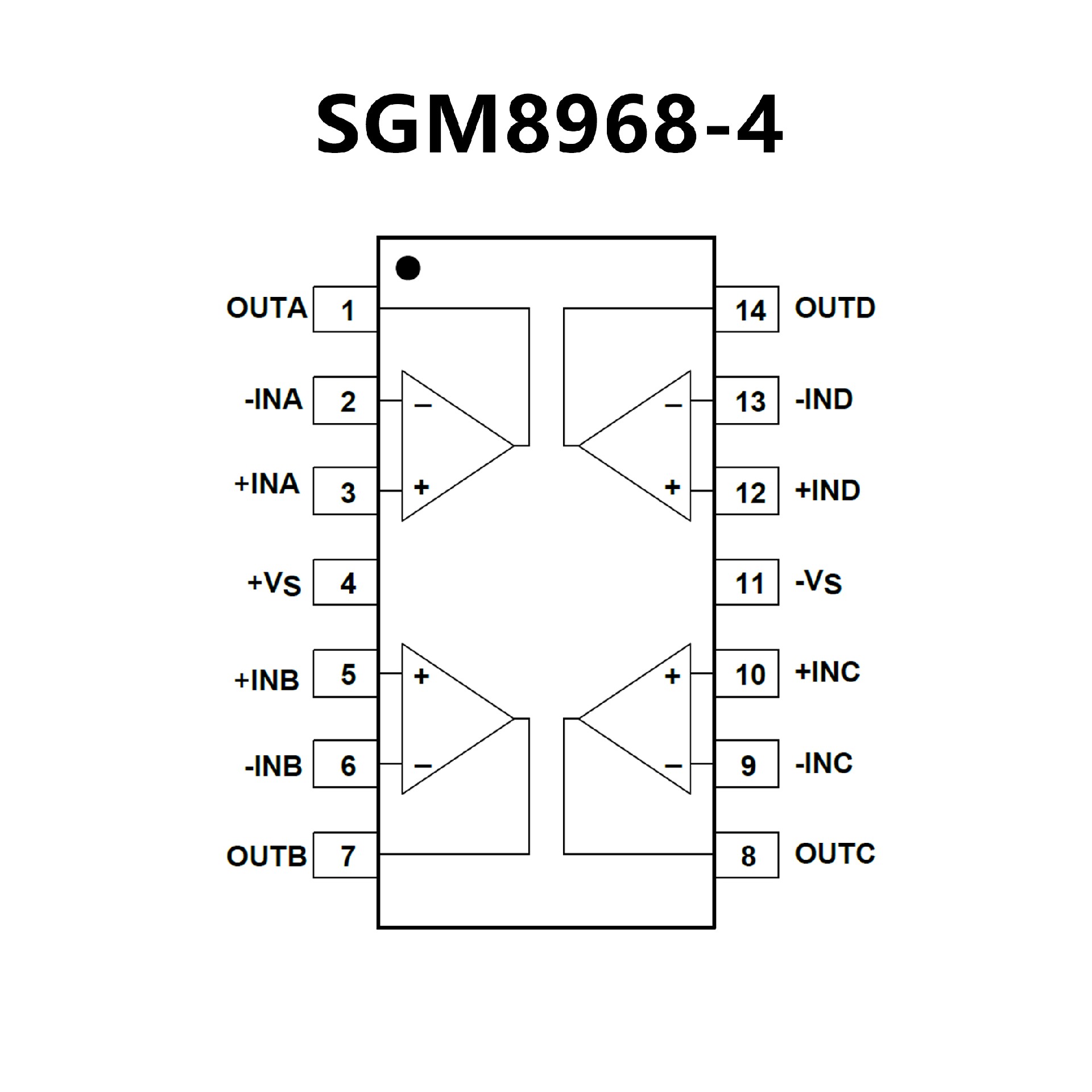

SGM8968-4 Available in Green SOIC-14 and
TSSOP-14 Packages

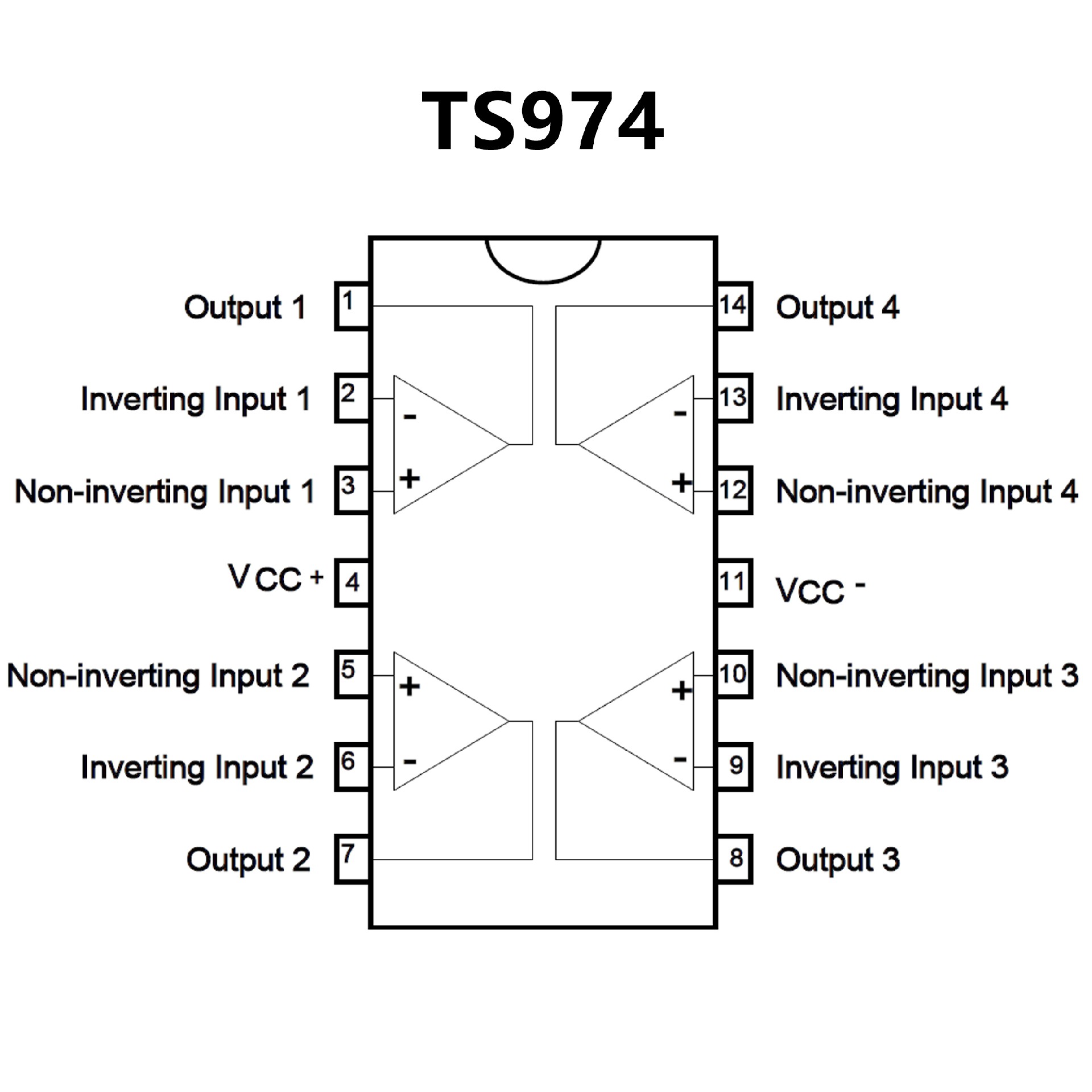

? Rail-to-rail output voltage swing ±2.4 V at
VCC = ±2.5 V
? Very low noise level: 4 nV/√Hz
? Ultra low distortion: 0.003 %
? High dynamic features: 12 MHz, 4 V/μs
? Operating range: 2.7 to 10 V
? ESD protection (2 kV)
? Latch-up immunity (class A)
