SGM8967.pdf? Rail-to-Rail Input and Output
? Input Offset Voltage: 240μV (MAX)
? High Gain-Bandwidth Product: 27MHz
? High Slew Rate: 30V/μs
? Settling Time to 0.1% with 2V Step: 120ns
? Overload Recovery Time: 60ns
? Low Noise: 8nV/ Hz at 10kHz
? Supply Voltage Range: 2.1V to 5.5V
? Input Voltage Range: -0.1V to 5.6V with VS = 5.5V
? Low Power:Supply Current: 2.7mA/Amplifier (TYP)
SGM8967-3 Supply Current when Disabled: 0.1μA (TYP)
? -40℃ to +125℃ Operating Temperature Range

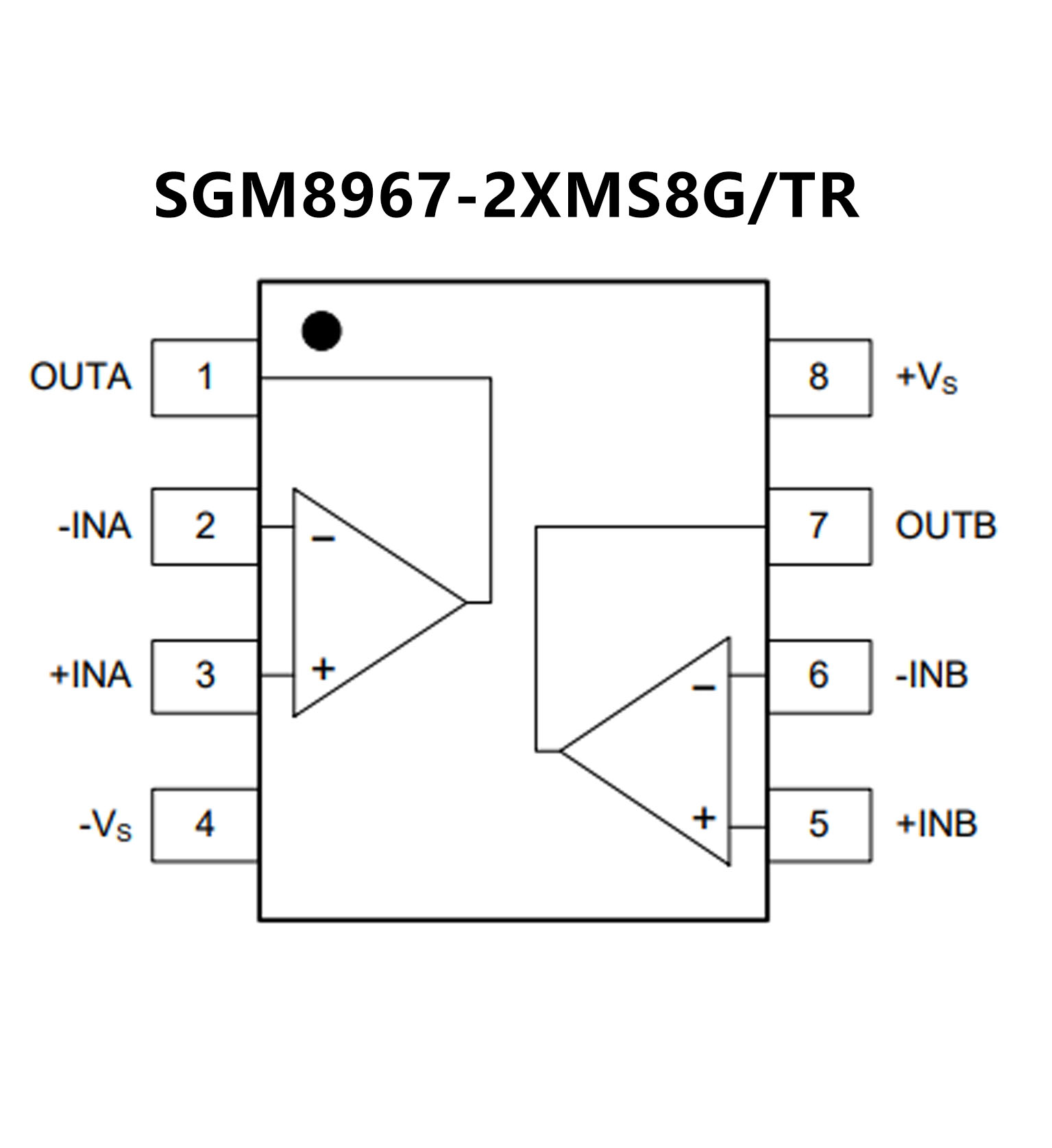

? Small Packaging:SGM8967-1 Available in Green
SOT-23-5 andSOIC-8 PackagesSGM8967-2 Available
in Green MSOP-8 andSOIC-8 PackagesSGM8967-3
Available in a Green SOT-23-6 PackageSGM8967-4
Available in Green SOIC-14 andTSSOP-14 Packages
? Low offset voltage: 65 μV maximum
? Single-supply operation: 2.7 V to 5.0 V
? Low noise: 8 nV/√Hz
? Wide bandwidth: >20 MHz
? Slew rate: 12 V/μs
? High output current: 150 mA
? No phase reversal
? Low input bias current: 1 pA
? Low supply current: 2 mA
? Unity-gain stable
