50MHz, Low Distortion,RRIO, Single Supply Operational Amplifiers,SGM8965-Replace-AD8656.
SGM8965A-2
SGM8965A-2.pdf
SGM8965A-2.pdfFEATURES
? Gain Bandwidth: 50MHz
? High CMRR: 94dB (TYP)
? Rail-to-Rail Input and Output
? Low Noise: 5.5nV/ Hz at 100kHz
? Slew Rate: 30V/μs
? High Precision:
Low Offset: 50μV (TYP), 280μV (MAX)
Low Input Bias Current: 1pA (TYP)
? Unity-Gain Stable
? 2.2V to 5.5V Operation Voltage Range
? -40℃ to +125℃ Operating Temperature Range
? Small Packaging:
SGM8965A-1 Available in Green SOT-23-5 and
SOIC-8 Packages
SGM8965A-2 Available in Green SOIC-8 and
MSOP-8 Packages

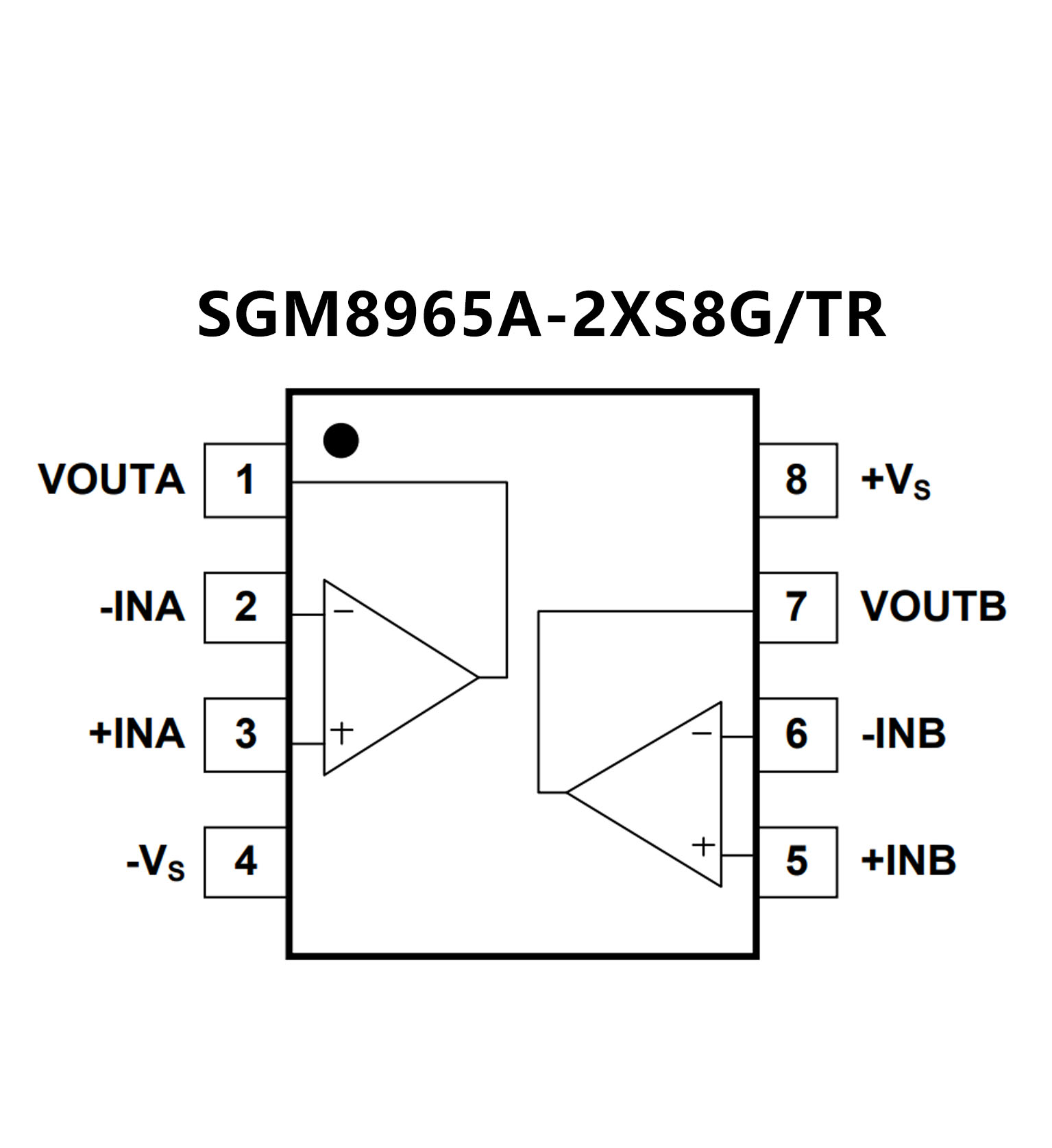

PIN CONFIGUTION
優勢替代
FEATURES
? Low noise: 2.7 nV/√Hz at f = 10 kHz
? Low offset voltage: 250 μV max over VCM
? Offset voltage drift: 0.4 μV/°C typ and 2.3 μV/°C max
? Bandwidth: 28 MHz
? Rail-to-rail input/output
? Unity gain stable
? 2.7 V to 5.5 V operation ?40°C to +125°C operation
? Qualified for automotive applications

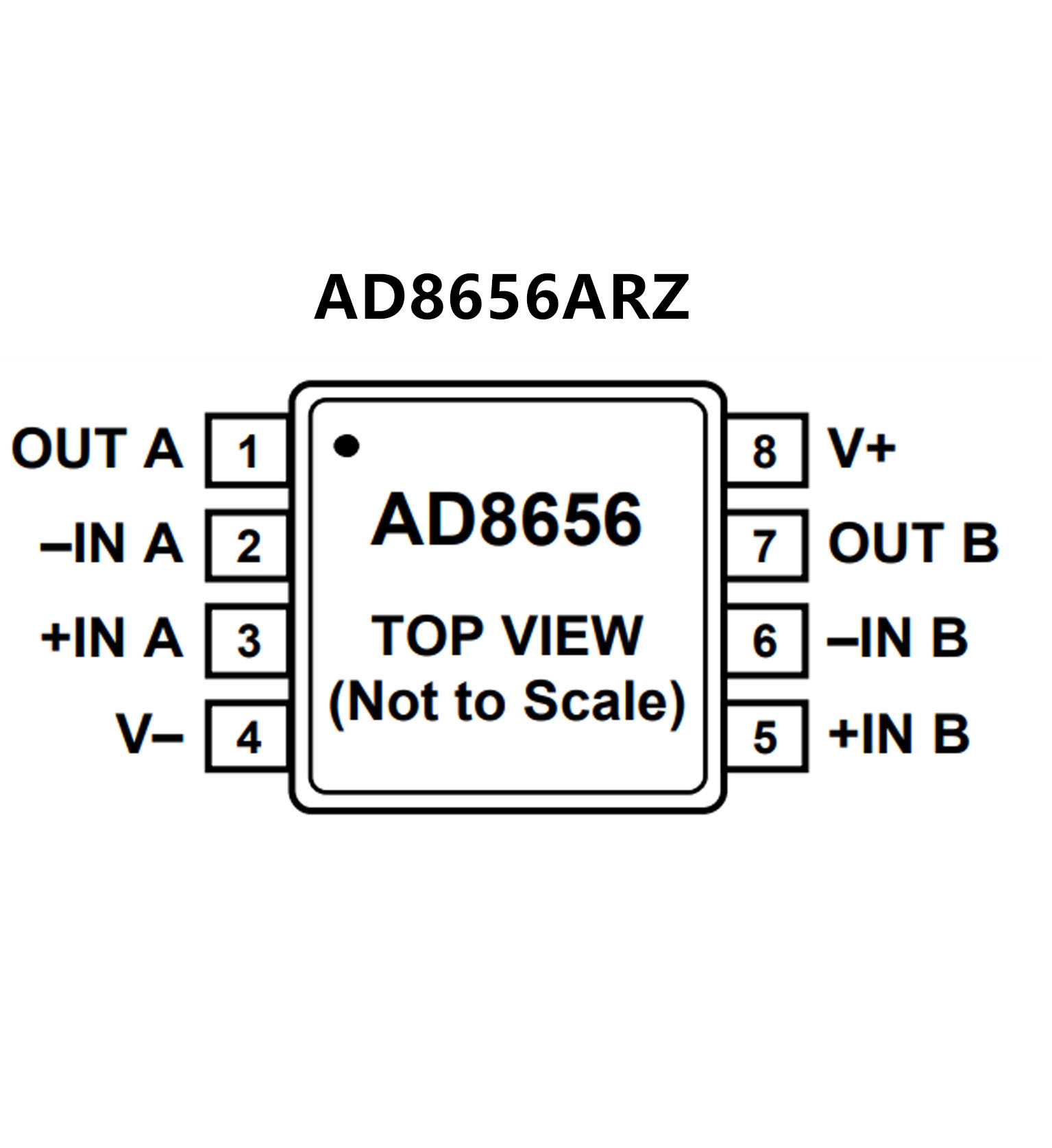

PIN CONFIGUTION
