Low VOS,Low Noise, High PrecisionZero-Drift Operational Amplifiers, SGM8959-1 P2P OPA376.
SGM8959-1
SGM8959-1.pdf
SGM8959-1.pdfFEATURES
? Low Offset Voltage: 10μV (MAX)
? Input Voltage Noise: 8nV/zΗ
? Low 0.1Hz to 10Hz Noise: 0.2μVPP
? Quiescent Current: 380μA/Amplifier (TYP)
? Integrated EMI Filter
? Single or Dual Supply Operation
? Supply Voltage Range: 1.8V to 5.5V
? Rail-to-Rail Input and Output
? Gain-Bandwidth: 3.9MHz
? Slew Rate : 1.0V/μs
? -40℃ to +125℃ Operating Temperature Range
? Small Packaging:
SGM8959-1 Available in Green SOT-23-5, SC70-5
and SOIC-8 Packages
SGM8959-2 Available in Green SOIC-8 and
TDFN-3×3-8L Packages

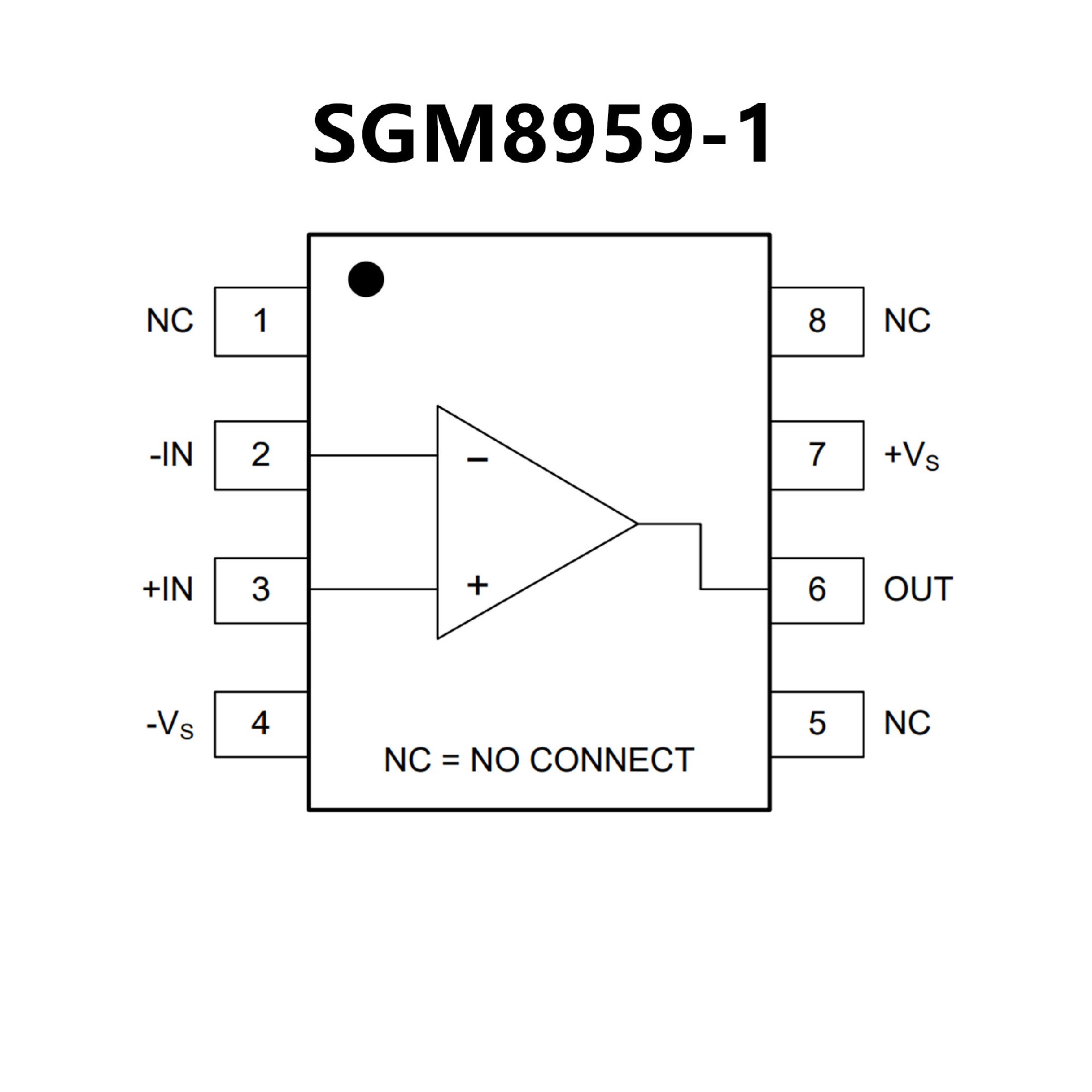

PIN CONFIGUTION
優勢替代
FEATURES
? Low Noise: 7.5 nV/√Hz at 1 kHz
? 0.1 Hz to 10 Hz Noise: 0.8 μV
? Low Offset Voltage: 5 μV (typ)
? Rail-to-Rail Input and Output
? Single-Supply Operation
? Supply Voltage: 2.2 V to 5.5 V
? Space-Saving Packages:
– SC70, SOT-23, DSBGA, VSSOP, TSSOP

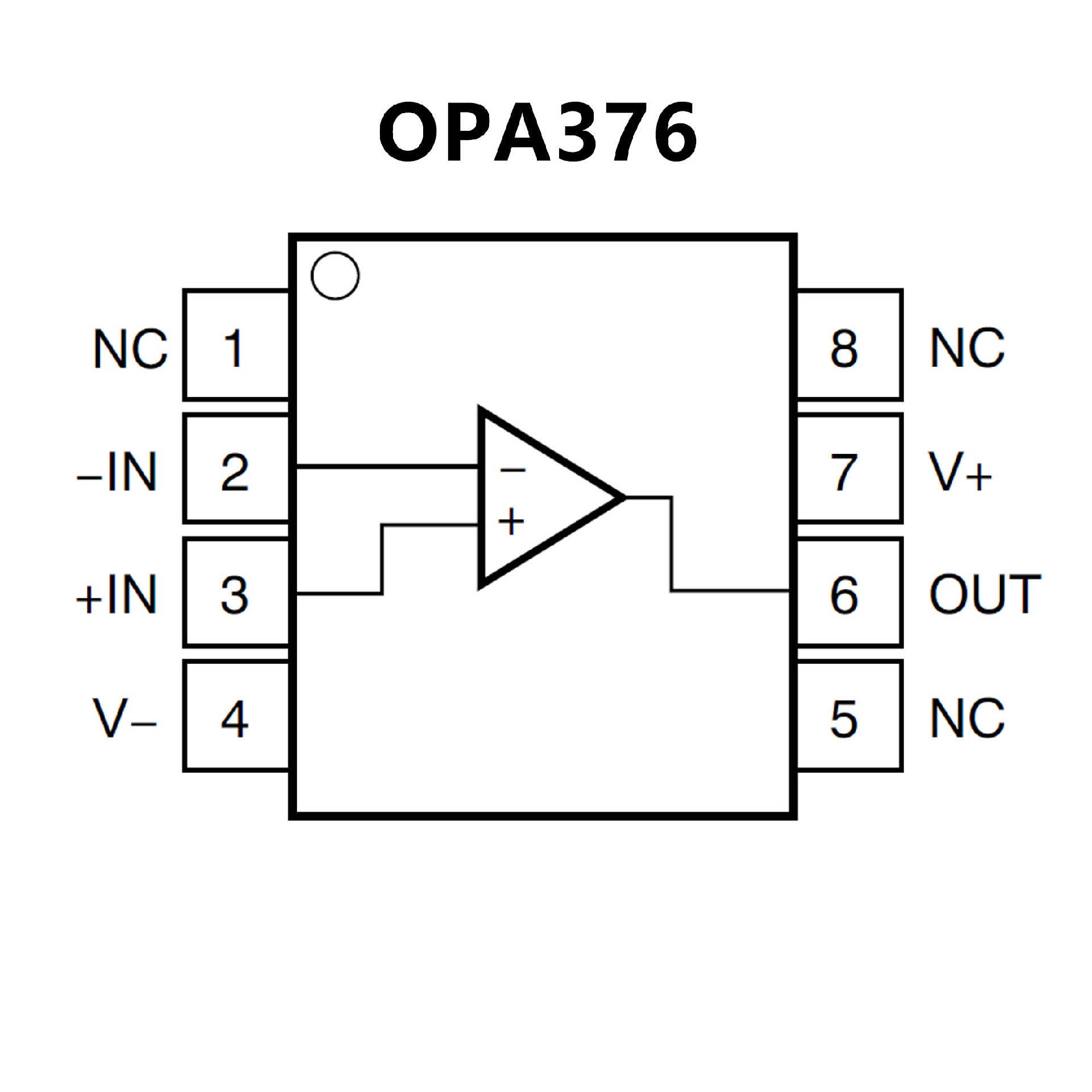

PIN CONFIGUTION
