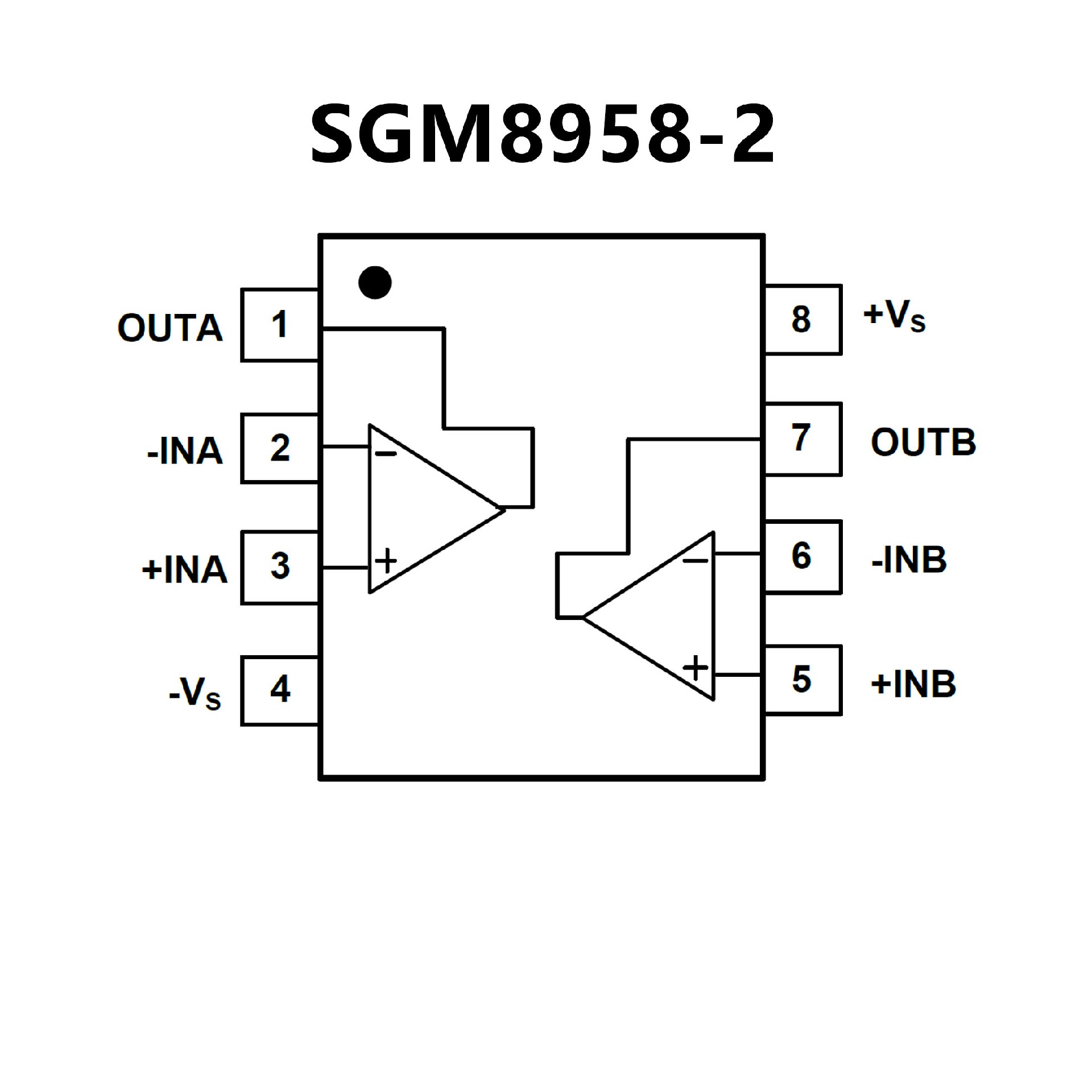

SGM8958-2.pdf? Low Offset Voltage: 10μV (MAX)
? Input Voltage Noise: 12nV/zΗ
? Low 0.1Hz to 10Hz Noise: 0.3μVPP
? Quiescent Current: 165μA/Amplifier (TYP)
? Integrated EMI Filter
? Single or Dual Supply Operation
? Supply Voltage Range: 1.8V to 5.5V
? Rail-to-Rail Input and Output
? Gain-Bandwidth Product: 1.8MHz
? Slew Rate : 0.7V/μs
? -40℃ to +125℃ Operating Temperature Range
? Small Packaging:
SGM8958-1 Available in Green SOT-23-5,
SC70-5and SOIC-8 Packages
SGM8958-2 Available in Green
SOIC-8 andTDFN-3×3-8L Packages

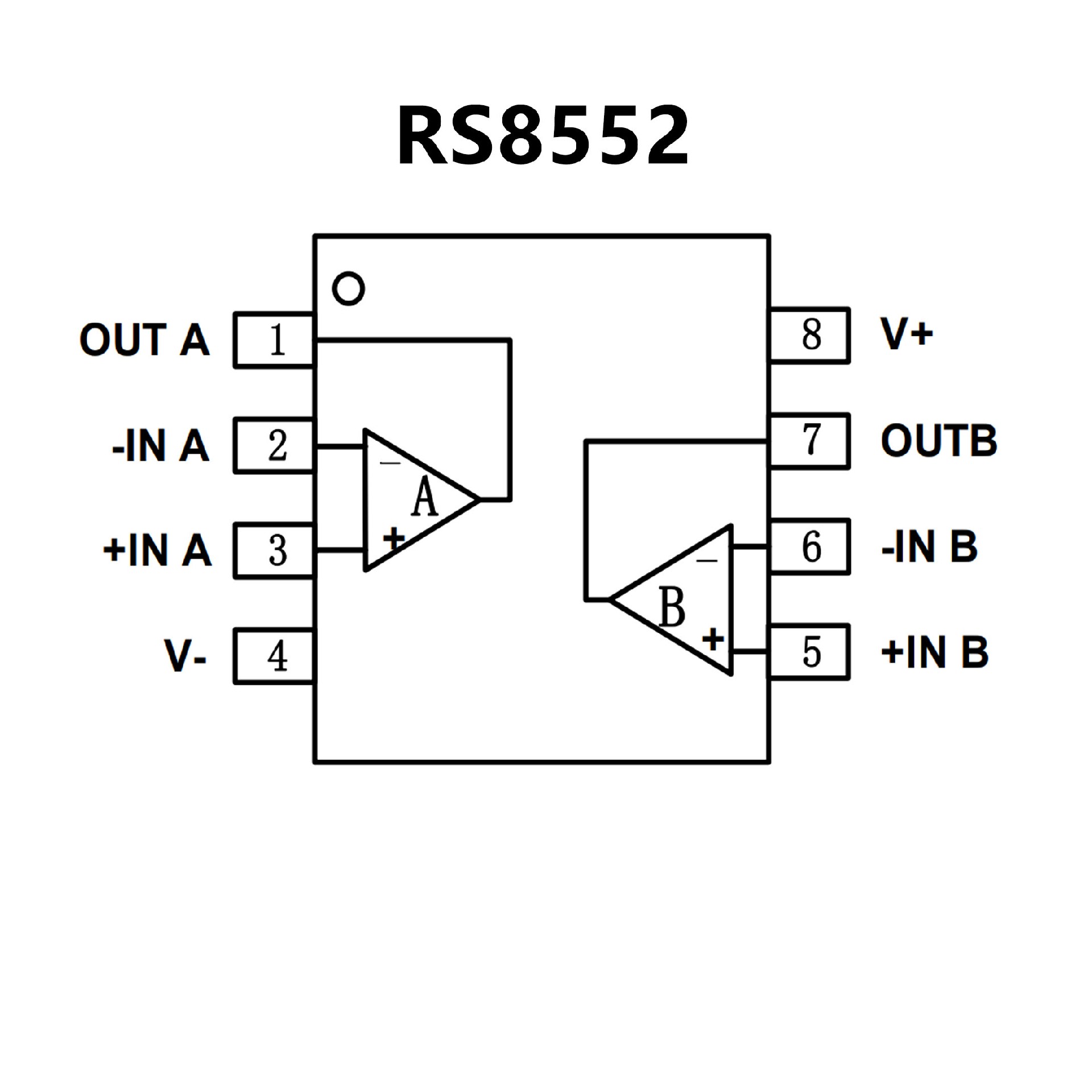

? Low Offset Voltage: 1uV
? Input Offset Drift: 0.005μV/°C
? High Gain Bandwidth Product: 4.5MHz
? Rail-to-Rail Input and Output
? High Gain, CMRR, PSRR:130dB
? High Slew Rate: 2.7V/μs
? Low Noise: 0.75uVp-p (0.01~10Hz)
? Low Power Consumption: 640μA /op amp
? Overload Recovery Time:1us
? Low Supply Voltage: +2.7 V to +5.5 V
? No External Capacitors Required
? Extended Temperature: -40°C to +125°C
