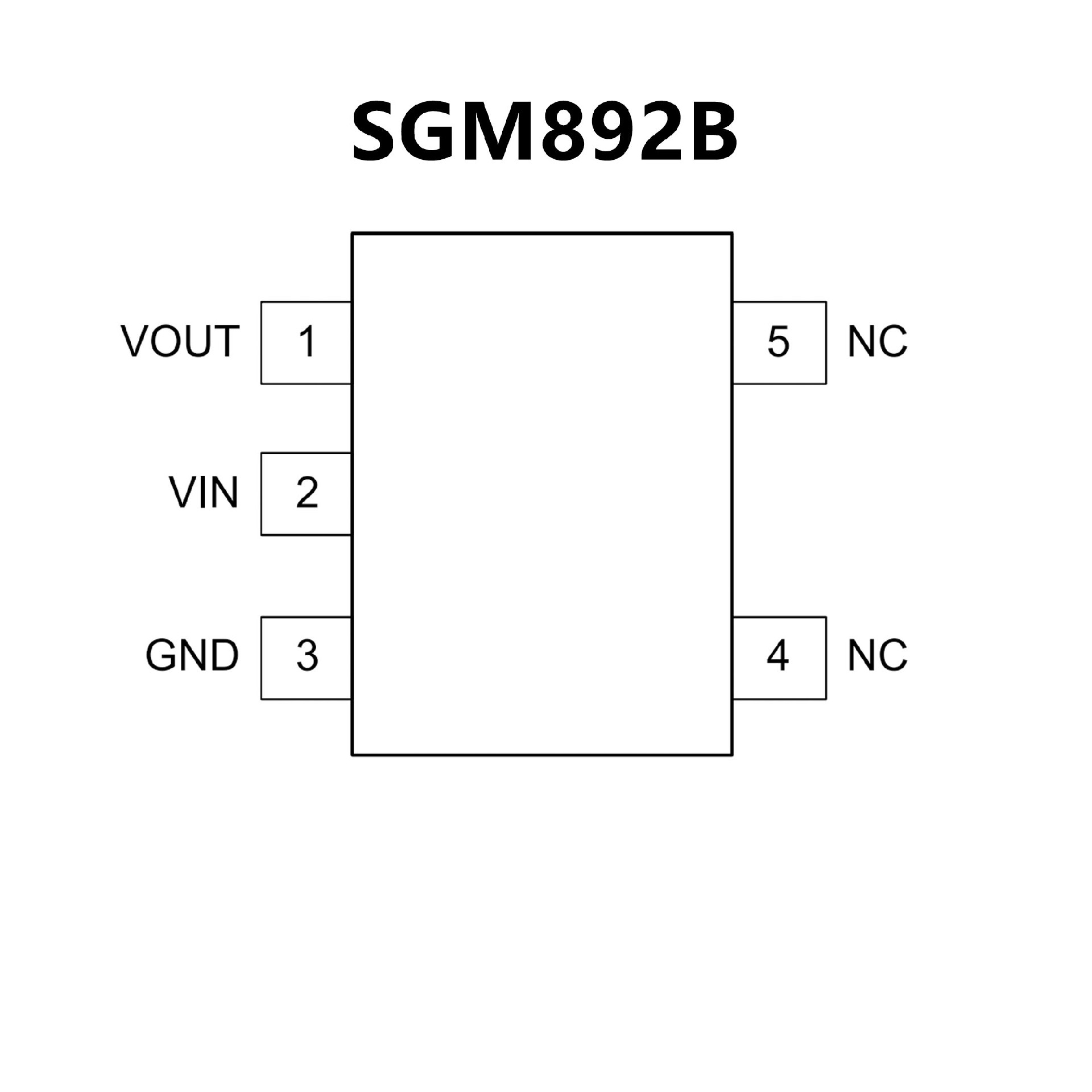

SGM892B.pdf? High Accuracy Detection: ±1% (TYP)
? Low Power Consumption: 0.4μA (TYP) at VIN = 1V
? Detection Voltage Range: 1V to 5V (0.1V Increments)
? Operating Voltage Range: 1V to 6V
? Detection Voltage Temperature Coefficient:
±40ppm/℃ (TYP)
? Manual-Reset Input (SGM893B Only)
? N-Channel Open-Drain Output
? -40℃ to +125℃ Operating Temperature Range
? Small Packaging:
SGM892B Available in Green SOT-23-5,
SOT-23-3 and UTDFN-1×1-4L Packages
SGM893B Available in Green
SOT-23-5 and UTDFN-1×1-4L Packages

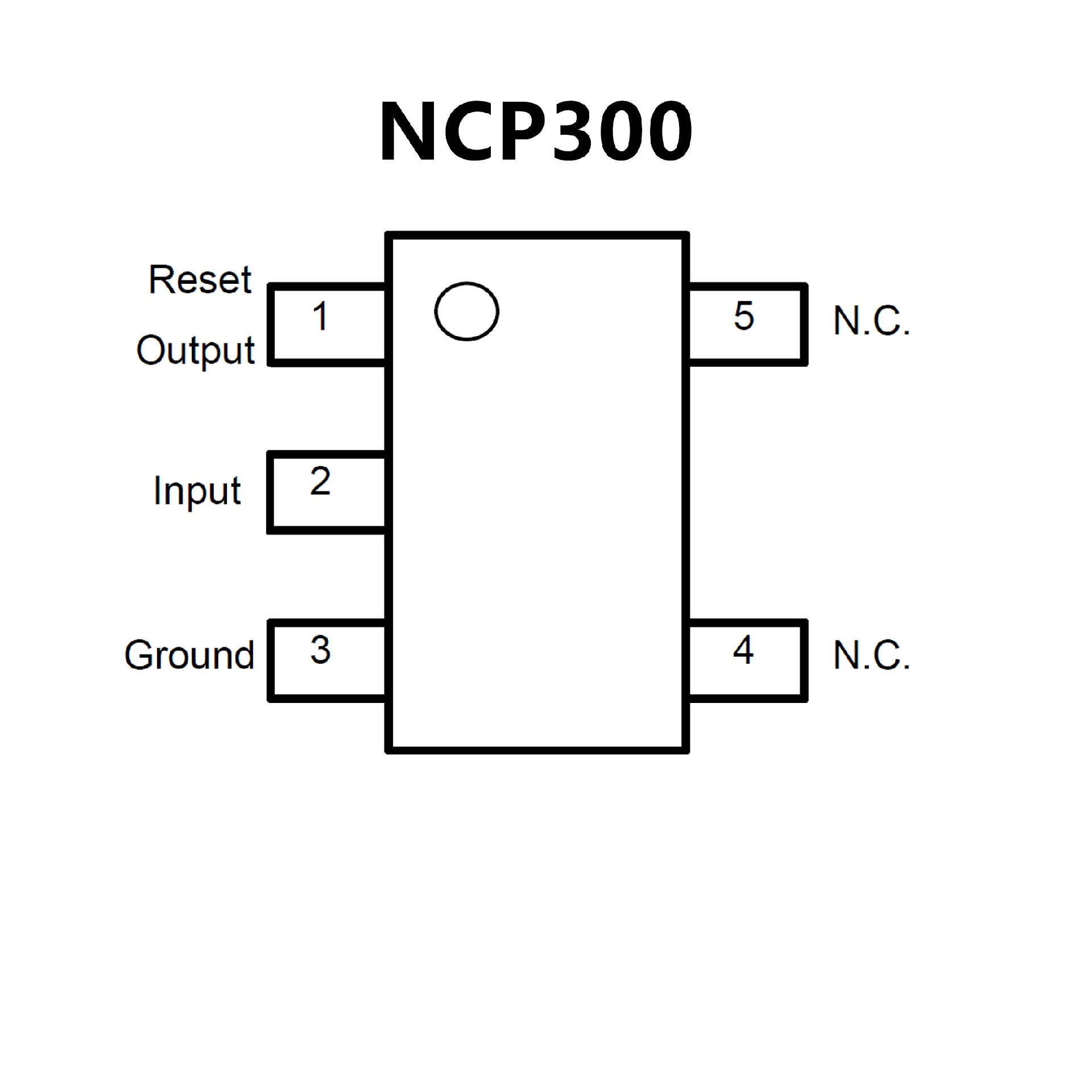

? Quiescent Current of 0.5μA Typical
? High Accuracy Undervoltage Threshold of 2.0%
? Wide Operating Voltage Range of 0.8 V to 10 V
? Complementary or Open Drain Reset Output
? Active Low or Active High Reset Output
? Specified Over the ?40°C to +125°C Temperature Range
(Except for Voltage Options from 0.9 to 1.1 V)
? NCV Prefix for Automotive and Other Applications
Requiring Unique Site and Control Change
Requirements; AEC?Q100 Qualified and PPAP Capable
? These Devices are Pb?Free and are RoHS Compliant
