SGM892B-2.7.pdf? High Accuracy Detection: ±1% (TYP)
? Low Power Consumption: 0.4μA (TYP) at VIN = 1V
? Detection Voltage Range: 1V to 5V (0.1V Increments)
? Operating Voltage Range: 1V to 6V
? Detection Voltage Temperature
Coefficient:±40ppm/℃ (TYP)
? Manual-Reset Input (SGM893B Only)
? N-Channel Open-Drain Output
? -40℃ to +125℃ Operating Temperature Range
? Small Packaging:

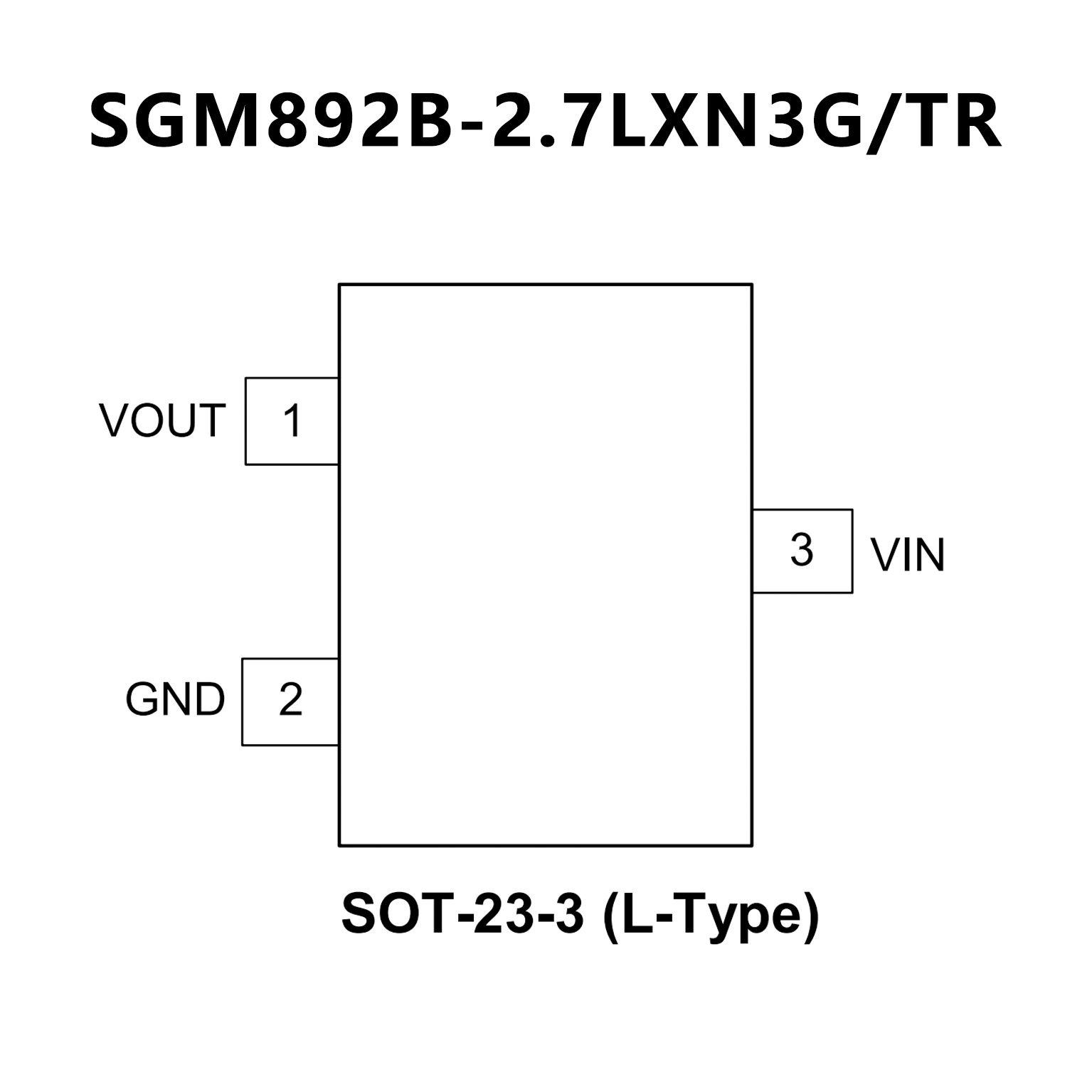

SGM892B Available in Green SOT-23-5, SOT-23-3a
nd UTDFN-1×1-4L Packages
SGM893B Available in Green SOT-23-5
andUTDFN-1×1-4L Packages
? High-precision detection Voltage:±2%
? Detection Voltage：0.9V~6.0V (in 0.1Vsteps)
? Precise hysteresis：4% typ.
? Operating Voltage range：0.7V~10V
? Ultra-low current consumption：
500nAtyp. (at VDD＝3.0V)
? Two Output Forms ：CMOS(Active Low)
and N-channel open-drain(Active Low)
