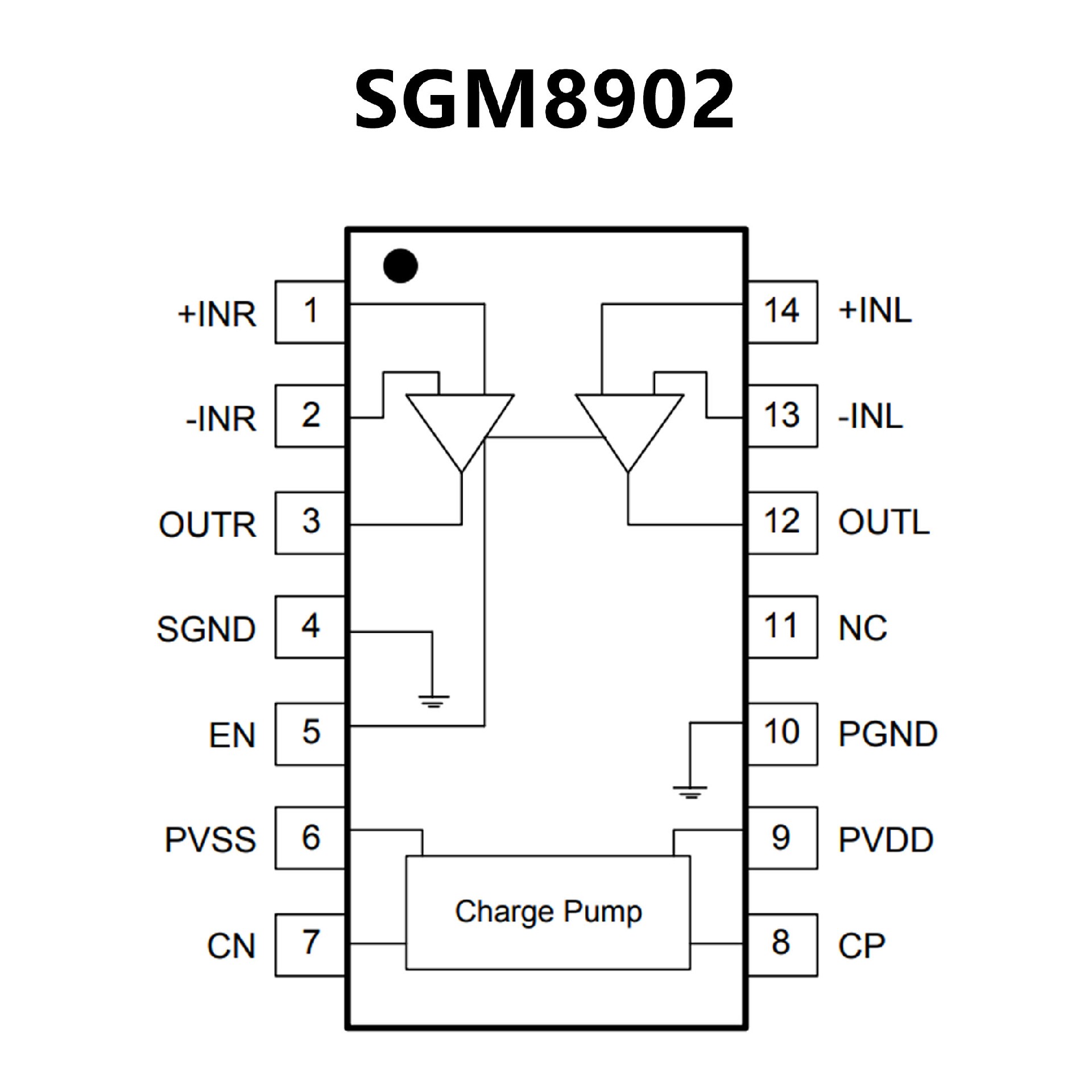

SGM8902.pdf? Capless Structure
Eliminates Pop/Clicks
Eliminates Output DC-Blocking Capacitors
Provides Flat Frequency Response
from DC to 20kHz
? Low Noise and THD
Typical SNR = 114dBT
ypical VN = 5.5μVrmsTypical T
HD+N = 0.001% (f = 1kHz)
? 2Vrms Output Voltage into 2.5k?
Load with 3.3VSupply Voltage
? 3Vrms Output Voltage into 2.5k?
Load with 5VSupply Voltage
? Differential Input
? -40℃ to +85℃ Operating Temperature Range
? Available in the Green TSSOP-14 Package

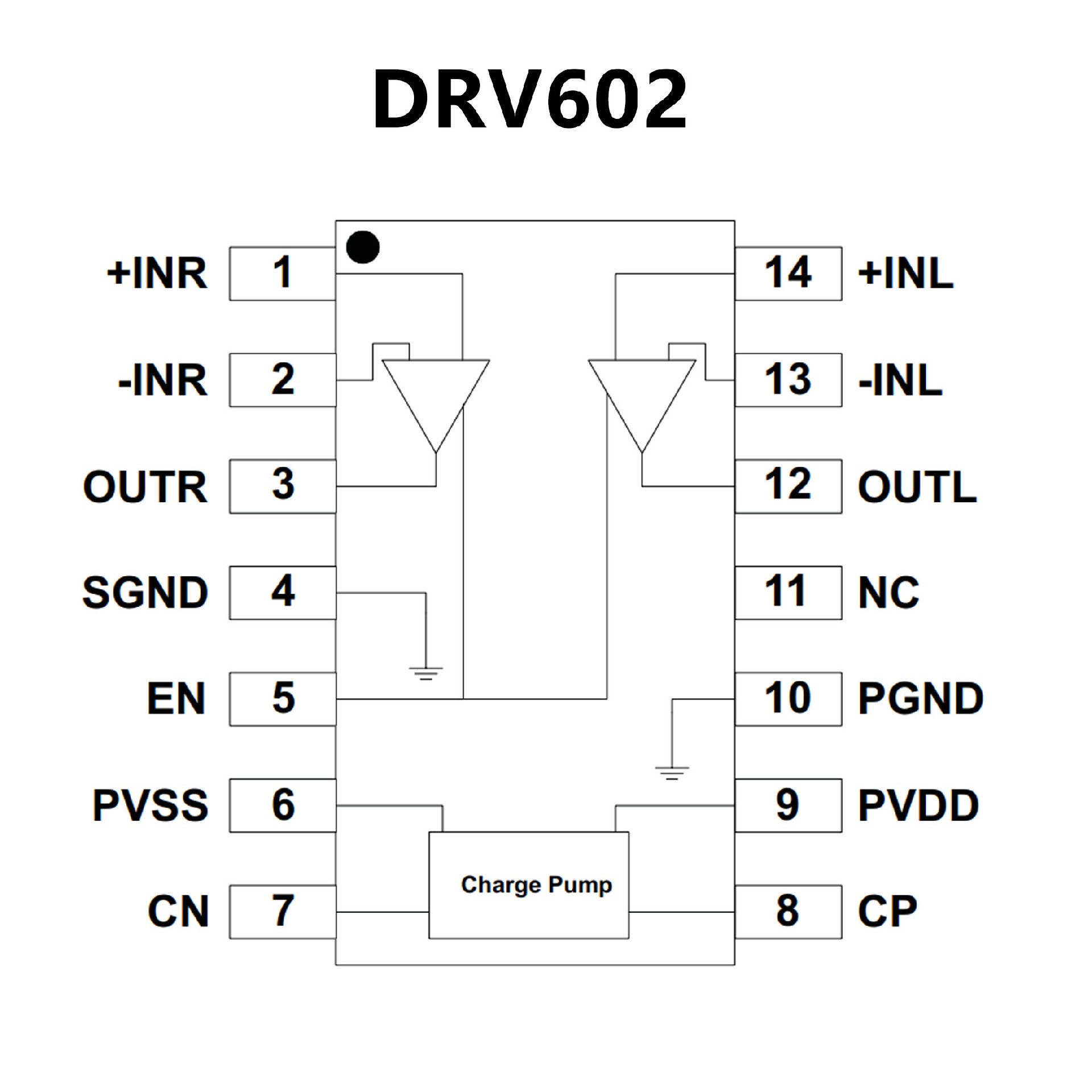

? DirectPath?
Eliminates Pop/Clicks
Eliminates Output DC-Blocking Capacitors
Provides Flat Frequency Response 20Hz–20kHz
SNR > 102 dB
THD+N < 0.05% 20 Hz–20 kHz
? Output Voltage into 2.5-k? Load
2 Vrms with 3.3-V Supply Voltage
3 Vrms with 5-V Supply Voltage
? 3Vrms Output Voltage into 2.5 k?
Load With 5V Supply Voltage
? Differential Input
