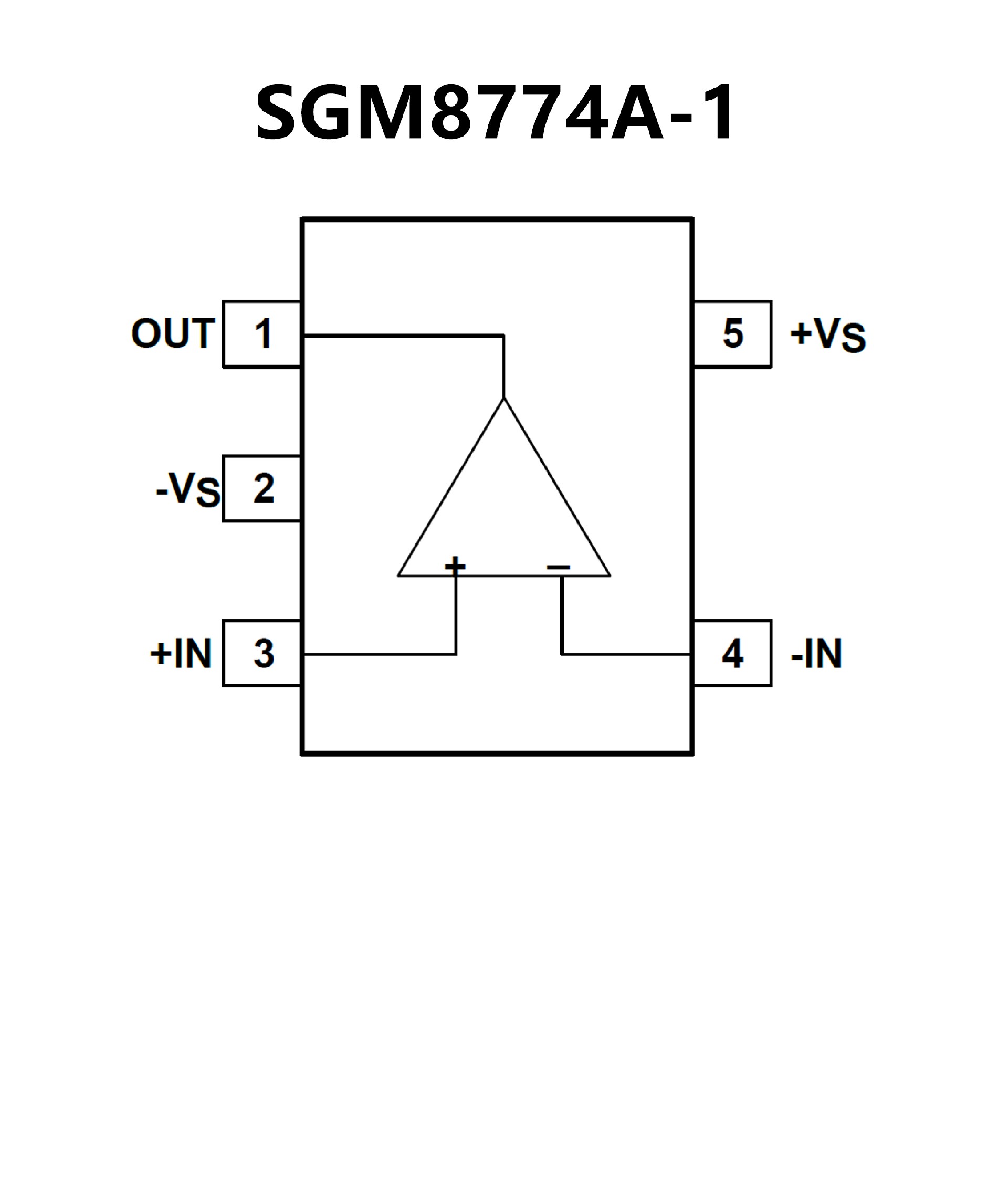

SGM8774A-1XN5G.pdf? Wide Supply Ranges
Single Supply: 2.8V to 36V
Dual Supplies: ±1.4V to ±18V
? Low Supply Current: 240μA (TYP)
? Low Input Offset Voltage: 2.8mV (MAX)
? Low Input Bias Current: ±20pA (TYP)
? Open-Drain Output Structure
? Supports CMOS or TTL Logic
? -40℃ to +125℃ Operating Temperature Range
? Available in a Green SOT-23-5 Package
? Low Supply Current ... 560 nA/Per Channel
? Input Common-Mode Range Exceeds the
Rails ... 0.1 V to VCC + 5 V
? Supply Voltage Range ... 2.5 V to 16 V
? Reverse Battery Protection Up to 18 V
? Push-Pull CMOS Output Stage
? Specified Temperature Range
0°C to 70°C – Commercial Grade
–40°C to 125°C – Industrial Grade
? Ultra-Small Packaging

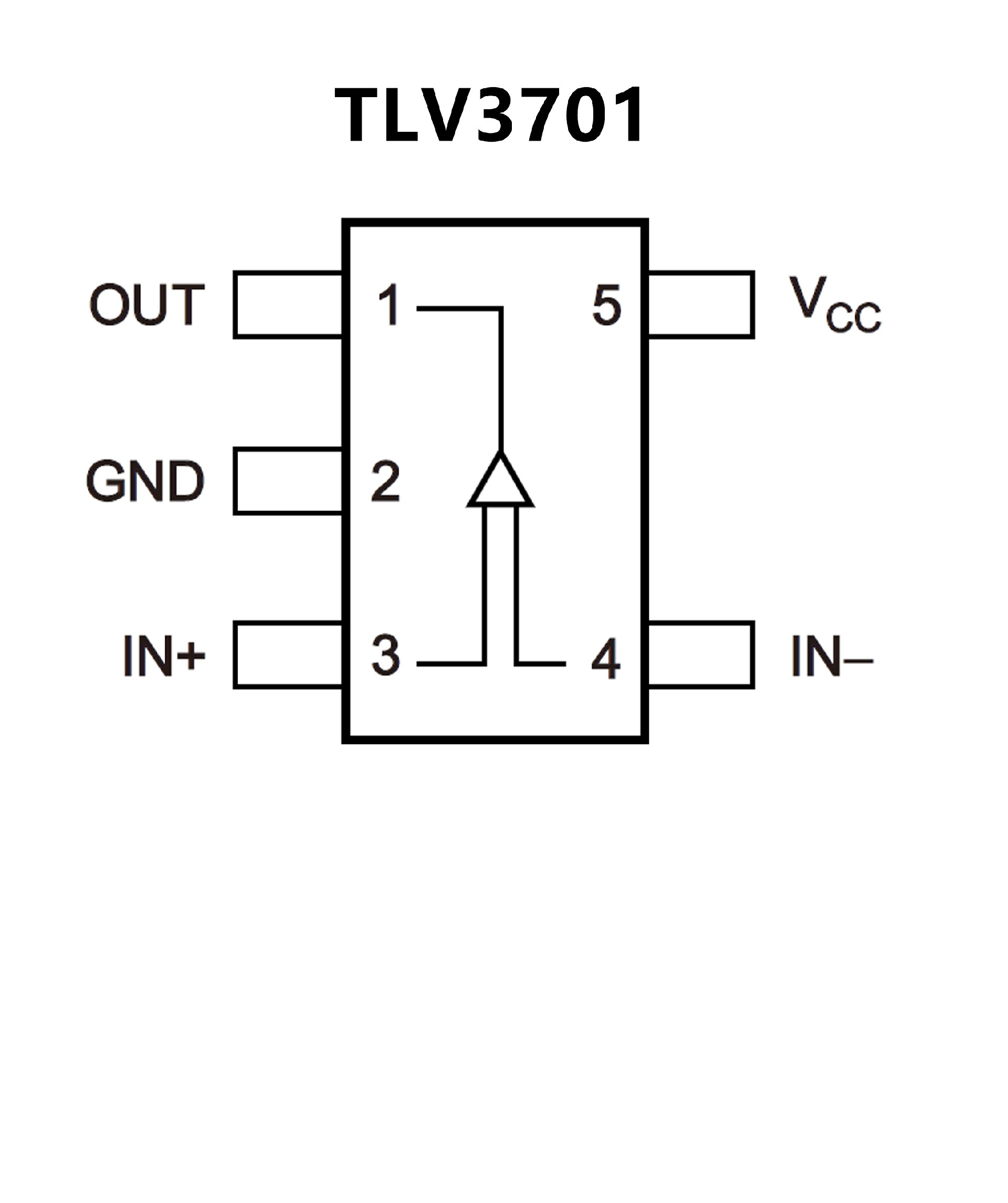

5-Pin SOT-23 (TLV3701)
8-Pin MSOP (TLV3702)
? Universal Op-Amp EVM (Reference
SLOU060 for More Information)
