High Voltage, High Precision, Single Comparator with Voltage Reference,SGM8771 Replace LM211DT.
SGM8771
SGM8771.pdf
SGM8771.pdfFEATURES
? Single Supply
? Wide Supply Voltage Range: 2.8V to 36V
? Internal Voltage Reference: 1.225V
? Open-Drain Output
? Low Supply Current Independent of
SupplyVoltage: 180μA (TYP)
? Low Input Offset Voltage: 2.4mV (MAX)
? Low Input Bias Current: ±20pA (TYP)
? Input Common Mode Voltage
Range IncludesGround
? Differential Input Voltage Range Equal
toMaximum-Rated Supply Voltage: ±36V
? Low Output Saturation Voltage
? Output Compatible with TTL and CMOS
? -40℃ to +125℃ Operating Temperature Range
? Available in Green SOIC-8
and TDFN-3×3-8LPackages

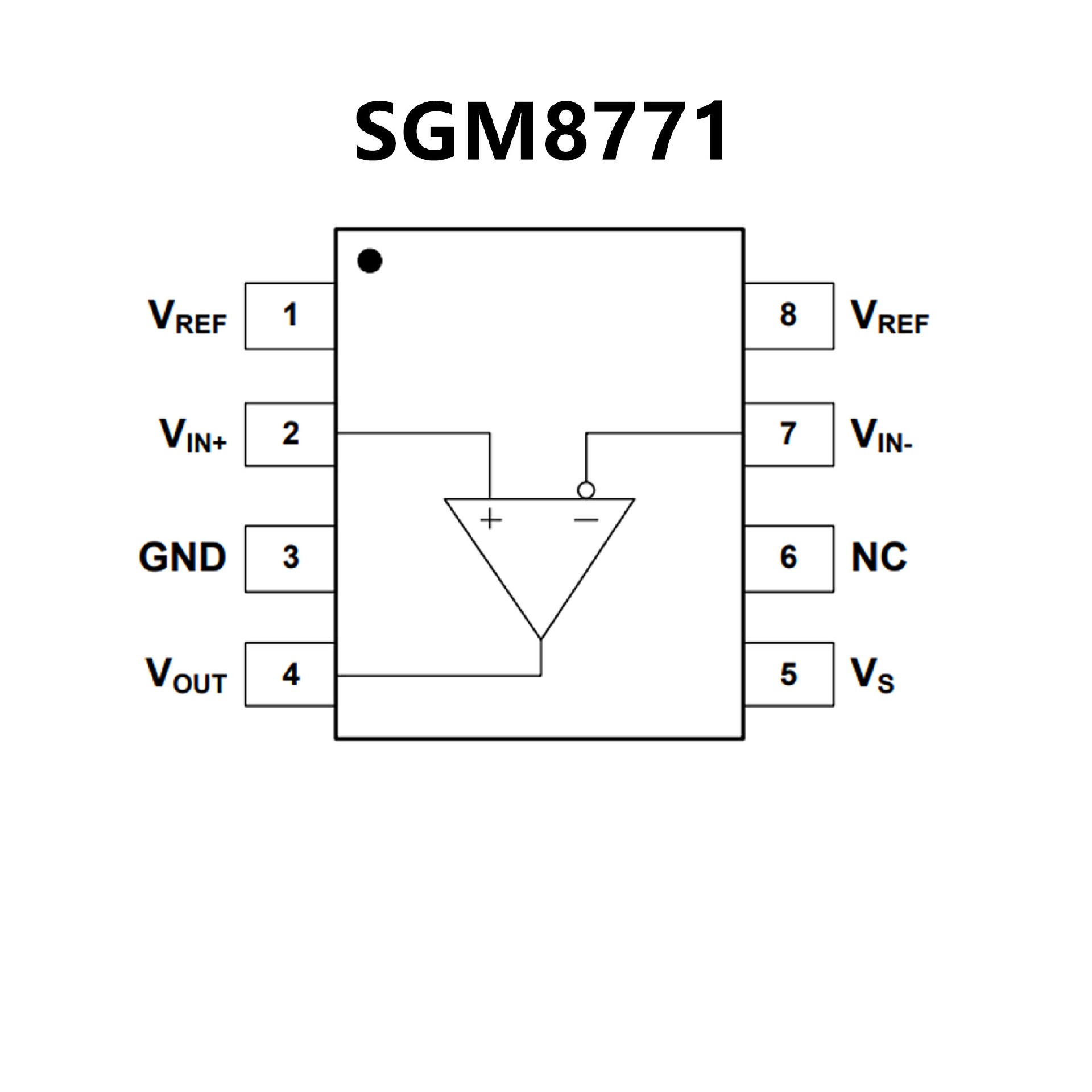

PIN CONFIGUTION
