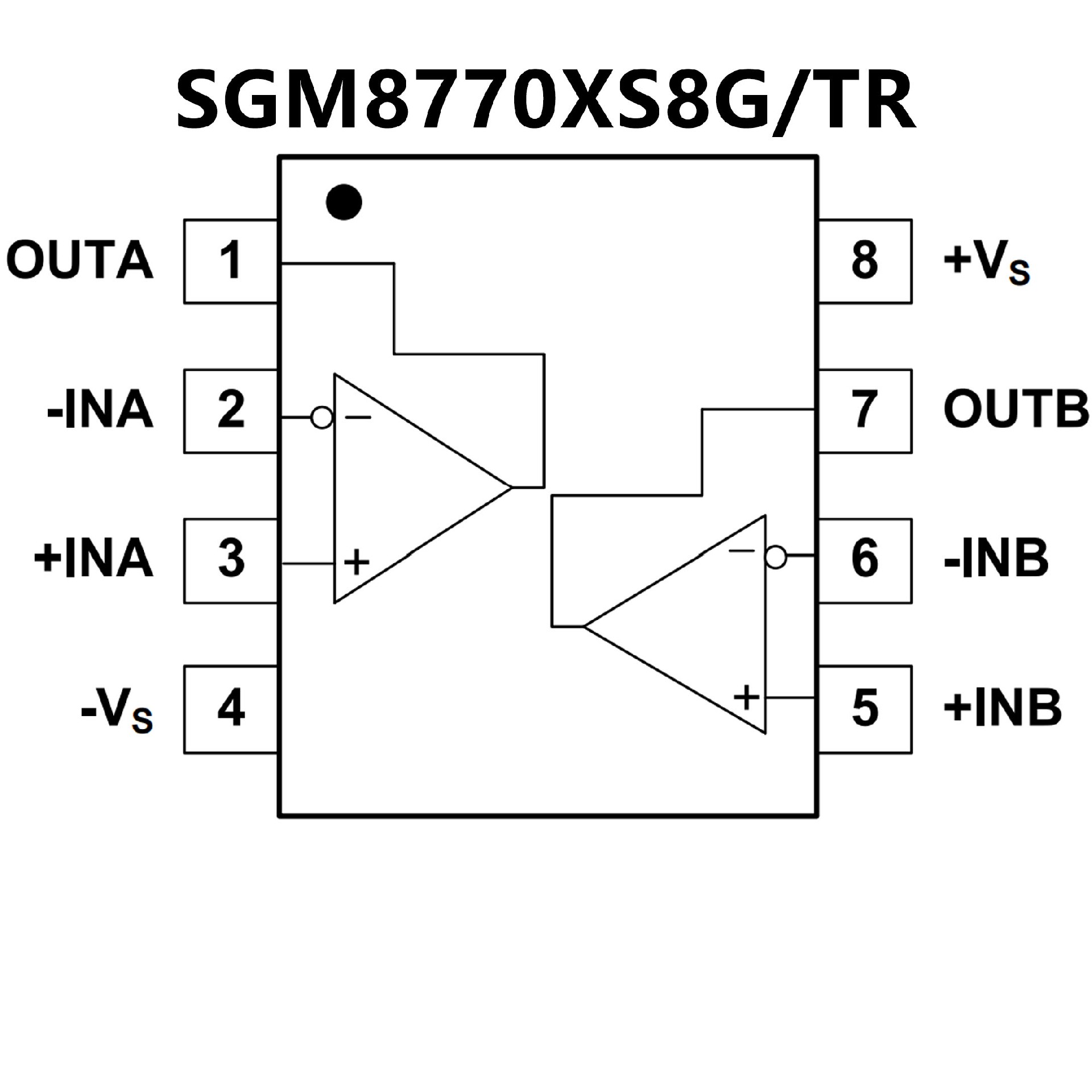

SGM8770XS8GTR.pdf? Single Supply or Dual Supplies
? Wide Supply Voltage Range: 2.8V to 36V
? Open-Drain Output
? Low Supply Current Independent
of Supply Voltage: 310μA (TYP)
? Low Input Offset Voltage: 2.4mV (MAX)
? Low Input Bias Current: ±20pA (TYP)
? Input Common Mode Voltage
Range Includes Ground
? Differential Input Voltage Range Equal to
Maximum-Rated Supply Voltage: ±36V
? Low Output Saturation Voltage
? Output Compatible with TTL and CMOS
? -40℃ to +125℃ Operating Temperature Range
? Available in Green SOIC-8 and TDFN-3×3-8L Packages
? AEC-Q100 Qualified (Note 1)

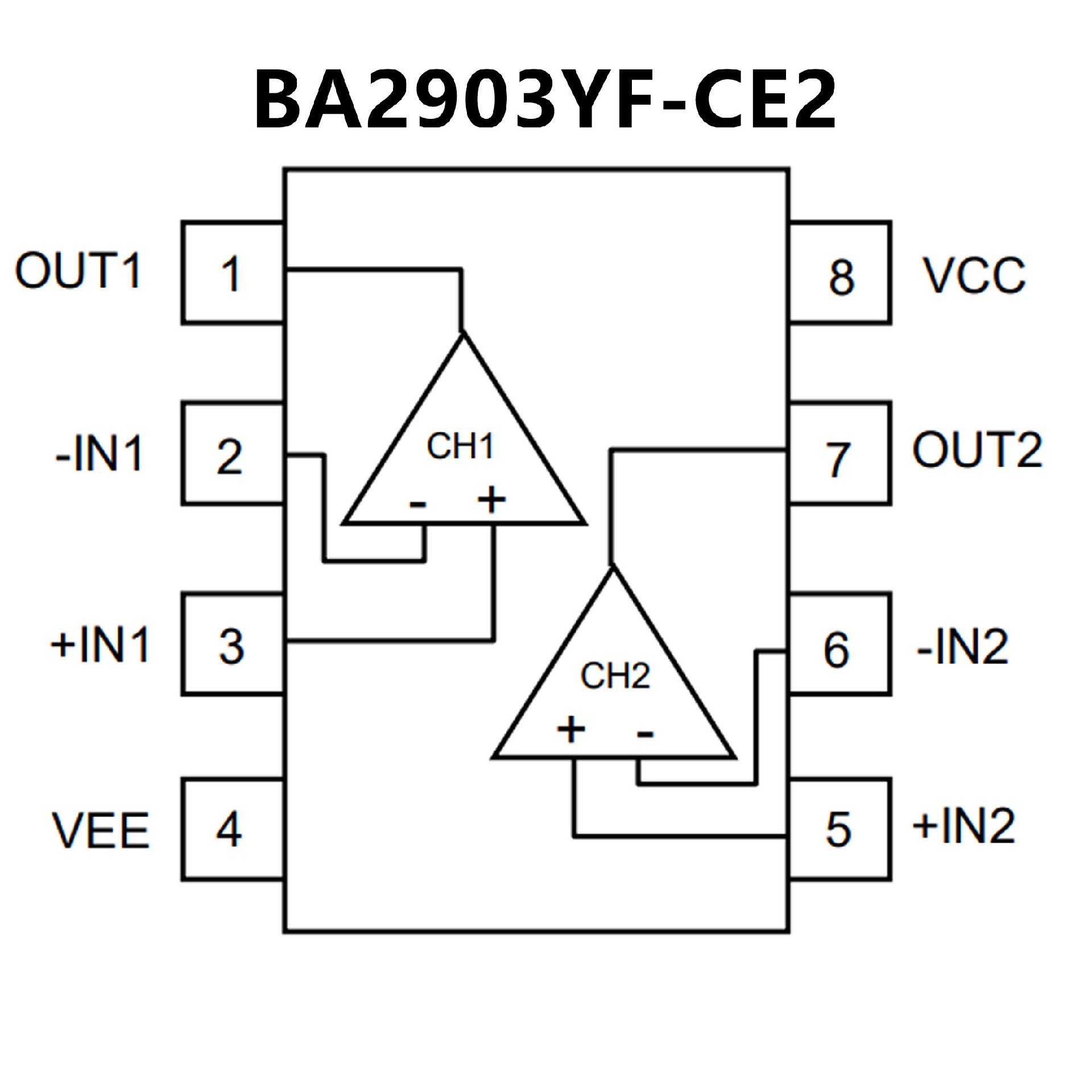

? Single or dual supply operation
? Wide operating supply voltage
? Standard comparator Pin-assignments
? Common-mode Input Voltage Rangeincludes
ground
level, allowing direct ground sensing
? Internal ESD protection circuit
? Wide temperature range
(Note1: Grade1)
