6.5ns, Rail-to-Rail I/O,High Speed Comparators, SGM8752-3 Replace TLV3501.
SGM8752-3
SGM8752-3.pdf
SGM8752-3.pdfFEATURES
? High Speed: 6.5ns Propagation Delay
? Push-Pull CMOS Output Structure
? Rail-to-Rail Input and Output
? Supply Voltage: 2.7V to 5.5V
? Shutdown (SGM8752-3 Only)
? Low Quiescent Current: 1.8mA/Channel
? -40℃ to +125℃ Operating Temperature Range
? Small Packaging:
SGM8752-1 Available in a Green SOT-23-5 Package
SGM8752-2 Available in Green SOT-23-8 and
SOIC-8 Packages
SGM8752-3 Available in a Green SOT-23-6 Package

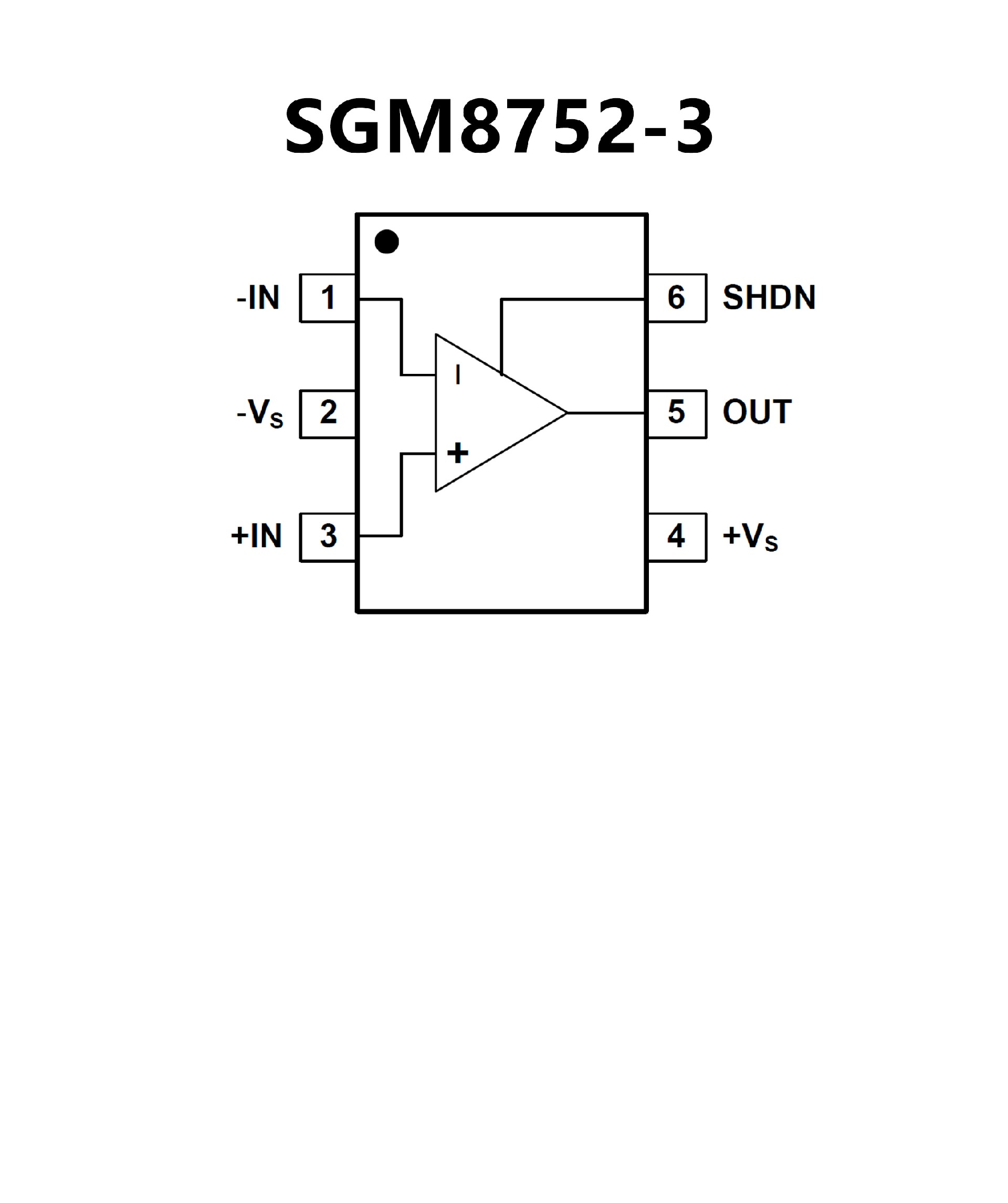

PIN CONFIGUTION
優(yōu)勢替代
FEATURES
? High Speed: 4.5 ns
? Rail-to-Rail I/O
? Supply Voltage: 2.7 V to 5.5 V
? Push-Pull CMOS Output Stage
? Shutdown (TLV3501 Only)
? Micro Packages: 6-Pin SOT-23 (Single), 8-Pin
SOT-23 (Dual)
? Low Supply Current: 3.2 mA

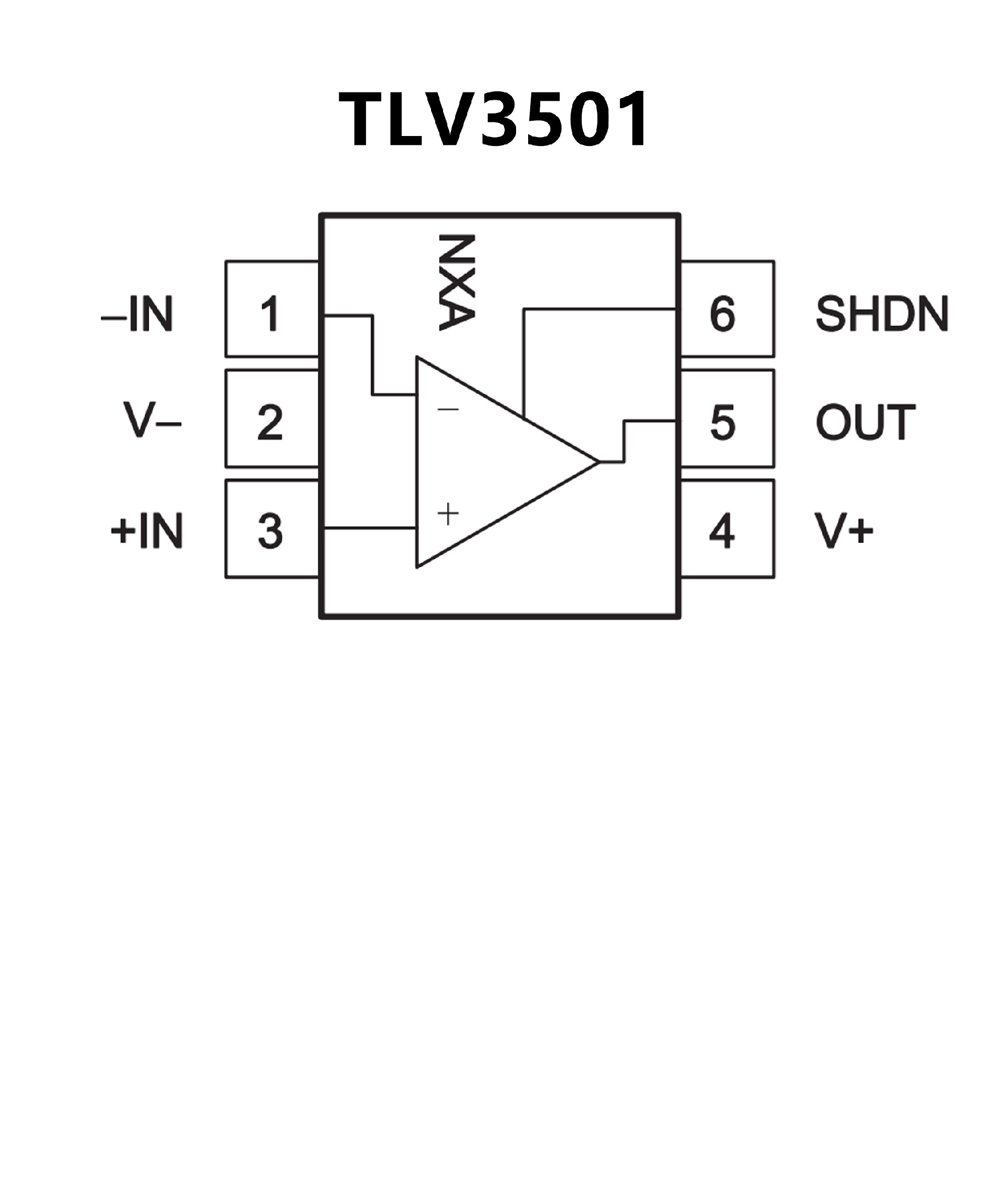

PIN CONFIGUTION
