SGM8752-1.pdf? High Speed: 6.5ns Propagation Delay
? Push-Pull CMOS Output Structure
? Rail-to-Rail Input and Output
? Supply Voltage: 2.7V to 5.5V
? Shutdown (SGM8752-3 Only)
? Low Quiescent Current: 1.8mA/Channel
? -40℃ to +125℃ Operating Temperature Range
? Small Packaging:
SGM8752-1 Available in a Green SOT-23-5 Package
SGM8752-2 Available in Green SOT-23-8
andSOIC-8 Packages
SGM8752-3 Available in a Green SOT-23-6 Package
? Low Quiescent Current: 600 nA/Comparator (typ.)
? Rail-to-Rail Input: VSS - 0.3V to VDD + 0.3V
? CMOS/TTL-Compatible Output
? Propagation Delay: 4 μs
(typical, 100 mV Overdrive)
? Wide Supply Voltage Range: 1.6V to 5.5V
? Available in Single, Dual and Quad
? Single Available in SOT-23-5, SC-70-5 * Packages

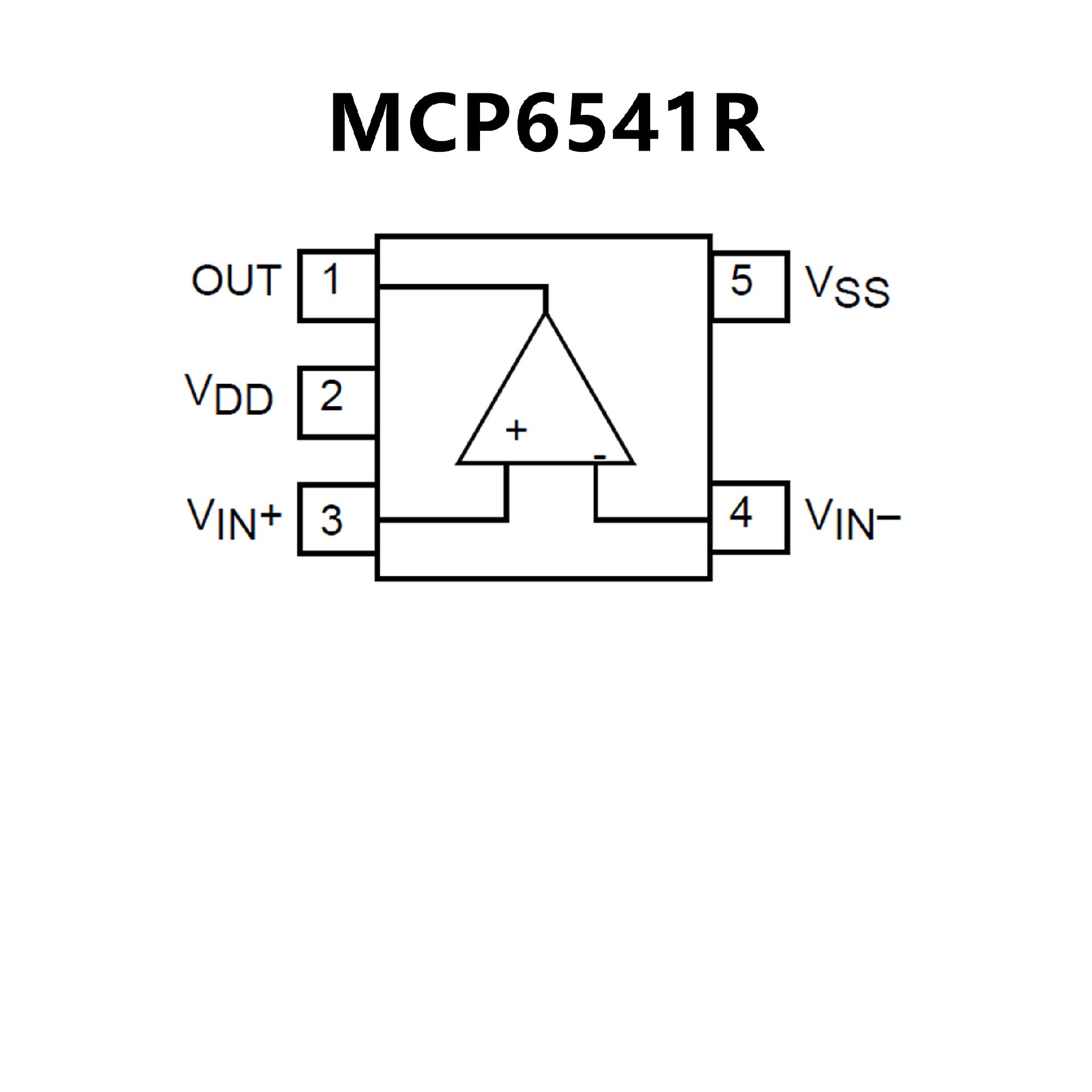

? Chip Select (CS) with MCP6543
? Low Switching Current
? Internal Hysteresis: 3.3 mV (typ.)
? Temperature Ranges:
Industrial: -40°C to +85°C
Extended: -40°C to +125°C
