SGM8750.pdf? Fast, 150ns Propagation Delay (10mV Overdrive)
? Low Power Consumption: 22μA/Channel (TYP) at VS = 3V
? Wide Supply Voltage Range: 2.7V to 5.5V
? Optimized for 3V and 5V Applications
? Open Drain Output
? Rail-to-Rail Input Voltage Range
? Low Offset Voltage: 0.8mV (TYP)
? Output Swing 185mV with 4mA Output Current
? CMOS/TTL-Compatible Output
? -40℃ to +85℃ Operating Temperature Range

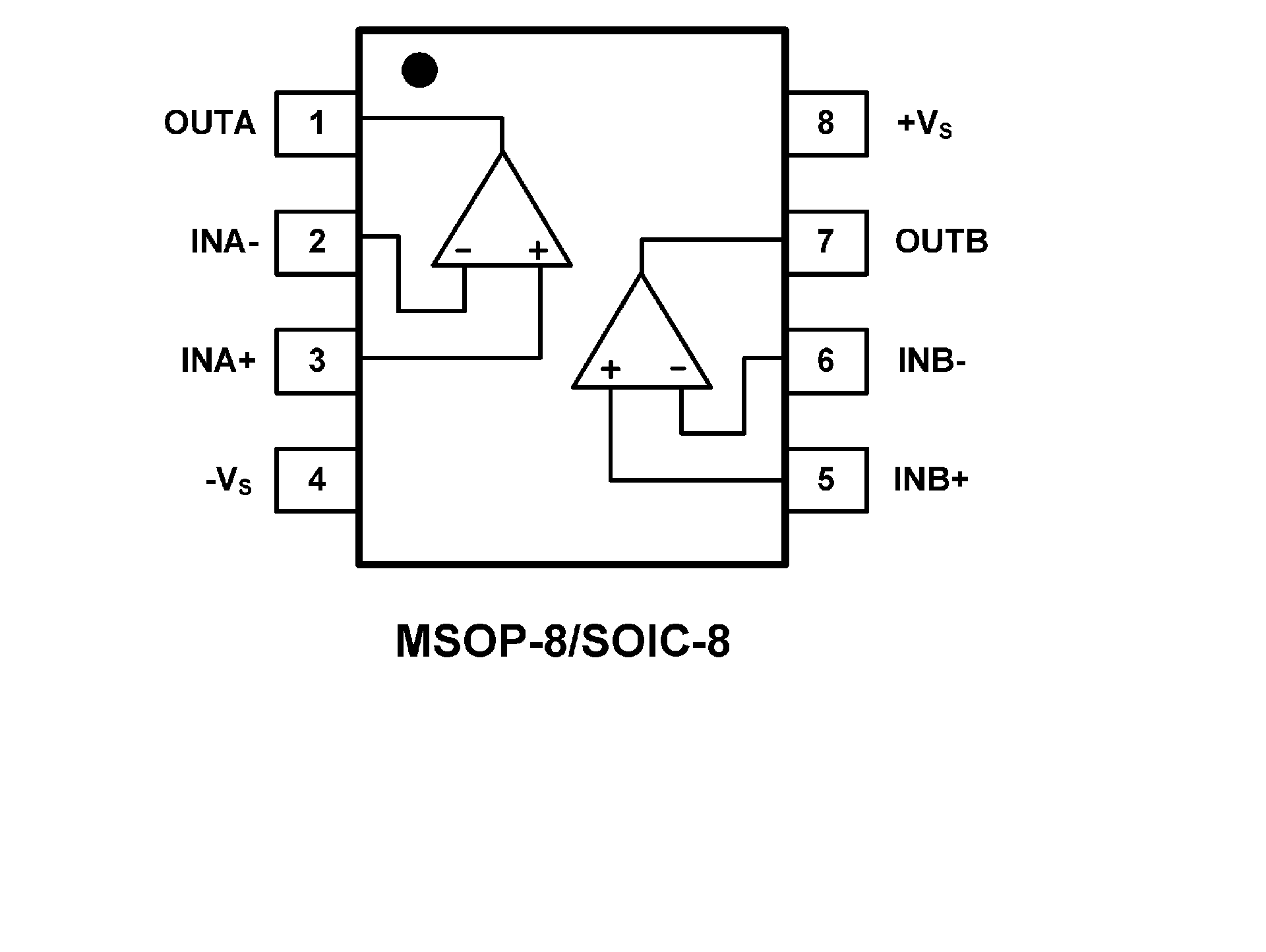

? Available in Green MSOP-8 and SOIC-8 Packages
? Guaranteed 2.7 V and 5 V Performance
? Input Common?mode Voltage Range Extends to Ground
? Open Drain Output for Wired?OR Applications
? Low Quiescent Current: 60 A/channel TYP @ 5V
? Low Saturation Voltage 200 mV TYP @ 5V
? Propagation Delay 200 ns TYP @ 5V
? NCV Prefix for Automotive and Other Applications Requiring
Unique Site and Control Change Requirements; AEC?Q100
Qualified and PPAP Capable
? These Devices are Pb?Free, Halogen Free/BFR Free and
are RoHS Compliant
