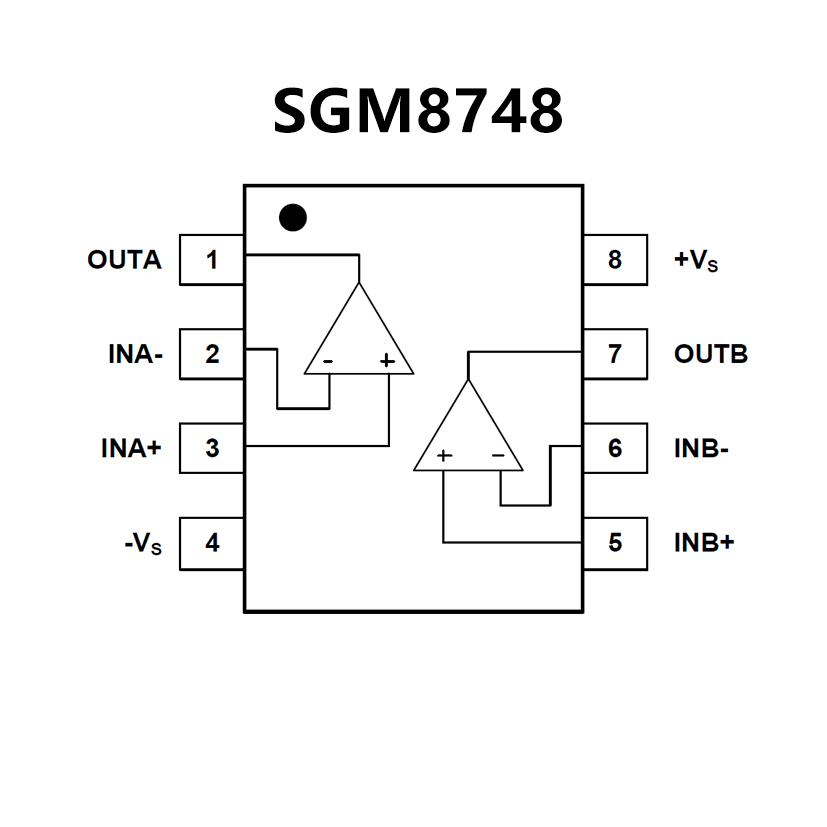

SGM8748YMS8G.pdf? Fast, 155ns Propagation Delay (10mV Overdrive)
? Low Power Consumption:
45μA (TYP) at VS = 3V
? Wide Supply Voltage Range: 2.7V to 5.5V
? Optimized for 3V and 5V Applications
? Rail-to-Rail Input Voltage Range
? Low Offset Voltage: 0.8mV (TYP)
? Internal Hysteresis for Clean Switching
? Output Swing to within 190mV from Rails with
4mA Output Current
? CMOS/TTL-Compatible Outputs
? -40℃ to +85℃ Operating Temperature Range
? Available in Green SOIC-8 and MSOP-8 Packages

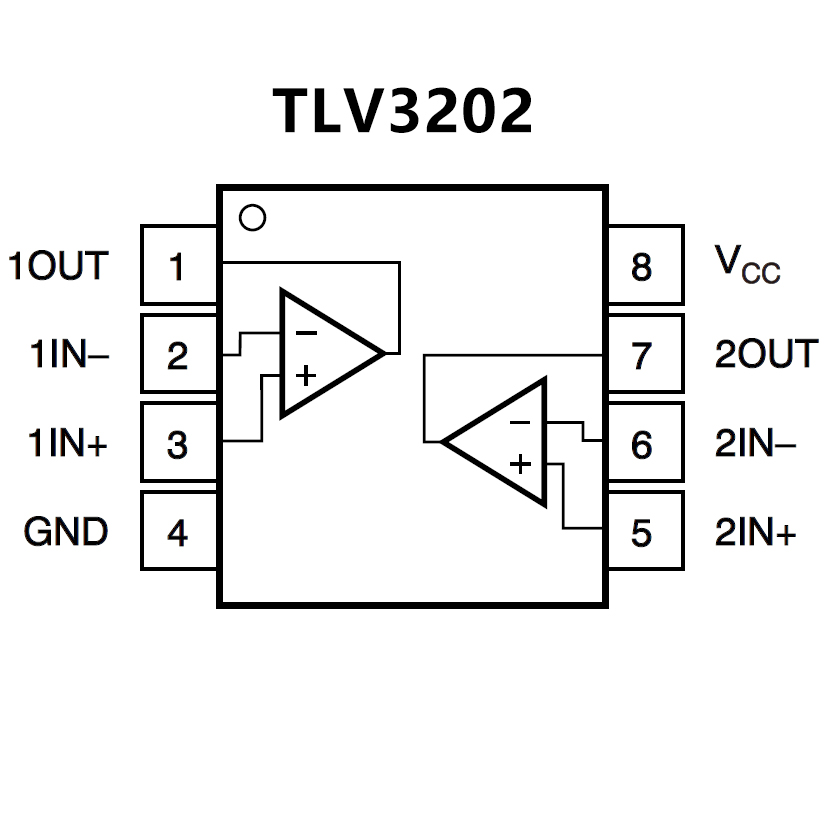

? Low Propagation Delay: 40 ns
? Low Quiescent Current:
40 μA per Channel
? Input Common-Mode Range Extends 200 mV
Beyond Either Rail
? Low Input Offset Voltage: 1 mV
? Push-Pull Outputs
? Supply Range: 2.7 V to 5.5 V
? Industrial Temperature Range:
–40°C to 125°C
? Small Packages:
5-Pin SC70, 5-Pin SOT-23, 8-Pin SOIC, 8-Pin
VSSOP
